Raspberry Pi Camera Moudule V2 樹莓派攝影模組 鏡頭模組 原廠公司貨 英國製

-24%

Raspberry Pi Camera Moudule V2 樹莓派攝影模組 鏡頭模組 原廠公司貨 英國製

NT$1,190 NT$900 未稅

Raspberry Pi Model A/B/B+/Pi2/Pi3/Pi4  皆可適用.

尚有庫存

    • 70 NT$
    • 580 NT$
  • 商品說明

商品說明

Raspberry Pi Camera Moudule V2 樹莓派 攝影模組 鏡頭模組 英國原廠公司貨 UK製

若有需要160度廣角鏡頭的可以選購自行動手拆裝。

Raspberry Pi Camera V2 高清晰度(HD)相機板可連接任何 Raspberry Pi 或計算模塊,允許您創建高清視頻和靜態照片。
它採用索尼的IMX219PQ圖像傳感器,提供高速視頻成像和高靈敏度。
Raspberry Pi相機模塊可減少圖像污染,例如固定圖案噪點和拖尾。它還具有自動控制功能,如曝光控制,白平衡和亮度檢測。

特點和好處:
高品質的圖像
高數據能力
800萬像素定焦
支持1080p,720p60和VGA90
索尼IMX219PQ CMOS圖像傳感器
15針帶狀電纜

將相機模塊連接到Pi:
連接到模塊的15厘米帶狀電纜直接插入Pi相機串行接口端口(CSI)。連接後,您可以通過多媒體抽象層(MMAL)或Video for Linux(V4L)API訪問攝像頭板。另外,還有像Picamera Python這樣的庫,以及其他許多可以在網上找到的庫。

產品應用:
Raspberry Pi相機模塊是高清視頻和靜態攝影的理想選擇。您還可以嘗試延時和慢動作。
其他應用包括植物,野生動物觀察和家庭安全。

Raspberry Pi Model A/B/B+/Pi2/ Pi3/ Pi4  皆可適用

Raspberry Pi Camera v1.3 Raspberry Pi Camera v2.1
Image Sensor: OmniVision OV5647 Sony IMX219
Resolution: 2592 × 1944 pixels (5 megapixel) 3280 × 2464 (8 megapixel)
Sensor Image Area: 3.76 × 2.74 mm 3.69 × 2.81 mm
Pixel Size: 1.4 µm × 1.4 µm 1.12 µm × 1.12 µm
Video: 1920 × 1080 (1080p)30p 1920 × 1080 (1080p)30p

樹莓派鏡頭模組

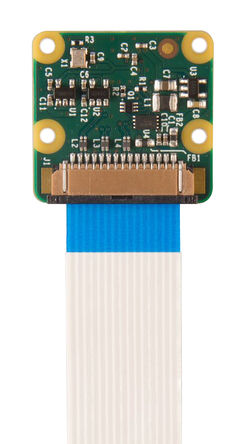

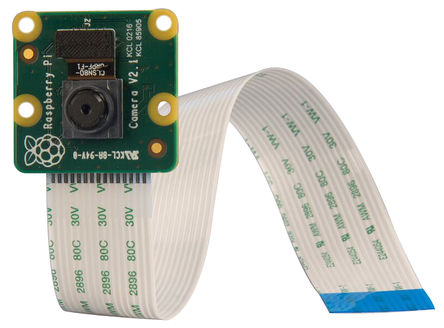

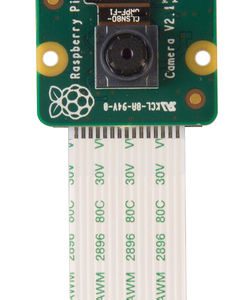

Raspberry Pi HD Camera Board V2

The Raspberry Pi High Definition (HD) Camera Board connects to any Raspberry Pi or Compute Module, allowing you to create HD video and still photographs.
It utilises the IMX219PQ image sensor from Sony which offers high-speed video imaging and high sensitivity.
The Raspberry Pi Camera Module offers reduced image contamination such as fixed pattern noise & smearing. It also features automatic control functions such as exposure control, white balance & luminance detection.

Features and benefits:
High-quality imagery
High data capability
8 megapixels fixed focus
Supports 1080p, 720p60 & VGA90
Sony IMX219PQ CMOS image sensor
15-pin ribbon cable

Connecting the Camera Module to Pi:
A 15 cm ribbon cable attached to the module slots straight into your Pi Camera Serial Interface port (CSI). Once connected, you can access the camera board via the Multi-Media Abstraction Layer (MMAL) or the Video for Linux (V4L) APIs. Alternatively there are libraries such as Picamera Python, and many others that you can find online.

Product Applications:
The Raspberry Pi Camera Module is ideal for HD videos and still photography. You can also try time-lapse and slow-motion.
Other applications include botanical, wildlife watching & home security.

更多關於鏡頭的介紹,請參考樹莓派官方網站 https://www.raspberrypi.org/products/camera-module-v2/
