BeagleBone Black Rev.C 開發板 德儀狗骨頭 SparkFun原廠

商品說明

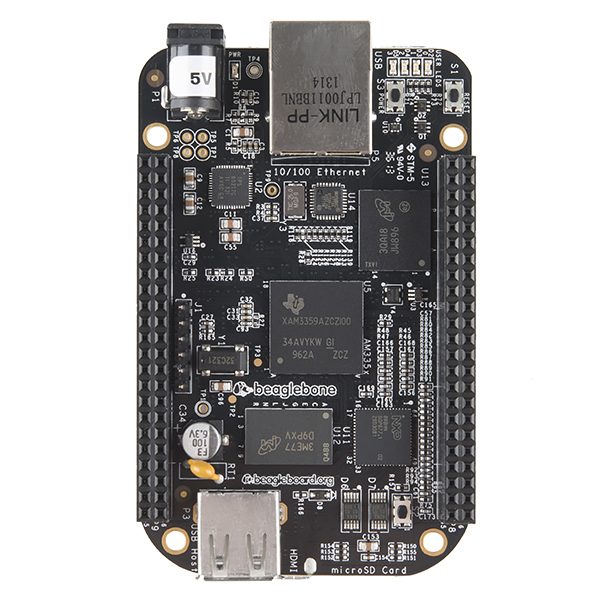

BeagleBone Black Rev.C 開發板 德儀狗骨頭 SparkFun原廠公司貨

BeagleBone Black Rev.C是一款基於AM335x處理器的開發套件，集成了ARM Cortex™-A8內核，工作頻率高達1GHz，並具有豐富的外圍設備。 BB Black提供了許多擴展接口，如以太網，USB主機和OTG，TF卡，串行，JTAG（默認情況下無連接器），HDMI D類型，Emmc，ADC，I2C，SPI，PWM和LCD。 Embest BeagleBone Black Rev.C旨在滿足各種領域的不同要求，包括遊戲設備，家庭和工業自動化，消費類醫療設備，打印機，智能收費系統，智能自動售貨機稱重系統，教育終端和高端玩具。

規格參數

• 一般規格
  • 尺寸：86.36 mm×54.61mm
  • 工作溫度：0~70℃
  • 工作濕度：20％~90％（非冷凝）
  • 電源：5V / 0.35A
• AM335x處理器
  • 集成1GHz ARM Cortex™-A8內核
  • 集成NEON™SIMD協處理器
  • 集成SGX530圖形引擎
  • 集成可編程實時單元子系統
  • 將32KB指令緩衝區和32KB數據緩衝區與單錯誤檢測（奇偶校驗）集成
  • 將256KB二級高速緩存與錯誤檢查代碼集成
•  車載記憶
  • 4GB 8位eMMC板載閃存（第3版）
  • 512MB DDR3 SDRAM
•  板載接口
  • 1個HDMI D型接口（帶音頻輸出的16位色）
  • 1個LCD接口（24位輸出，通過P8接口擴展）
  • 1 10 / 100M以太網（RJ45連接器）
  • 1個帶PHY的高速USB 2.0 OTG接口（Mini USB B型連接器）
  • 1個帶PHY的高速USB 2.0 HOST接口（USB A型連接器）
  • 1個TF卡插槽（SD / MMC）
  • 1個3線調試串行接口（6針2.54節距連接器）
  • 1個HDMI D型接口
  • 1個擴展接口，用於LCD，UART，eMMC，ADC，I2C，SPI和PWM
  • 1個JTAG接口（可選項，20針標準接口，默認情況下不安裝連接器）
•  按鈕和LED
  • 1個啟動設備選擇按鈕
  • 1個電源按鈕
  • 1個重置按鈕
  • 1個LED電源指示燈
  • 4個用戶自定義指標

STSTEM BLOCK DIAGRAM

Documents

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

BeagleBone Black – Rev C

The BeagleBone Black is a low-cost credit-card-sized development platform with good support from a fast growing community. The BeagleBone Black differs slightly from the regular version by providing you with an onboard micro HDMI port, 512MB of DDR3L DRAM, 4GB onboard flash memory, an AM3358 processor at 1GHz, and making JTAG optional with a user supplied header. Ultimately, the BeagleBone Black is still perfect for physical computing and smaller embedded applications.

With plenty of I/O and processing power for real-time analysis provided by the TI Sitara™ AM3358 ARM® Cortex™-A8 processor, BeagleBone Black can be complemented with cape plug-in boards which augment Black’s functionality. They’re called capes because Underdog is a beagle and he wears a cape. Makes sense, right?

At over 3 million Dhrystone operations per second and vector floating point arithmetic operations, BeagleBone Black is capable of not just interfacing to all of your robotics motor drivers, location or pressure sensors and 2D or 3D cameras, but also running OpenCV, OpenNI and other image collection and analysis software to recognize the objects around your robot and the gestures you might make to control it. Through onboard micro HDMI or VGA and LCD expansion boards, it is capable of decoding and displaying multiple video formats utilizing a completely open source software stack and synchronizing playback over Ethernet or USB with other BeagleBoards to create massive video walls. If what you are into is building 3D printers, then BeagleBone Black has the extensive PWM capabilities, the on-chip Ethernet and the 3D rendering and manipulation capabilities all help you eliminate both your underpowered microcontroller-based controller board as well as that PC from your basement.

Features

• AM3358 1GHz ARM® Cortex-A8 Processor
• 4GB 8-bit eMMC Onboard Flash
• 3D Graphics Accelerator
• NEON Floating-Point Accelerator
• 2x PRU 32-bit Microcontroller
• Connectivity:
  • USB Client for power and communications
  • USB Host
  • Ethernet
  • Micro HDMI
  • 2x 46-pin Headers
• Software Compatibility
  • Angstrom Linux
  • Android
  • Ubuntu
  • Cloud9 IDE on Node.js with BoneScript
  • and More…
