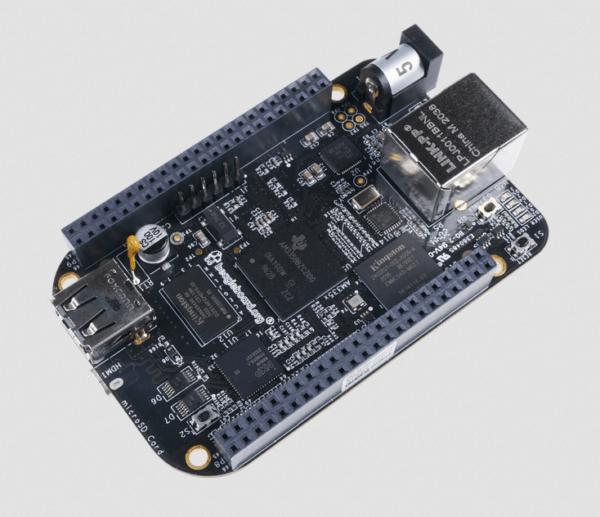

BeagleBone Black Wireless 開發板 德儀狗骨頭

商品說明

BeagleBone Black 是一款基於AM335x處理器的開發套件，集成了ARM Cortex™-A8內核，工作頻率高達1GHz，並具有豐富的外圍設備。 BB Black提供了許多擴展接口，如乙太網路，USB主機和OTG，TF卡，串行，JTAG（默認情況下無連接器），HDMI D類型，Emmc，ADC，I2C，SPI，PWM和LCD。BeagleBone Black 旨在滿足各種領域的不同要求，包括遊戲設備，家庭和工業自動化，消費類醫療設備，打印機，智能收費系統，智能自動售貨機稱重系統，教育終端和高端玩具。

規格：

• Texas Instruments Sitara AM3358
• 1GHz ARM® Cortex-A8
• SGX 3D Graphics Engine
• NEON floating-point accelerator
• 2×32-bit 200-MHz
• Memory
  • SDRAM: 512MB DDR3L 800MHZ
  • Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
• SD/MMC Connector for microSD
• Power management:TPS65217C PMIC is used along with a separate LDO to provide power to the system
• Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
• Power Source
  • miniUSB USB or DC Jack
  • 5VDC External Via Expansion Header
• Connectivity
  • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
  • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
  • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
  • 10/100M Ethernet (RJ45)
• User Input / Output
  • Reset Button
  • Boot Button
  • Power Button
  • LED power indicator
  • 4 user configurable LEDs
• Video/Audio Interfaces
  • HDMI D type interface
  • LCD interface
  • Stereo audio over HDMI interface
• Expansion Interfaces via 2x 46 pin headers
  • LCD, UART, eMMC
  • ADC, I2C, SPI, PWM
