Arduino Mega Grove Shield / Mega 2560 Grove 感測器介面擴展板 v1.2

商品說明

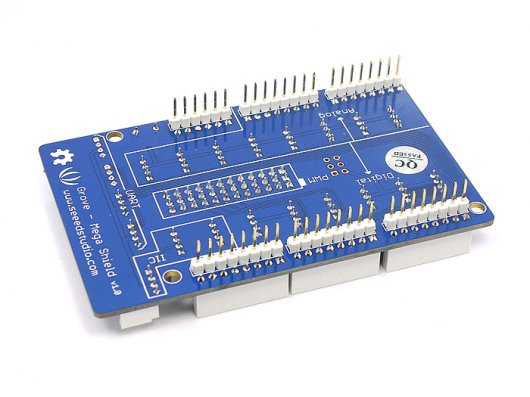

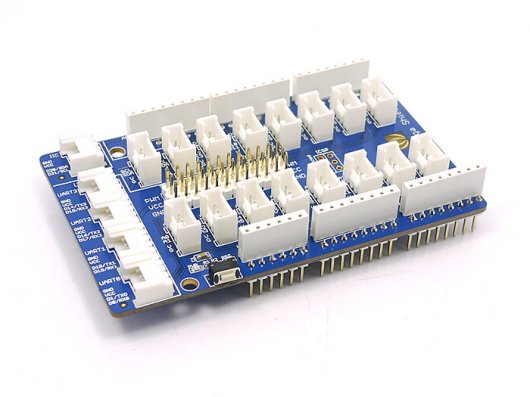

 Arduino Mega Grove Shield / Mega 2560 Grove 感測器介面擴展板

產品簡介

Grove – Mega Shield是一款適用於Arduino Mega及Seeeduino ADK的拓展版。上面含有21個標準的Grove接口，可以方便的連接Seeed提供的各種Grove接口的傳感器或其他模塊。另外，中間有12排3PIN的舵機接口，與大部分的舵機接口一致，一個GND、一個VCC以及一個信號口。Grove – Mega Shield可以讓你在使用Mega或者ADK的時候，更加方便的連接其他電路，從而使電路更加簡潔美觀。

規格參數

• Arduino Mega1280/2560/ADK 兼容
• Grove接口
• 尺寸：92.8mm x 57.2mm

功能模塊

Grove – Mega Shield 為更方便的連接而生!

每一個插口都有絲印表明它的引腳號。Grove – Mega Shield主要有四個功能塊：復位鍵、模擬引腳區、數字引腳區以及電源模塊。

參見以下的圖片：

Features

• Arduino Mega1280/2560 compatible
• Grove compatible
• Google ADK compatible
• Dimensions: 92.8 mm X 57.2 mm.

Function Block

The purpose of the Grove – Mega Shield is to allow easy connection of Xduino Mega/Google ADK input and output pins to the Grove units.

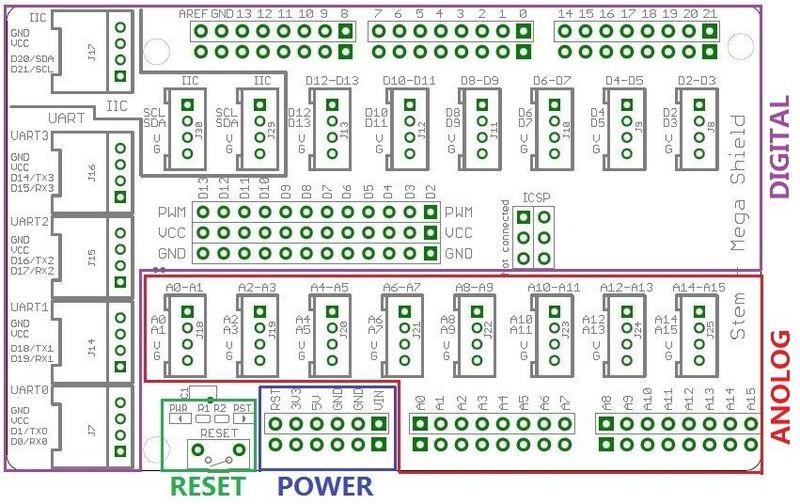

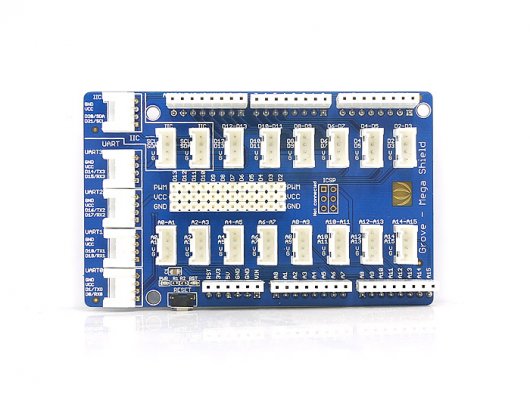

Each socket is clearly labelled with its matching I/O pin. the Grove – Mega Shield can be divided into four sections: Reset Button, Analog Area, Digital Area and Power Area.

Please consider the following diagram:

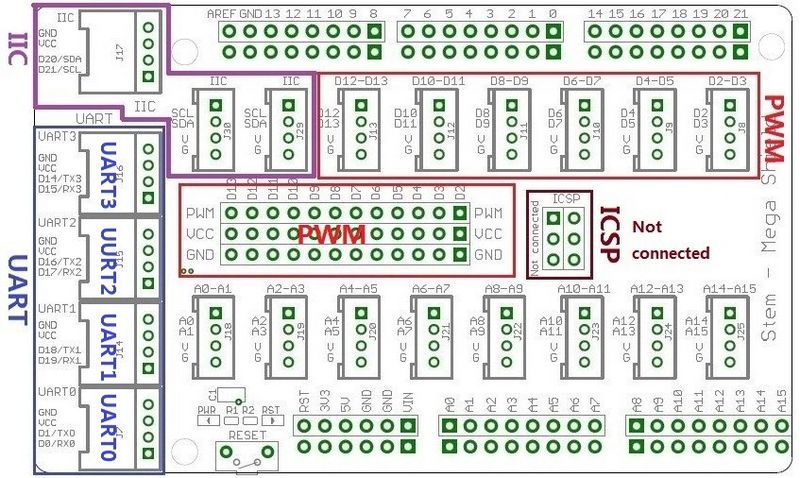

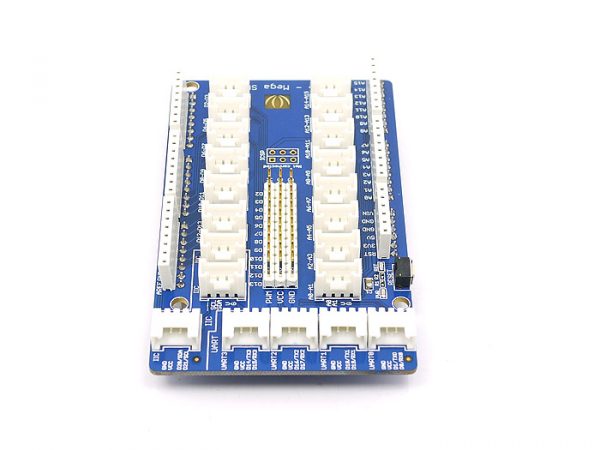

The Digital Area of Grove – Mega Shield can also be partitioned into four sections according to different function of GPIO: IIC( 3 connectors ), UART( UART0-3 ), PWM ( PWM2-13 ) and ICSP( not connector ). Please be aware that PWM have two ways of appearance: 3Pin 2.54mm Header and our standard 4Pin 2mm connector. Those two forms of appearance serve different purpose, 4Pin 2mm connectors can connect to our standard Groves while 3Pin 2.54mm Header can connect to Servo, Ultra Sonic range measurement module and Electronic Bricks. Please be aware that When using 3Pin and 4Pin modules on PWM at the same time, Do take extra attention in case of multi-using the same GPIO. Please refer to the following diagram:
