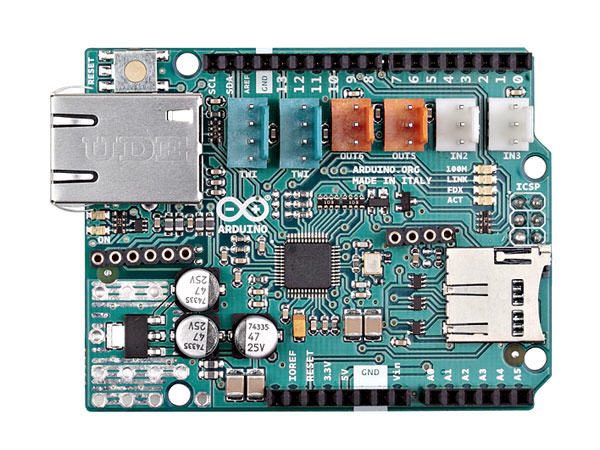

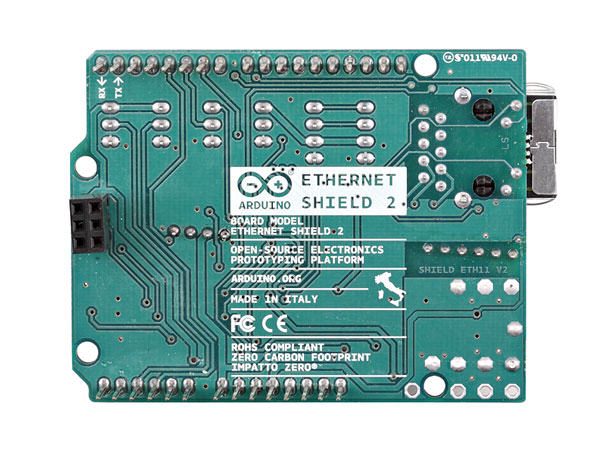

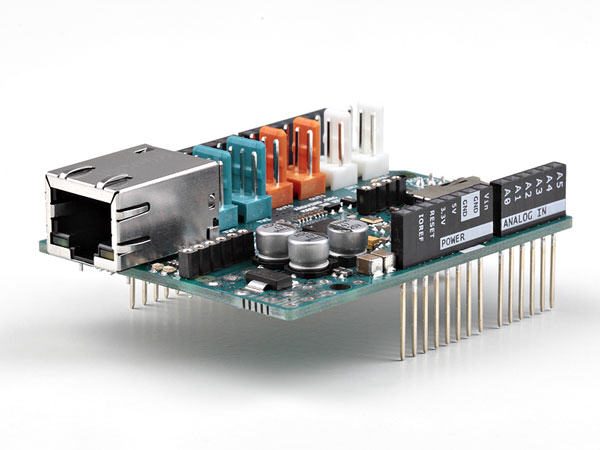

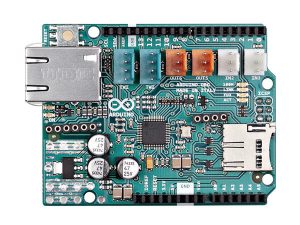

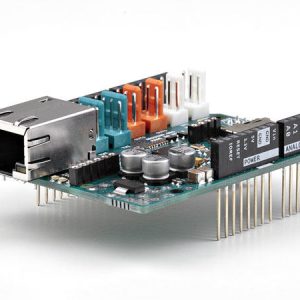

美國官方授權經銷 Arduino ETHERNET SHIELD 2 乙太網路擴展板 2代 不含POE模組 義大利製

-17%

美國官方授權經銷 Arduino ETHERNET SHIELD 2 乙太網路擴展板 2代 不含POE模組 義大利製

NT$1,143 NT$948 未稅

義大利原廠 Arduino 乙太網路擴展板 2代 不含POE模組

Arduino Ethernet Shield 2 connects your Arduino board to the internet.

Plug The Arduino Ethernet Shield 2 module onto your Arduino Board, connect it to your network with an RJ45 cable (not included) and follow a few simple steps to start controlling your world through the internet. The Shield has a Power over Ethernet (PoE) module designed to extract power from a conventional Ethernet cable.

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

美國官方授權經銷 Arduino 乙太網路擴展板 2代 不含POE模組 義大利製

Arduino Ethernet Shield 2將您的Arduino板連接到互聯網。
義大利原廠Arduino乙太網路擴展板2代不含POE模組

將Arduino Ethernet Shield 2模塊插入Arduino板,使用RJ45電纜(不包括在內)將其連接到網絡,然後按照幾個簡單的步驟開始通過互聯網控制您的世界。 Shield具有以太網供電(PoE)模塊,旨在從傳統以太網電纜中提取電力。

原廠規格書下載https://www.amazon.com/clouddrive/share/7a0FJKLkPtkM9s0OUNJNlr3gXvPxtFZo75HTkjnuPC8?ref_=cd_ph_share_link_copy
帶/不帶PoE的Arduino Ethernet Shield 2

Arduino Ethernet Shield 2有兩個版本:一個帶PoE(8732294),另一個帶PoE(8732285)。屏蔽設計用於將快速互聯網連接集成到使用Arduino板的設計中。其他屏蔽可以堆疊在以太網屏蔽的頂部,從而實現設計中的最佳功能集成。兩種屏蔽都採用Wiznet W5500以太網芯片,提供支持TCP和UDP協議的IP堆棧。 W5500還可同時支持多達8個插座連接。

版本2與以前的版本有何不同?
版本2具有板載microSD卡插槽作為標準尺寸SD卡的姿勢。升級版本2還具有更高的Arduino板兼容性 – 以前的版本不支持Mega板。

我需要使用這個版本2盾嗎?
您只需要一個Arduino板,一個5 V工作電壓(這將來自Arduino板),一個以太網控制器,10/100 Mb連接速度以及通過SPI端口與Arduino連接。

以太網盾2的特性和優點
•W5500以太網芯片
•尺寸:2.7 x 2.1英寸
•MicroSD卡插槽/讀卡器
•重新設置控制器
•RJ45以太網插孔
•5個狀態LED
您可以在arduino.org/downloads下載新的Arduino IDE
Arduino Shields和附加板

我們的屏蔽和附加板系列可以通過連接到Arduino板上或插入Arduino板來增加所需的額外功能。功能範圍從添加動作感應,電源管理,電機和顯示器到通過以太網,GSM,WiFi和USB連接設備。還有更靈活的原型設計選項

Plug The Arduino Ethernet Shield 2 module onto your Arduino Board, connect it to your network with an RJ45 cable (not included) and follow a few simple steps to start controlling your world through the internet. The Shield has a Power over Ethernet (PoE) module designed to extract power from a conventional Ethernet cable.



原廠規格書下載 https://www.amazon.com/clouddrive/share/7a0FJKLkPtkM9s0OUNJNlr3gXvPxtFZo75HTkjnuPC8?ref_=cd_ph_share_link_copy

Arduino Ethernet Shield 2 connects your Arduino board to the internet.

Arduino Ethernet Shield 2 with/without PoE

The Arduino Ethernet Shield 2 comes in 2 versions: one with PoE (8732294) and one without PoE (8732285). The shields have been designed to integrate rapid internet connection into designs that use Arduino boards. Other shields can be stacked right on top of the ethernet shield, allowing for optimum functionality integration in designs. Both shields feature the Wiznet W5500 ethernet chip that provide an IP stack that supports TCP and UDP protocols. The W5500 also supports up to 8 socket connections at once.

How is version 2 different to previous versions?
Version 2 features an on-board microSD card slot as a pose to a standard size SD card.The upgraded version 2 also has a higher Arduino board compatibility — the previous version does not support the Mega board.

What do I need to use this version 2 shield?
All you need is an Arduino board, a 5 V operating voltage (this will come from the Arduino board), an ethernet controller, 10/100 Mb connection speed and and connection with an Arduino via an SPI port.

Features & Benefits of the Ethernet Shield 2
•W5500 ethernet chip
•Dimensions: 2.7 x 2.1 ins
•MicroSD card slot/card reader
•Re-set controller
•RJ45 ethernet jack
•5 status LEDs
You can download the new Arduino IDE at arduino.org/downloads

Arduino Shields & Add-On Boards

Our range of shields and add-on boards can add the extra functionality you need by attaching on top of or plugging into an Arduino board. Functionality ranges from adding motion sensing, power management, motors and displays to connecting your devices via Ethernet, GSM, WiFi and USB. There are also options for more flexible prototyping
