Grove W5500 Ethernet Shield W5500 乙太網路擴充板 for Arduino seeed原廠

-17%

Grove W5500 Ethernet Shield W5500 乙太網路擴充板 for Arduino seeed原廠

NT$1,095 NT$914 未稅

W5500乙太網屏蔽v1.0可以為您的項目提供互聯網連接.W5500使用戶能夠通過使用單芯片(其中有TCP / IP堆棧,10/100以太網MAC和PHY嵌入式)來實現應用中的互聯網連接。

尚有庫存

貨號: 103030021(C2-3) 分類: , 標籤: , ,
  • 商品說明
  • 評論 (0)

商品說明

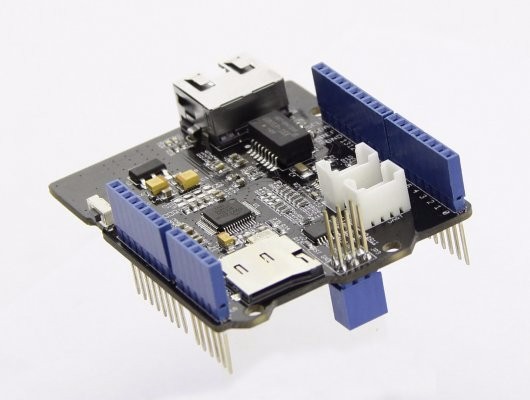

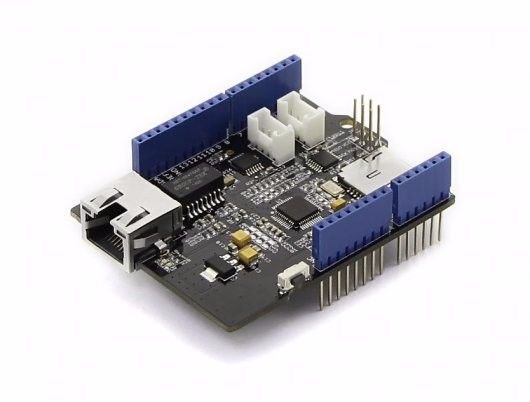

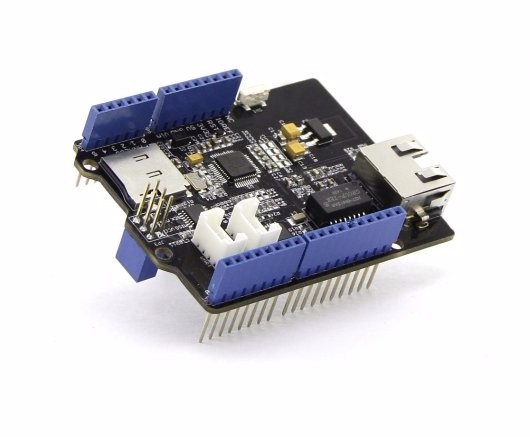

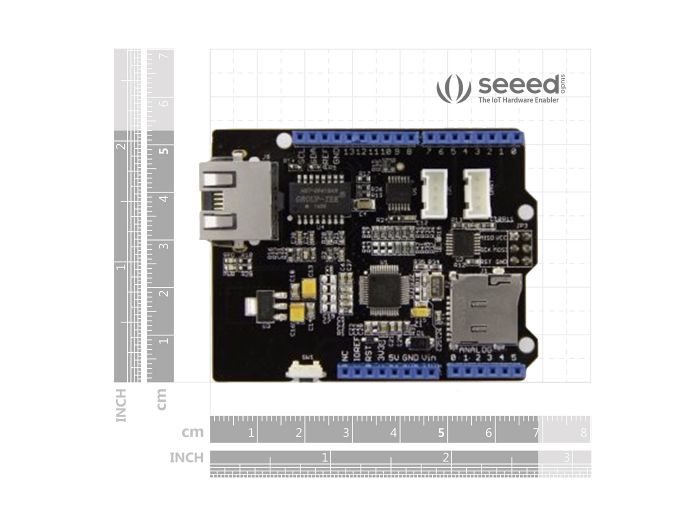

W5500 Ethernet Shield for Arduino W5500 乙太網路擴充板

W5500乙太網屏蔽v1.0可以為您的項目提供互聯網連接.W5500使用戶能夠通過使用單芯片(其中有TCP / IP堆棧,10/100以太網MAC和PHY嵌入式)來實現應用中的互聯網連接。 W5500 Ethernet Shield v1.0還具有兩個Grove連接器和一個microSD卡插槽,用於支持需求在Grove傳感器中存儲大量數據的項目.RJ45端口(以太網線纜連接到的位置)足夠低使得您可以使用更多的盾牌。

W5500 Ethernet Shield

特徵

  • 支持固線式TCP / IP協議:TCP,UDP,ICMP,IPv4,ARP,IGMP,PPPoE
  • 同時支持8個獨立插座
  • 支持掉電模式
  • 支持通過UDP喚醒局域網
  • 支持高速串行外設接口(SPI模式0,3)
  • 用於TX / RX緩衝器內部32K的字節內存
  • 10BaseT / 100BaseTX以太網PHY嵌入式
  • 支持自協商(全雙工和半雙工,10和100 *)
  • 不支持IP分段
  • 3.3V操作,具有5V I / O信號容差
  • LED輸出(全/半雙工,Link,速度,有效)
  • Micro-SD卡插槽
  • 用於I2C和UART的Grove連接器



硬件概述

硬件配置

  1. RJ45:乙太網端口;
  2. IC W5500:固線TCP / IP以太網控制器;
  3. 復位按鈕:重置乙太網屏蔽;
  4. SD卡插座:支持FAT16或FAT32中的Micro SD卡; 最大存儲空間為2GB。
  5. I2C接口
  6. UART接口

Arduino的上的引腳用途

  1. D4:SD卡芯片選擇
  2. D10:W5200芯片選擇
  3. D11:SPI MOSI
  4. D12:SPI MISO
  5. D13:SPI SCK



出貨清單

  • W5500 Ethernet Shield x1



Documents





=========================================================

W5500 Ethernet Shield

The W5500 Ethernet Shield v1.0 can be used to provide your projects with internet connectivity.W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded. The shield also have two Grove connectors and a microSD card socket to support projects which require storing large amounts of data from Grove sensor. The RJ45 port (Where the Ethernet cable is connected to) is low enough to allow you to stack more shields on top of this one if needed.

Features

  • Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports 8 independent sockets simultaneously
  • Supports Power down mode
  • Supports Wake on LAN over UDP
  • Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
  • Internal 32Kbytes Memory for TX/RX Buffers
  • 10BaseT/100BaseTX Ethernet PHY embedded
  • Supports Auto Negotiation (Full and half duplex, 10 and 100* based )
  • Not supports IP Fragmentation
  • 3.3V operation with 5V I/O signal tolerance
  • LED outputs (Full/Half duplex, Link, Speed, Active)
  • Micro-SD card socket
  • Grove connector for I2C and UART

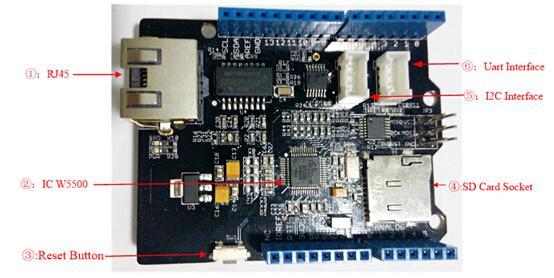

Hardware Configuration

①:RJ45: Ethernet Port;

②:IC W5500: a hardwired TCP/IP Ethernet Controller;

③:Reset Button: Reset Ethernet shield ;

④:SD Card Socket: support Micro SD card in FAT16 or FAT32; maximum storage is 2GB.

⑤:I2C Interface

⑥:UART Interface

Pins usage on Arduino

D4: SD card chip select

D10: W5200 Chip Select

D11: SPI MOSI

D12: SPI MISO

D13: SPI SCK
