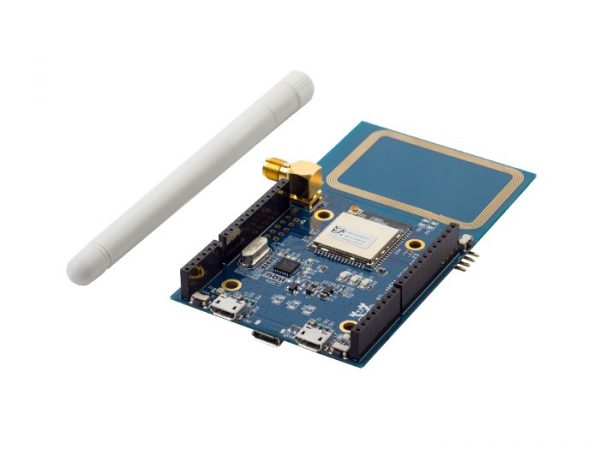

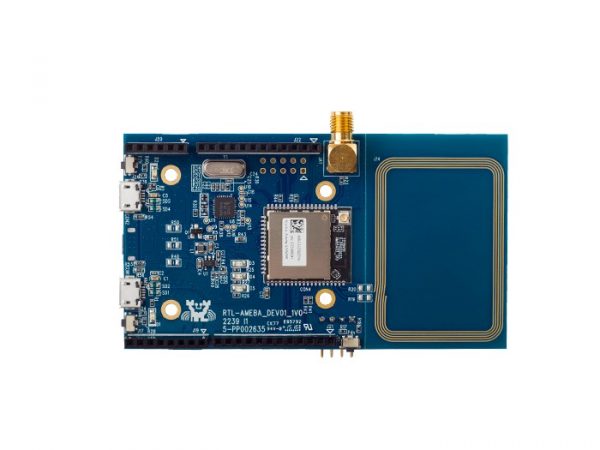

Ameba RTL8195 Arduino Wireless Board 瑞昱 阿米巴物聯網開發板

-17%

Ameba RTL8195 Arduino Wireless Board 瑞昱 阿米巴物聯網開發板

NT$943 NT$781 未稅

Ameba RTL8195 Arduino Wireless Board 瑞昱 阿米巴物聯網開發板

Ameba RTL8195AM 是一個Arduino 兼容的開發板,用於物聯網,除WiFi連接外,還包括一個NFC標籤,並且可以通過Arduino兼容的標頭來支持以太網。該板的大腦是Realtek RTL8195AM ARM Cortex M3 MCU,包括WiFi連接,硬件SSL,SRAM和閃存。它為製造商社區和Quadcopter,太陽能係統,傳感器環境,自動化解決方案等提供了最佳解決方案。

尚有庫存

貨號: 113990295(C3-9) 分類: 標籤: , ,
  • 商品說明
  • 評論 (0)

商品說明

Ameba RTL8195 Arduino Wireless Board 瑞昱 阿米巴物聯網開發板

Ameba RTL8195AM 是一個Arduino 兼容的開發板,用於物聯網,除WiFi連接外,還包括一個NFC標籤,並且可以通過Arduino兼容的標頭來支持以太網。該板的大腦是Realtek RTL8195AM ARM Cortex M3 MCU,包括WiFi連接,硬件SSL,SRAM和閃存。它為製造商社區和Quadcopter,太陽能係統,傳感器環境,自動化解決方案等提供了最佳解決方案。

Ameba RTL8195 Arduino Wireless Board 硬體規格

  • CPU – 32位ARM Cortex M3,高達166MHz
  • 內存- 1MB ROM,512KB SRAM,2MB SDRAM附加2MB閃存
  • 與802.11 b / g / n 1×1 Wi-Fi集成
  • 具有讀/寫功能的NFC標籤
  • 10/100以太網MII / RMII / RGMII接口
  • 包括WiFi天線設計,板上印刷天線和高增益偶極天線
  • USB OTG
  • SDIO設備/ SD卡控制器
  • 硬件SSL引擎
  • 最多30個GPIO
  • 2個SPI接口,支持主從模式
  • 3個UART接口,包括2個HS-UART和1個對數UART
  • 4個I2C接口,支持主模式和從模式
  • 2 I2S / PCM接口,支持主模式和從模式
  • 4個PWM接口
  • 2個ADC接口
  • 1個DAC接口

阿米巴物聯網開發板

Ameba RTL8195 Arduino Wireless Board

全面的標準SDK現已發布下載。在標準SDK中,我們為經濟高效的Ameba IC提供支持,並輕鬆連接多個雲服務。通過對各方面的詳細控制,標準SDK是您的最佳選擇。請參考  入門指南

Ameba RTL8195 應用程序

Ameba Quadcopter – V1.1.1 [ARDUINO]

release_1_1_1

Quadcopter是開發板的受歡迎應用。嘗試自行搭建Ameba四足直升機,享受航空!請參考我們的  例子

Ameba 與太陽能 – V1.0.9 [ARDUINO]

release_1_0_9

在追求可持續能源的同時,太陽能是廣泛使用的可持續能源之一。在版本1.0.9中,讓Ameba配備持久的太陽能,構建您的應用程序,而不必擔心更換電池。請參考我們的  例子

傳感器支持 – V1.0.8 [ARDUINO]

release_1_0_8

傳感器的快速革命改變了人類的生活方式。隨著各種應用,傳感器豐富了我們的生活,使我們的生活更加精彩。在版本1.0.8中,讓我們用傳感器構建應用程序,並在IoT世界中體驗無限的可能性。請參考我們的  例子

成為你的眼睛 – V1.0.7 [ARDUINO]

release_1_0_7

隨著無人機把你的眼睛看向天空,讓Ameba成為你的眼睛,延伸你的視力。讓我們開始一些樂趣,請參考這個  例子 。

歡樂時光! – V1.0.6

release_1_0_6

遙控車是我們童年時期最好的朋友。在1.0.6版本中,Ameba發布了AmebaMotors Library,可以輕鬆構建遙控車,而不用擔心APP開發。請參考我們的  例子

節省能源和保存地球:電源管理 – V1.0.5

release_1_0_5_v4

為了擺脫電氣佈線,建設環保型應用,功耗管理十分重要。在1.0.5版本中,我們介紹了一些省電模式的Ameba,並提供易於使用的電源管理API。請參考我們的  例子

適合大多數IoT應用。



零件清單

  • 1x Ameba Arduino無線網卡
  • 1x NFC天線

DOCUMENTS

社區與支持

Ameba RTL8195 Arduino Wireless Board



  • an Arduino-compatible development board for IoT
  • Realtek RTL8195AM ARM Cortex M3 MCU
  • Includes Wi-Fi, an NFC tag, and can support Ethernet

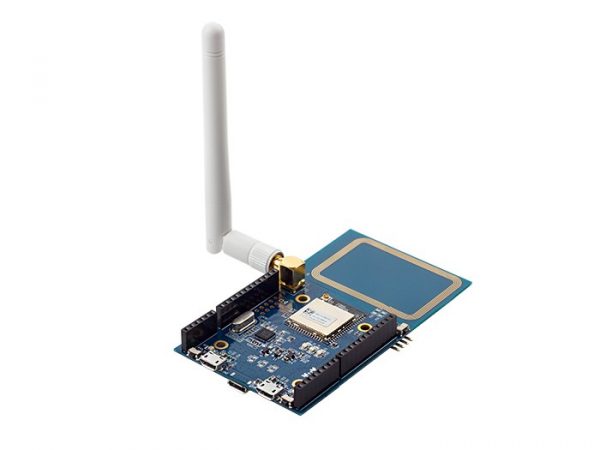

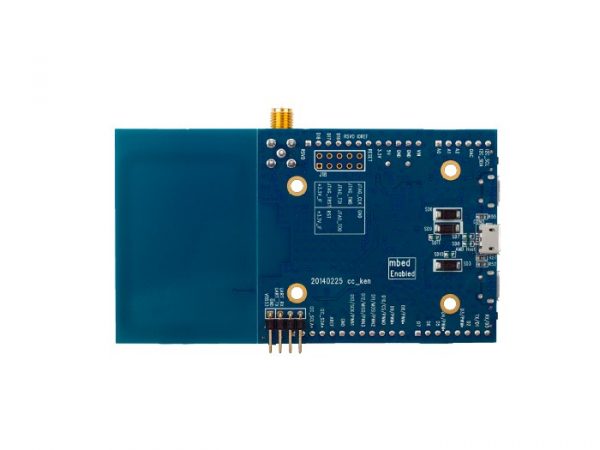

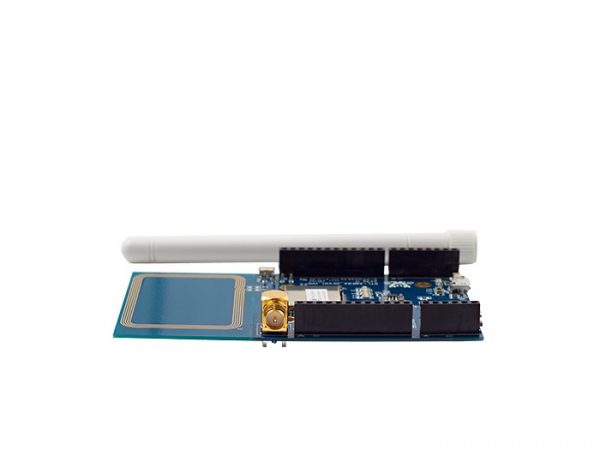

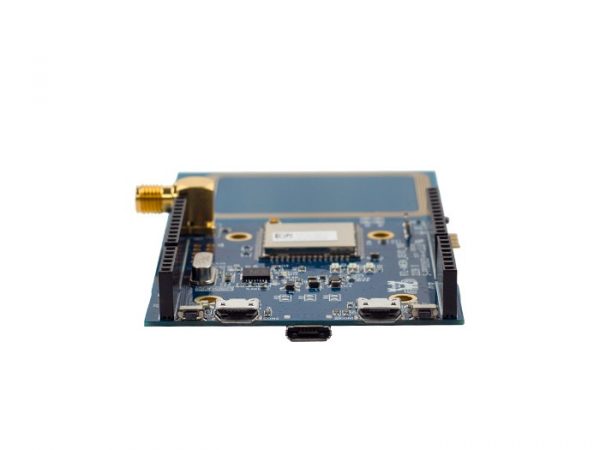

Ameba is an Arduino-compatible development board for internet of things, beside WiFi connectivity, it also includes an NFC tag, and can support Ethernet via Arduino compatible headers. The brain of the board is Realtek RTL8195AM ARM Cortex M3 MCU that includes WiFi connectivity, hardware SSL, SRAM, and flash. It provides the optimal solution for the maker community and Quadcopter, Solar Energy system, Sensor Environment, automation solutions and etc.





KEY FEATURE

  1. CPU- 32-bit ARM Cortex M3, up to 166MHz
  2. Memory- 1MB ROM, 512KB SRAM, 2MB SDRAM additional 2MB Flash on board
  3. Integrated with 802.11 b/g/n 1×1 Wi-Fi
  4. NFC Tag with Read/Write Function
  5. 10/100 Ethernet MII/ RMII/RGMII Interface
  6. Wifi antenna design included, printed antenna on board and high gain dipole antenna
  7. USB OTG
  8. SDIO Device/SD card controller
  9. Hardware SSL engine
  10. Maximum 30 GPIOs
  11. 2 SPI Interfaces and support both master and slave mode
  12. 3 UART Interfaces including 2 HS-UART and one log UART
  13. 4 I2C Interfaces and support both master and slave mode
  14. 2 I2S/PCM Interfaces and support both master and slave mode
  15. 4 PWM interfaces
  16. 2 ADC interfaces
  17. 1 DAC interfaces

Ameba SDK

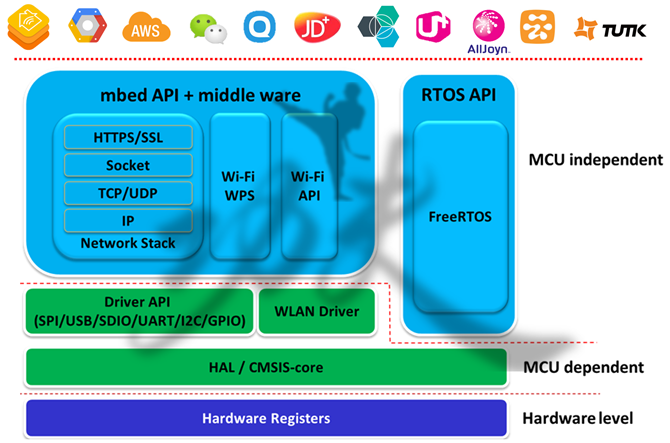

Standard SDK is released – V3.4b3[Std. SDK]

Ameba RTL8195 Arduino Wireless Board

Full-fledged Standard SDK is now released for download. In the Standard SDK, we provide support to cost-effective Ameba IC and connect to a number of cloud services easily. With the detailed control in all aspects, Standard SDK is your best choice. Please refer to Getting Started.

Ameba Applications

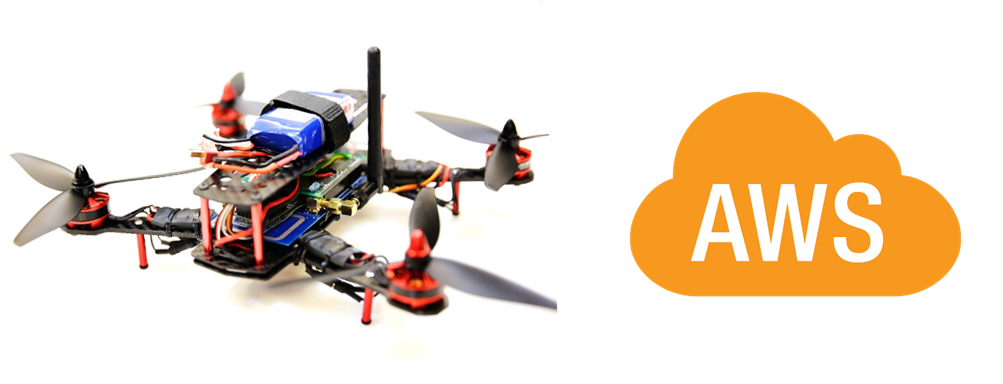

Ameba Quadcopter – V1.1.1[ARDUINO]

release_1_1_1

Quadcopter is a popular application of development boards. Try to build an Ameba quadcopter on your own and enjoy aviation! Please refer to our example.

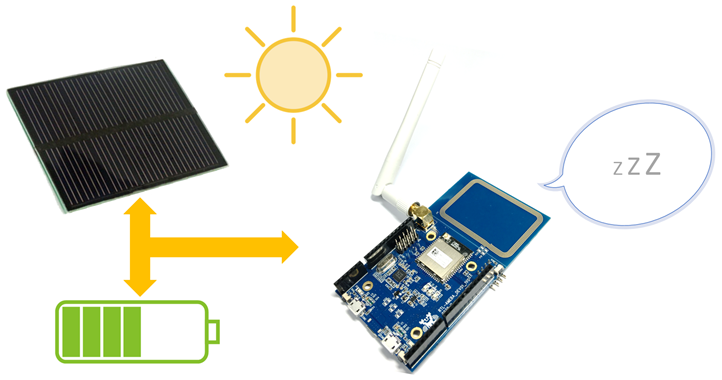

Ameba with Solar Energy – V1.0.9[ARDUINO]

release_1_0_9

In the pursuit of the sustainable energy, solar energy is one of the widely-used sustainable energy source. In release 1.0.9, let’s equip Ameba with lasting solar energy, build your application without worrying about the battery replacement. Please refer to our example.

Sensor support – V1.0.8[ARDUINO]

release_1_0_8

The rapid revolution of sensors changes the human’s life style. With various applications, the sensors enrich our life and make our life more exciting. In release 1.0.8, let’s build applications with sensors and experience the infinite possibilities in the IoT world. Please refer to our example.

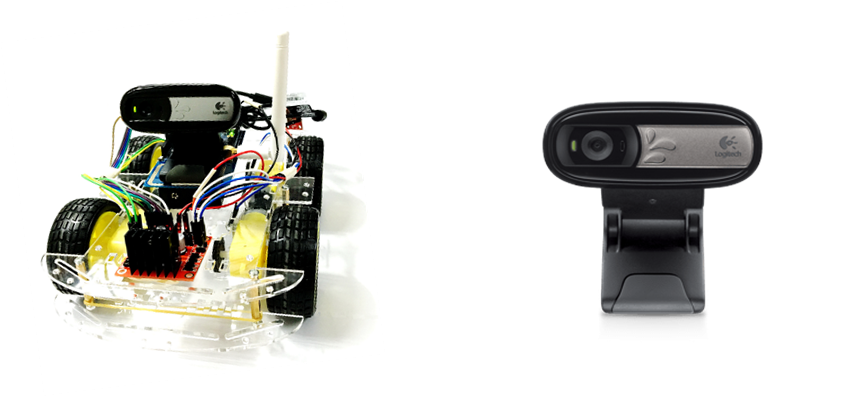

Be your eyes – V1.0.7[ARDUINO]

release_1_0_7

As the drone takes your eyes to the sky, let Ameba be your eyes and extend your eyesight. Let’s begin with some fun, please refer to this example .

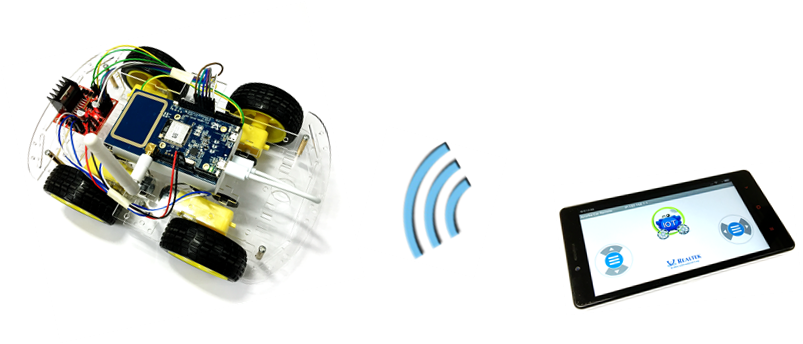

Fun Time! – V1.0.6

release_1_0_6

Remote control cars were our best friend in our childhood. In release 1.0.6, Ameba releases AmebaMotors Library, to help you to build a remote control car with ease, and without worrying about APP development. Please refer to our example.

Save energy & Save the Earth: Power Management – V1.0.5

release_1_0_5_v4

To get rid of the electrical wiring and build environment-friendly applications, it is important that the power consumption is well-managed. In release 1.0.5, we introduce a number of power-saving modes of Ameba, and provide easy-to-use power management API. Please refer to our example.

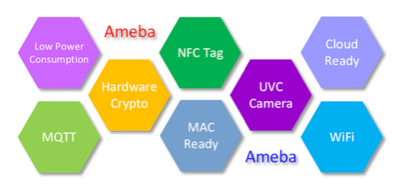

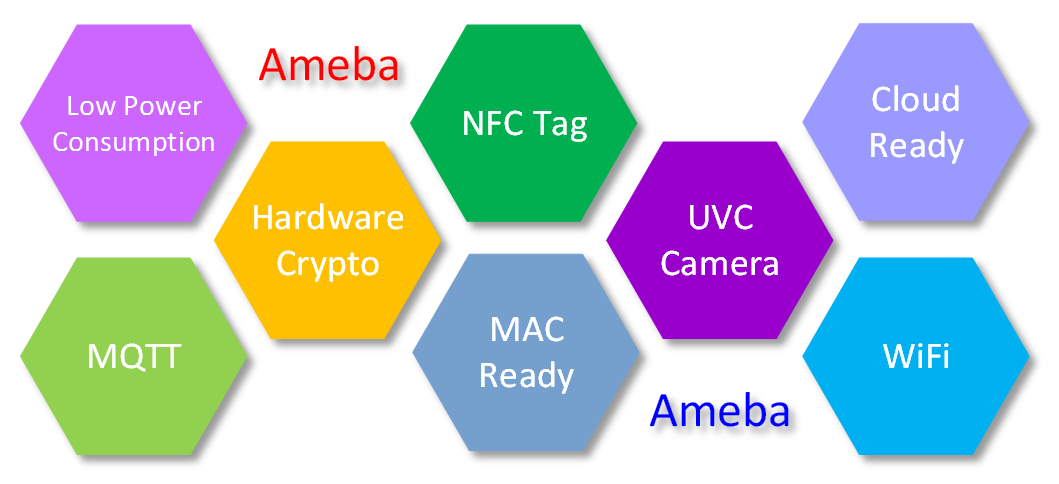

Fits most IoT Applications.



PART LIST

  • 1x Ameba Arduino Wireless Board
  • 1x NFC Antenna

DOCUMENTS

Community & Support
