Grove – 3-Axis Digital Accelerometer(±1.5g) MMA7660FC 加速度模組 seeed原廠


Grove – 3-Axis Digital Accelerometer(±1.5g) MMA7660FC 加速度模組 seeed原廠

NT$395 NT$329 未稅


  • 商品說明


Grove – 3-Axis Digital Accelerometer(±1.5g) MMA7660FC 加速度模組


Grove  -  3軸數字加速度計(±1.5g)



  • Grove兼容接口
  • 3軸運動/方向感應
  • 數字輸出(I2C)
  • 10,000克衝擊存活率
  • 符合RoHS / WEEE無鉛標準
  • 5VDC輸入



  • 機器人的運動檢測
  • 手機/ PMP / PDA:方向檢測(縱向/橫向),圖像穩定性,文本滾動,動作撥號,點擊靜音



工作電壓 3.0 – 5.5V
關閉模式電流 0.4μA
待機模式電流 2μA
活動模式電流 47μA在1 ODR
測量範圍 ±1.5g
靈敏度 21LSB / g



  • Grove – 3-Axis Digital Accelerometer(±1.5g) x1
  • Grove連接線 x1

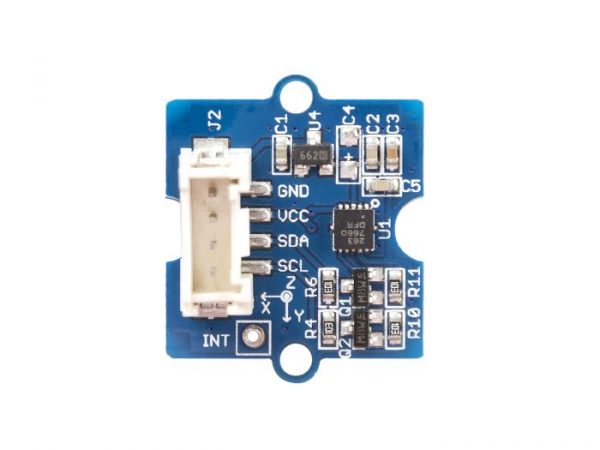

Grove – 3-Axis Digital Accelerometer(±1.5g)

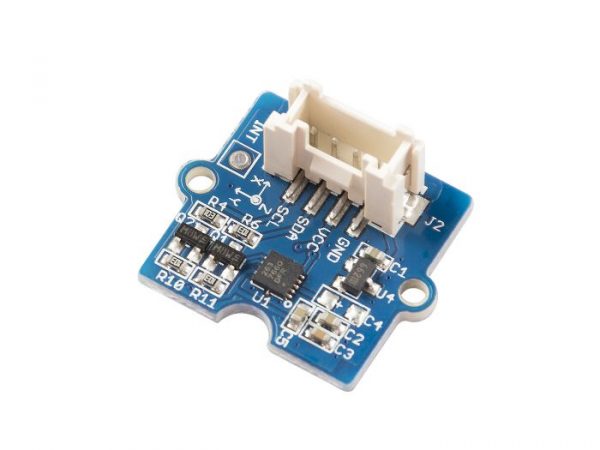

This 3-axis Accelerometer module is based on MMA7660FC with Digital Output I2C. This Module can be used for sensing data changes, product orientation, and gesture detection through an interrupt pin (INT).It is a very low power, low profile capacitive MEMS sensor.


  • Grove compatible interface
  • 3 axis motion/orientation sensing
  • Digital Output (I2C)
  • 10,000 g shock survival
  • RoHS/WEEE lead-free compliant
  • 5VDC input

Application Ideas

  • Motion Detection of Robot
  • Mobile Phone/ PMP/PDA: Orientation Detection (Portrait/Landscape),Image Stability, Text Scroll, Motion Dialing, Tap to Mute

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
