3.5吋 TFT LCD 樹莓派 觸控螢幕 液晶 顯示模組 支援 Raspberry Pi

商品說明

3.5吋 TFT LCD 樹莓派 觸控螢幕 液晶 顯示模組 支援 Raspberry Pi

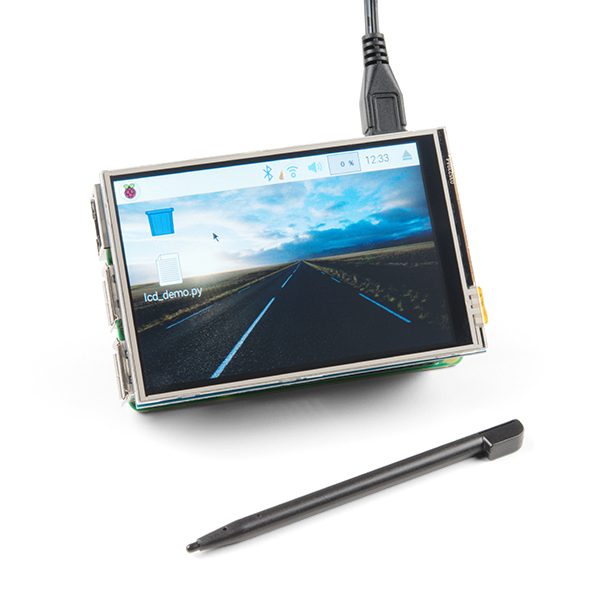

這款 樹莓派 LCD 觸控螢幕 幾乎可以貼合在 Raspberry Pi 的頂部。電阻式觸控螢幕為您提供了一種簡單的方法來顯示 Raspberry Pi 和當前運行的操作系統的信息。

這款HAT配備的4：3寬高比背光LCD擁有480×320像素的分辨率，超過65000種顏色和一個16MHz驅動速度的SPI接口。只需將13×2 GPIO接頭插入所需的Raspberry Pi即可，您將能夠開始使用新的電阻式觸摸屏！

This LCD Touchscreen HAT fits snuggly on top of the Raspberry Pi, practically form fitting on top of it so as not to compromise the over all dimensions of the credit card sized single board computer. The resistive touchscreen provides you with an easy way to display information coming off of the Raspberry Pi and the OS currently running on it.

The 4:3 aspect ratio backlit LCD equipped on this HAT possesses a resolution of 480 by 320 pixels with over 65 thousand colors and an SPI interface with a 16MHz driver speed. Simply plug the 13×2 GPIO header into your desired Raspberry Pi and you’ll be able to start using your new resistive touch screen!

規格

• LCD類型：TFT
• LCD接口：SPI
• 電阻式觸摸屏

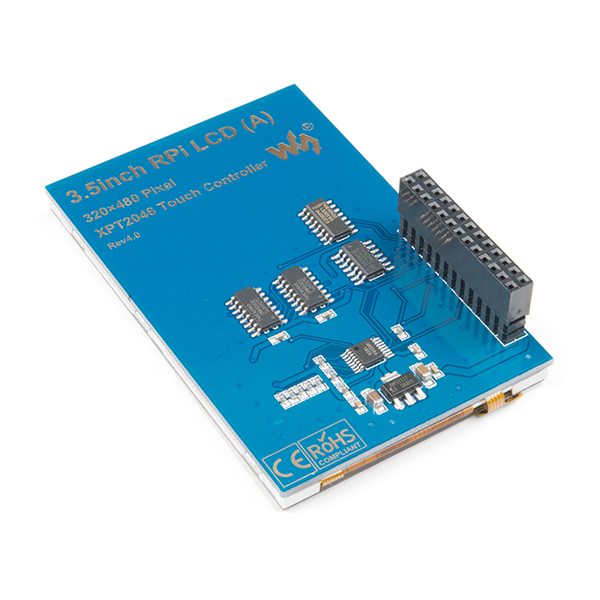

• XPT2046觸摸屏控制器
• 65536種顏色
• 背光LED

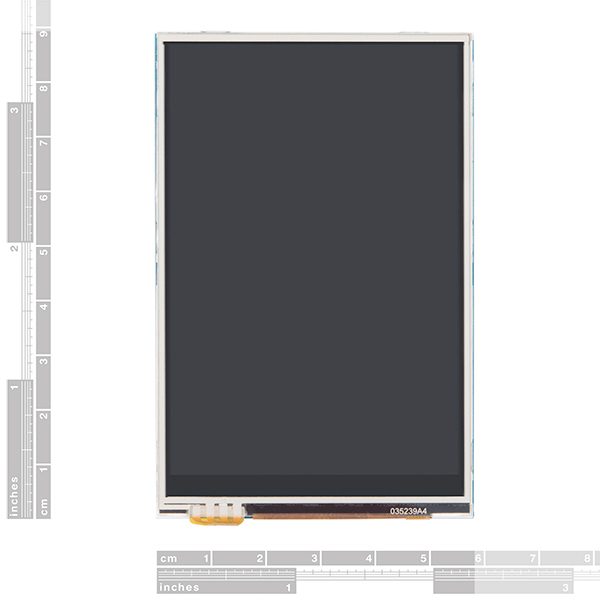

• 分辨率：480×320
• 縱橫比：4：3
• SPI Diver速度：16MHz

出貨清單

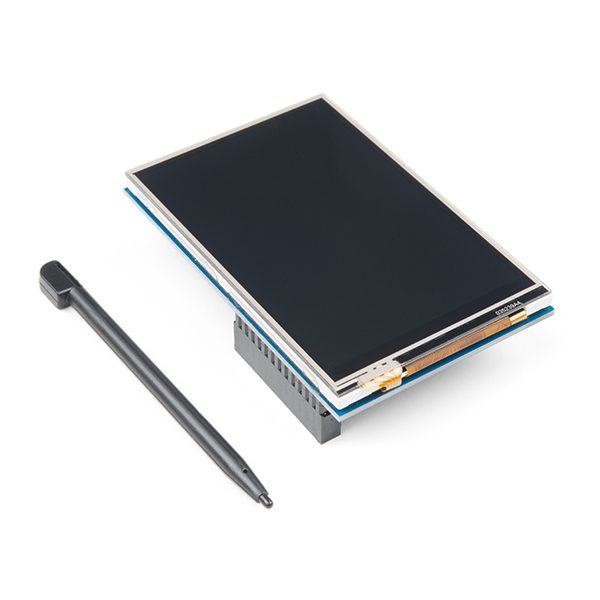

• 1x LCD觸摸屏帽
• 1x觸控筆

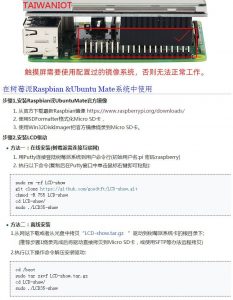

技術文件
