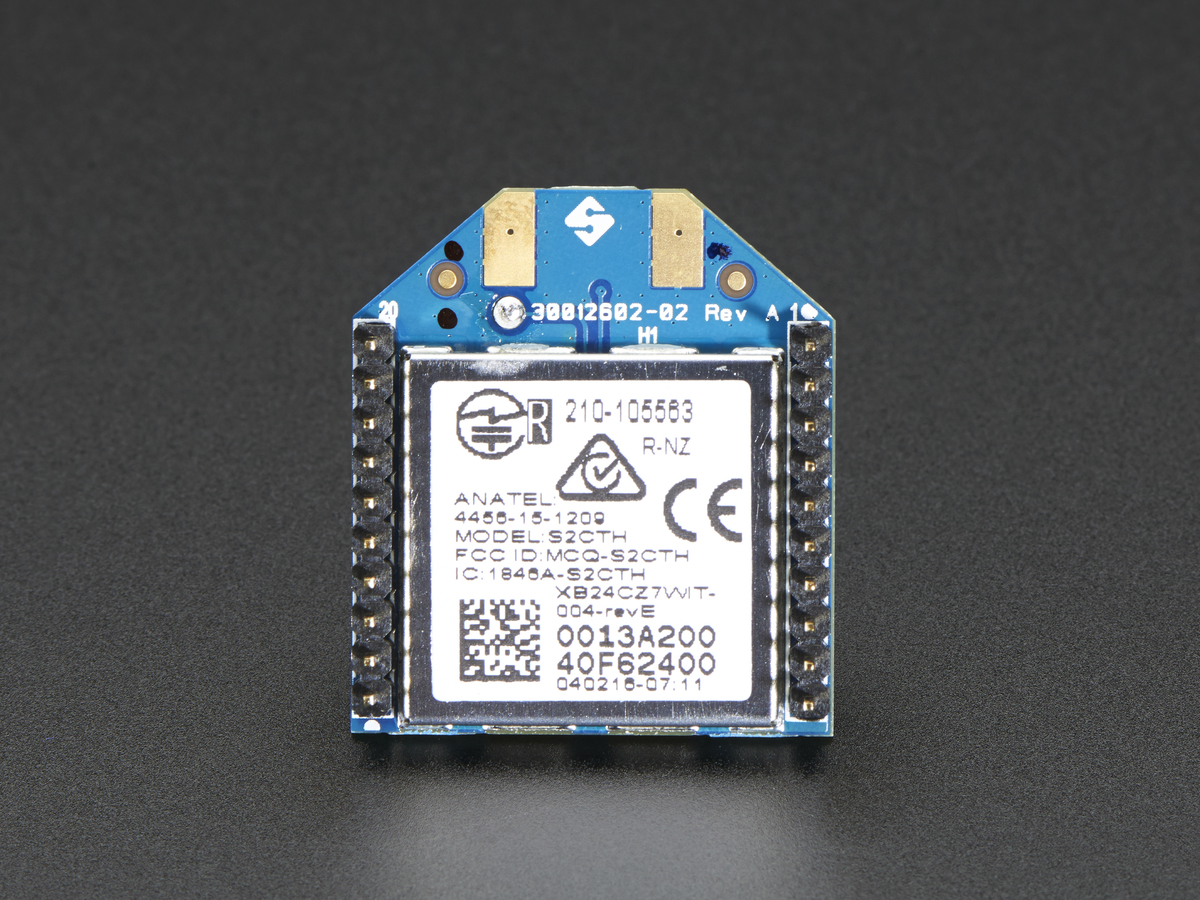

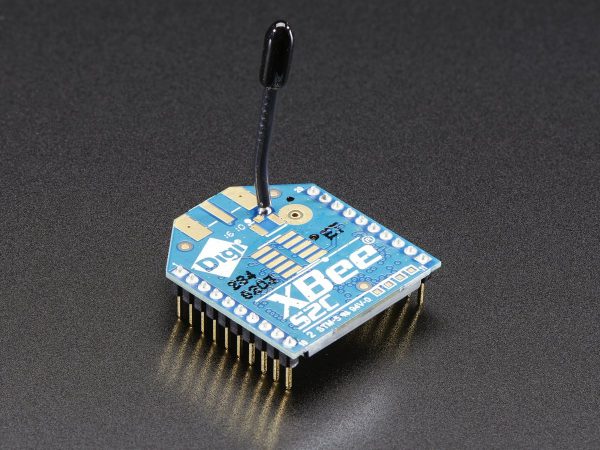

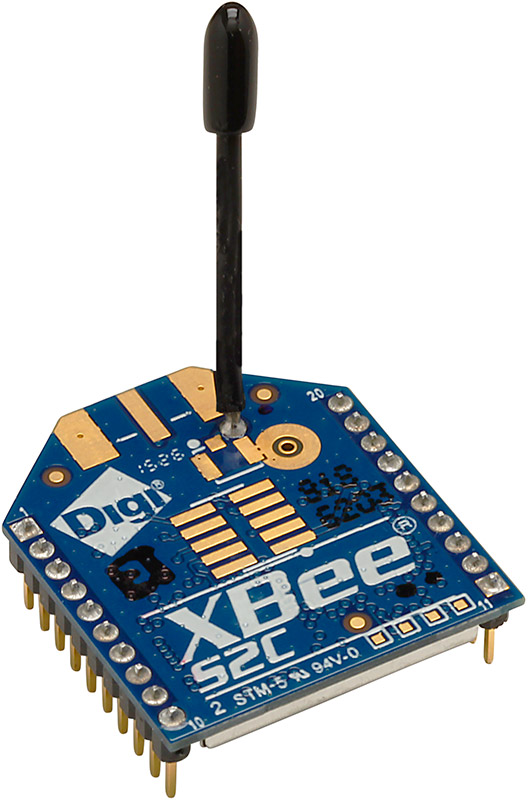

XBee ZB S2C low power ZigBee module w/ integrated wire antenna 最新產品 原裝進口
NT$1,400 未稅
Digi International XBee® & XBee-PRO® ZB ZigBee® RF Modules provide cost-effective wireless connectivity to devices in ZigBee mesh networks. They are interoperable with other ZigBee and ZigBee PRO feature set devices. These modules require no configuration or additional development; users can have their network up and running in a matter of minutes. Programmable versions of the XBee-PRO ZB ZigBee and the SMT ZigBee modules make customizing ZigBee applications easy, even without wireless design expertise.
尚有庫存
- 商品說明
商品說明
XBee ZB S2C low power ZigBee module w/ integrated wire antenna 產品介紹
Digi International XBee® & XBee-PRO® ZB ZigBee® RF Modules provide cost-effective wireless connectivity to devices in ZigBee mesh networks. They are interoperable with other ZigBee and ZigBee PRO feature set devices. These modules require no configuration or additional development; users can have their network up and running in a matter of minutes. Programmable versions of the XBee-PRO ZB ZigBee and the SMT ZigBee modules make customizing ZigBee applications easy, even without wireless design expertise.
All of these modules also include iDigi Manager Pro, a feature of all Digi cellular gateways, routers, devices, and components. iDigi Manager Pro provides a robust suite of network management tools including authentication, configuration management, account management, asynchronous updates and alerts, group and individual software updating, network data storage, and gateway programming. With iDigi Manager Pro, network managers can remotely configure, upgrade, monitor, and troubleshoot remote devices, and create applications that improve productivity, speed, and efficiency.
Programmable versions of XBee-PRO ZB and XBee-PRO ZB SMT modules make customizing ZigBee applications easy. Programming directly on the module eliminates the need for a separate processor. Because the wireless software is isolated, applications can be developed with no risk to RF performance or security.
- Frequency: 2.4 GHz
- Range: 1200M
- Data Rate: 250 kbps
- Sensitivity: – 100 dBm
- Operating Supply Voltage: 2.1 V to 3.6 V
- Supply Current Transmitting: 33 mA
- Supply Current Receiving: 28 mA
- Output Power: 3.1 mW
- Maximum Operating Temperature: + 85 C
- Antenna Connector Type: Integrated
- Brand: Digi International
- Dimensions: 2.761 cm x 2.438 cm
- Interface Type: SPI, UART
文件資料:
https://www.digi.com/resources/library/data-sheets/ds_xbee_zigbee?view=fullscreen
