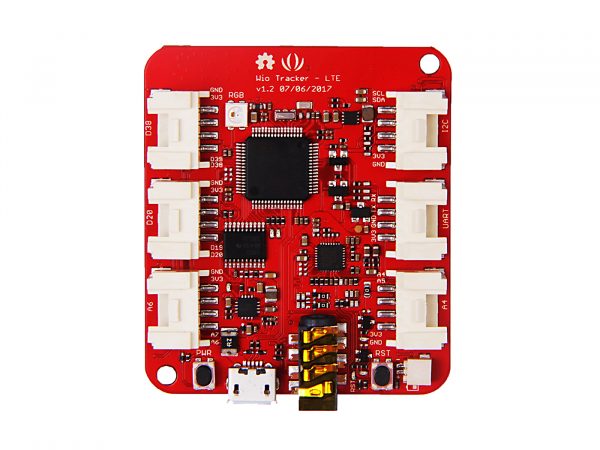

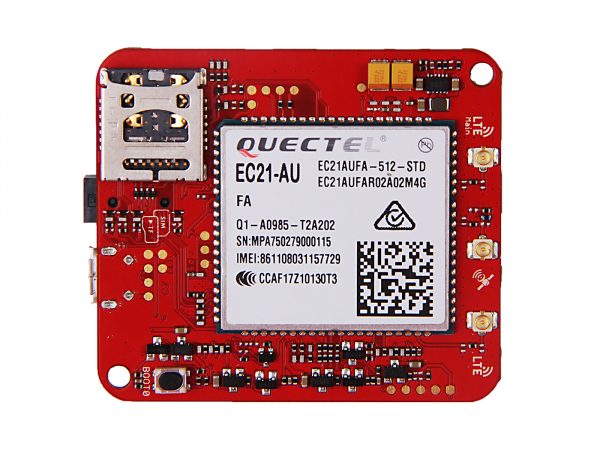

Wio 4G LTE  開發板 GPS GNSS 定位 追蹤 Arudino相容 JavaScript編程

Wio Tracker(無線輸入輸出)是一個開源網關,可以實現更快的IoT GPS解決方案。這是兼容Arduino和Grove的開發板,可以幫助您跟踪地球上幾乎任何移動的東西,然後以無線方式上傳這些數據.Wio LTE是Wio Tracker的LTE版本,所以現在我們已經有了Wio Tracker和LTE兩個版本,而LTE(4G)版本會有所不同。

比較Wio LTE和2G版本有三個主要的更新。首先,從它的名字我們知道Wio LTE支持比2G更快,更流行的LTE(4G)通信。其次,Wio LTE總共支持4種不同的GNSS-GPS ,北斗,GLONSS和伽利略,QZSS也被支持。有了更多的GNSS支持,定位將會更加準確。第三,Wio LTE的MCU升級為基於Cortex-M4的STM32,使得Wio LTE比2G版本快5倍。更重要的是,閃存和RAM也被提升到1Mbytes和192 + 4k字節。

除了三個主要更新之外,LTE版本幾乎與2G版本相同。如果您的項目使用的是2G版本,那麼更新到LTE版本將非常容易,因為我們已經準備了可移植和可擴展的AT命令庫。兼容Arduino和Grove可以使用眾多庫和支持社區。可以在板上使用的GPS庫不僅限於Arduino–如果您選擇使用C / C ++進行開發,它也可以正常工作。通過板載的6個Grove接口,開發人員可以創建180多種傳感器和執行器的任意組合,以構建項目並解決任何問題。簡化原型和開發階段是我們的目標。

Wio LTE非常適合戶外項目,其自帶的GPS天線設備可以連接到GPS衛星,並提供與其相連的物品的實時位置.LTE提供了寬帶寬,允許用戶和設備之間更快的交互。如果您打算建設自行車共享服務,追踪寵物或牲畜,定位車輛,甚至追踪孩子等項目,Wio LTE是最好的解決方案。

Wio LTE AU版本4G,Cat.1,GNSS,Espruino兼容

注意

  • Wio LTE產品的建議電源為5V / 2A; 當電流低於1A時,電路板可能無法上電。
  • 請務必插入3.7V鋰電池,以防USB電源不足。
  • 當信號不好時,呼叫時會有噪音。

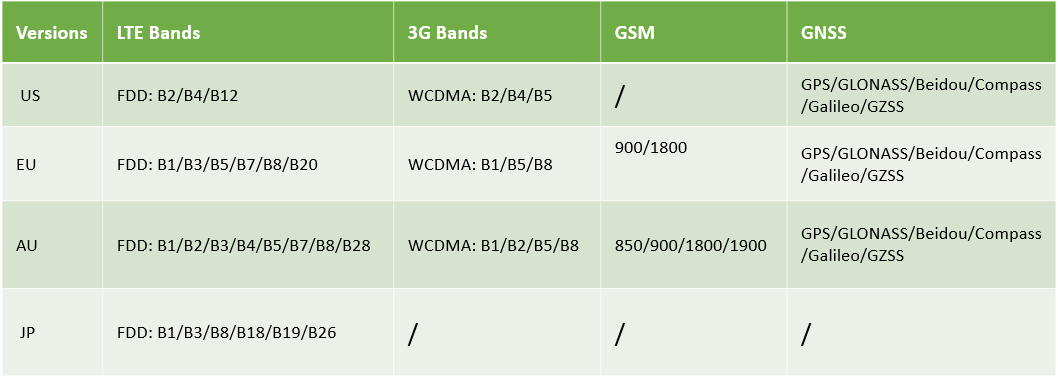

  • 我們為不同地區開發了4種不同版本的Wio LTE。這是Wio LTE AU版本,除此版本外,其他版本也支持GNSS,下表顯示了每個版本之間的差異。有關更多詳細信息,請參閱手冊


規格參數

項目 內容
微控制器 處理器 STM32F405RG,ARM 32位Cortex-M4,168MHZ
閃存 1MB
SRAM 192 + 4KB
工作電壓 3.3V
每個I / O引腳電流 7毫安
LTE LTE Cat.1 AT命令:3GPP TS27.007和增強型AT命令
數據 LTE-FDD最大10Mbps(DL)最大5Mbps(UL)
協議:TCP / UDP / PPP / FTP / HTTP / NTP /平/ QMI / HTTPS * / SMTP * / MMS * / FTPS * / SMTPS * / SSL *
短信 對等消息,SMS廣播,文本和PDU模式
聲音 迴聲消除,噪音消除
全球導航衛星系統 系統 GPS /北斗/ GLONASS /伽利略/ QZSS
精度 <2.5 m CEP
外部設備 格羅夫接口 2 x數字接口
2 x模擬接口
1 x UART
1個I2C
天線 2 x LTE天線
1 x GPS天線
其他 USB:供電和上傳程序
JST 1.0電池接口
3.5mm音頻接口
MCU復位按鈕,MCU Boot(DFU)按鈕,C21電源按鈕
1 x用戶自定義RGB LED SK6812
Nano SIM卡和TF卡二合一插槽
規格參數 54.7毫米
48.2毫米
重量

功耗

狀態 電流 電壓
正常啟動(啟動時) 700毫安 5V
啟動後(IDLE模式) 300毫安 5V
啟動後正常通信狀態(網絡傳輸狀態) 600mA到2A 5V
打電話和發短信(信號良好) 100-300mA 5V
深度睡眠模式,關閉所有功能,需要從外部喚醒(只能通過復位喚醒) 300uA 4.2V
MCU深度睡眠模式,喚醒引腳接到EC21模塊,由EC21模塊喚醒 至少300uA(需要測試) 4.2V

應用創意

  • 計步器
  • 智能滑雪
  • 智能兩輪車
  • 共享自行車
  • 寵物追踪器
  • 兒童定位手錶
  • 智能手錶
  • 運輸定位系統
  • 車輛定位系統
  • 財產安全



出貨清單

  • Wio 4G LTE 開發板 x1
  • LTE天線 x1
  • GPS天線 x1
  • 3.7V鋰電池 x1
  • 200mm Micro USB線 x1



Documents



=========================================================



Wio LTE AU Version- 4G, Cat.1, GNSS, Espruino Compatible

Wio Tracker (Wireless Input Output) is an open source gateway which enable faster IoT GPS solutions. It is Arduino and Grove compatible development boards that helps you track nearly any moving thing on the planet and then upload that data wirelessly. The Wio LTE is the LTE version of Wio Tracker, so now we’ve got 2 versions of Wio Tracker and the LTE (4G) version will make some differences.

There are three main updates comparing the Wio LTE to the 2G version. Firstly, from its name we know that the Wio LTE supports LTE (4G) communication which is much faster and popular than 2G. Secondly, the Wio LTE supports in total 4 different GNSS – GPS, Beidou, GLONSS and Galileo, the QZSS is also supported as bonus. With more GNSS support, positioning will be more accurate. Thirdly, the Wio LTE‘s MCU is upgraded to STM32, which is based on Cortex-M4, makes the Wio LTE 5 times faster than the 2G version. What’s more, the flash and RAM have also been raised to 1Mbytes and 192+4k bytes.

Apart from the three main updates, the LTE version is almost the same as the 2G version. If your project is using the 2G version, it would be very easy to update to the LTE version because we have prepared transplantable and expansible AT command library. The Arduino and Grove compatibility allows for quicker development through numerous libraries and a supportive community. The GPS library which will be available with the board is not just limited to Arduino – it can function just as well if you chose to develop in C/C++. With the onboard 6 Grove connections, developers can create any combination of our 180+ sensors and actuators to build project and solve any problem. Simplifying the prototyping and development phase is our goal.

The Wio LTE is well suited for outdoor projects where the device can connect to the GPS satellites and provide a real-time location of the item it is attached to. The LTE provides a wide bandwidth which allows much faster interaction between the user and device. If you are going to build projects like a bicycle sharing service, tracking pets or livestock, locating a vehicle, or even keeping track of a child, the Wio LTE is the best solution.

Note:

  • The suggest power supply for Wio LTE products is 5V/2A; The board may not be able to power up when the current is below 1A.
  • Please always plug a 3.7V Lipo battery in case USB power supply is not sufficient.
  • When the signal is not good, there will be noise while calling.
  • We have developed 4 different versions of Wio LTE for different regions. This is the Wio LTE AU version, except this version, the others also support GNSS, below table shows the difference between each version. For more detail information, please refer to the manual.


Features

  • Low-cost, low-power LTE connectivity optimized for broad- band IoT applications
  • Worldwide LTE and UMTS/HSPA+
  • Embedded power management unit (PMU) featuring ultra-low deep-sleep current consumption
  • GPS/BeiDou/GLONASS/Galileo and QZSS
  • Transplantable and expansible AT Command Library for Wio Tracker
  • Arduino IDE compatible
  • 6 Grove Connectors
  • Nano SIM and TF card 2 in 1 socket

Specification

Item Function Value
Microcontroller Processor STM32F405RG, ARM 32-bit Cortex-M4, 168MHZ
Flash Memory 1MB
SRAM 192+4KB
Operating Voltage 3.3V
DC Current per I/O Pin 7 mA
LTE LTE Cat.1 AT Command: 3GPP TS27.007 and enhanced AT Commands
Data LTE-FDD Max 10Mbps(DL) Max 5Mbps (UL)
Protocol: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/HTTPS*/SMTP*/MMS*/FTPS*/SMTPS*/SSL*
SMS Peer to Peer Message, SMS broadcast, Text and PDU mode
Audio Echo cancellation, Noise elimination
GNSS System GPS/BeiDou/GLONASS/Galileo/QZSS
Precision <2.5 m CEP
Peripheral Grove 2 x Digital Port
2 x Analog Port
1 x UART
1 x I2C
Antenna 2 x LTE Antenna
1 x GPS Antenna
Others USB: Power supply and upload program
JST 1.0 connecter for battery
3.5mm Audio Jack
MCU Reset Button, MCU Boot(DFU) Button,EC21 Power Button
1 x User RGB LED SK6812
Nano SIM and TF card 2 in 1 socket
Size Length 54.7mm
Width 48.2mm
Weight 18g

Power Consumption

Status Current Voltage
Normal boot(boot moment) 700mA 5V
After boot(IDLE mode) 300mA 5V
After the boot, the normal communication status (network transmission function) 600mA or so, the peak reaches 2A 5V
Call and SMS(signal better) 100-300mA 5V
Deep sleep mode, turn off all functions, require external wake-up (wake only by Reset) 300uA 4.2V
MCU Deep Sleep mode, wake-up pin connected to module, wake-up via module over 300uA (requires testing) 4.2V



Application Ideas

  • Pedometer
  • Smart ski
  • Smart two-wheeler
  • Sharing bicycle
  • Pet tracking machine
  • Children location watch
  • Smart watch
  • Transportation location system
  • Vehicle location system
  • Property safety

Part List

Wio LTE AU Version- 4G, Cat.1, GNSS, Espruino Compatible 1
LTE Antenna 1
GPS Antenna 1
Lithium Polymer Battery 3.7V-1050mAH;46.5*45*4.8mm JST1.0 1
Micro USB cable,200mm in length 1
