TB6612FNG Dual Motor Driver 超小設計雙馬達驅動板 CJMCU

商品說明

TB6612FNG Dual Motor Driver 超小設計雙馬達驅動板 CJMCU

TB6612FNG電機驅動模塊小體積高性能超L298N 自平衡小車3PI配套

該模塊相對於傳統的L298N效率上提高很多,體積上也大幅度減少，在額定範圍內，芯片基本不發熱，當然也就顯得更加嬌貴,所以我們建議有一定動手能力的朋友使用,接線的時候務必細心細心再細心，注意正負極性。

Description:  The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.CJMCU.

Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

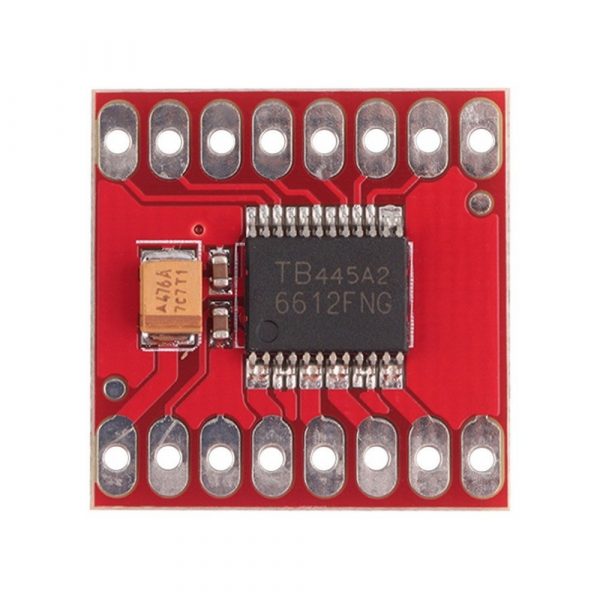

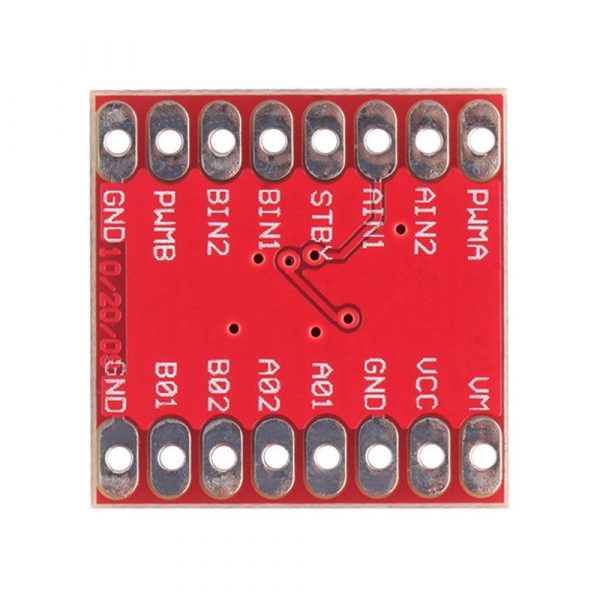

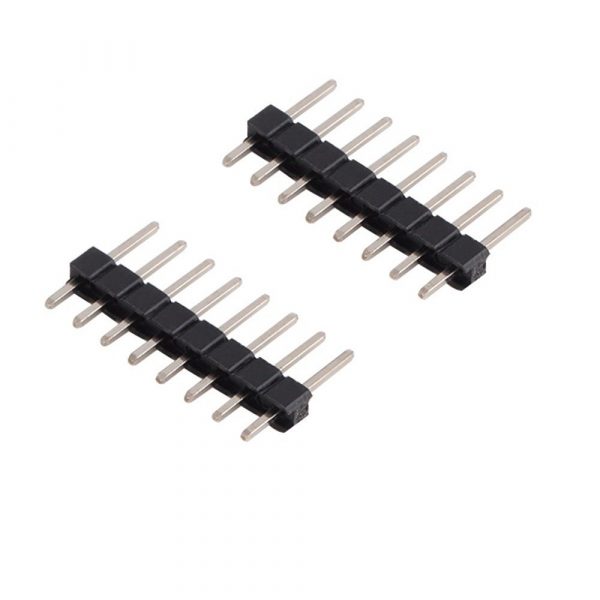

Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers ; the pins are arranged such that input pins are on one side and output pins are on the other. Features:

• Power supply voltage: VM=15V max, VCC=2.7-5.5V
• Output current: Iout=1.2A(average) / 3.2A (peak)
• Standby control to save power
• CW/CCW/short brake/stop motor control modes
• Built-in thermal shutdown circuit and low voltage detecting circuit
• All pins of the TB6612FNG broken out to 0.1″ spaced pins
• Filtering capacitors on both supply lines
