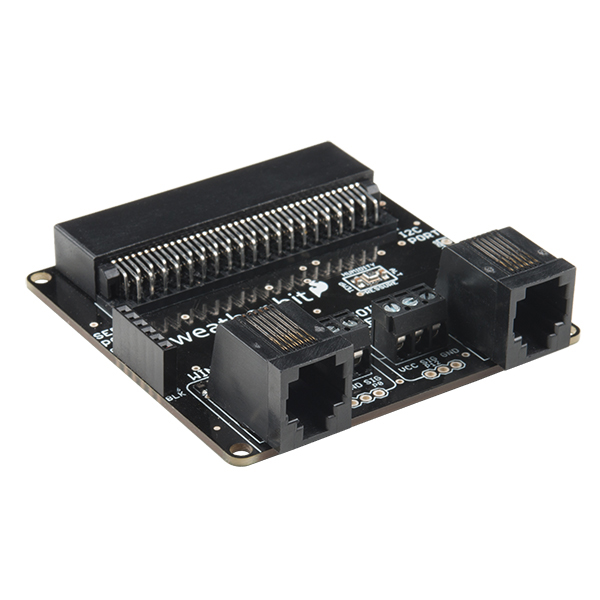

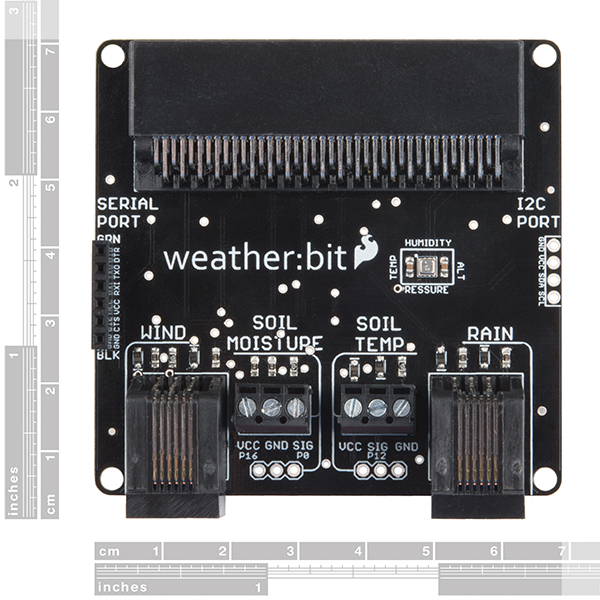

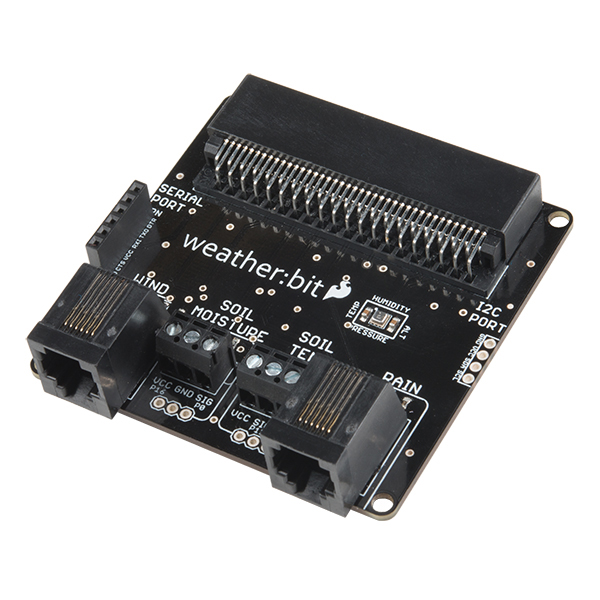

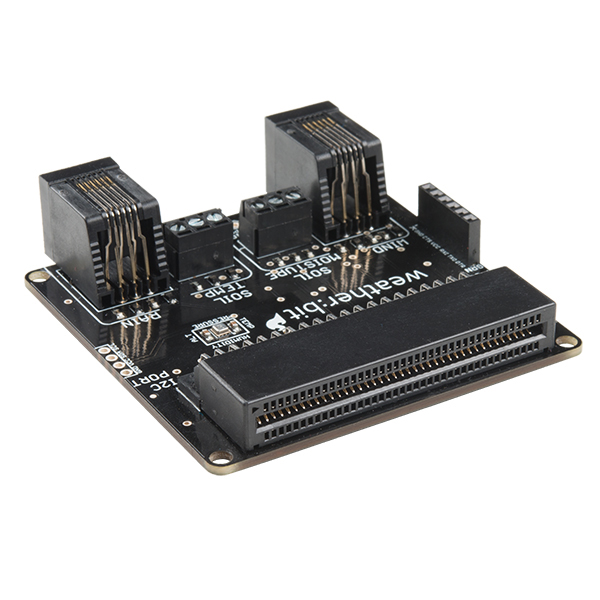

SparkFun weather:bit 氣象偵測擴充板

Weather：bit 擴充板，與 micro：bit  結合使用時可為您提供功能齊全的氣象站。

你可測得氣壓，相對濕度和溫度讀數。此載板上還有可擴充的感測器，如風速，方向，雨量計和土壤讀數等功能。

通過電路板頂部的邊緣連接器連接到 micro：bit ，使設置變得簡單。這創建了一種方便的方式來交換 micro：bit 進行編程，同時仍然提供與 micro：bit 上所有不同引腳的可靠連接。包括串行和I ² C端口，可以使用來優化連接。

特徵

• 板載溫度，濕度，壓力和光線傳感器
• 土壤濕度和土壤溫度的連接器

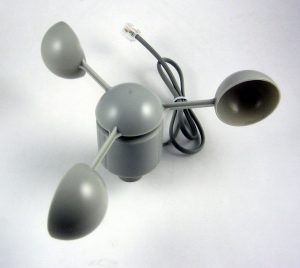

• 用於風速，風向和雨量計的連接器
• 邊緣連接器，便於micro：bit集成

Documents

• 概要
• 鷹檔案
• 實驗指南
• micro：bit入門指南
• 關於微：位頁
• 微：位應用
• GitHub上

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

SparkFun weather:bit

The SparkFun weather:bit is a fully loaded “carrier” board for the micro:bit that, when combined with the micro:bit, provides you with a fully functional weather station. With the weather:bit you will have access to barometric pressure, relative humidity and temperature readings. There are also connections on this carrier board to optional sensors such as wind speed, direction, rain gauge and soil readings! The micro:bit has a lot of features and a lot of potential for weather data collection.

The weather:bit connects to the micro:bit via an edge connector at the top of the board, making setup easy. This creates a handy way to swap out micro:bits for programming, while still providing reliable connections to all of the different pins on the micro:bit. We have also included serial and I²C ports on the weather:bit for optimized connectivity if you so choose.

Features

• Onboard temperature, humidity, pressure and light sensor
• Connectors for soil moisture and soil temperature
• Connectors for wind speed, direction and rainfall gauges
• Edge connector for easy micro:bit integration

Documents

• Schematic
• Eagle Files
• Experiment Guide
• micro:bit Getting Started Guide
• About micro:bit Page
• micro:bit Apps
• GitHub
