Micro:bit Breakout GPIO擴展板 腳位全引出 SparkFun美國製

商品說明

micro:bit Breakout 擴展板 腳位全引出

還在用鱷魚夾來做實驗嗎？使用 Sparkfun 擴展板, 擴展板將 Micro:bit  所有引腳倒出並允許到I連接擴展的開發平台的能力I2C和SPI總線，您可以輕鬆將 Micro:bit 銜接杜邦線或透過麵包版上做各種實驗。micro:bit Breakout 實驗擴展板將所有21個GPIO引腳，電源和地線分解為預焊0.1“插頭。



Documents

• Schematic
• Eagle Files
• Hookup Guide
• micro:bit Guide
• GitHub



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

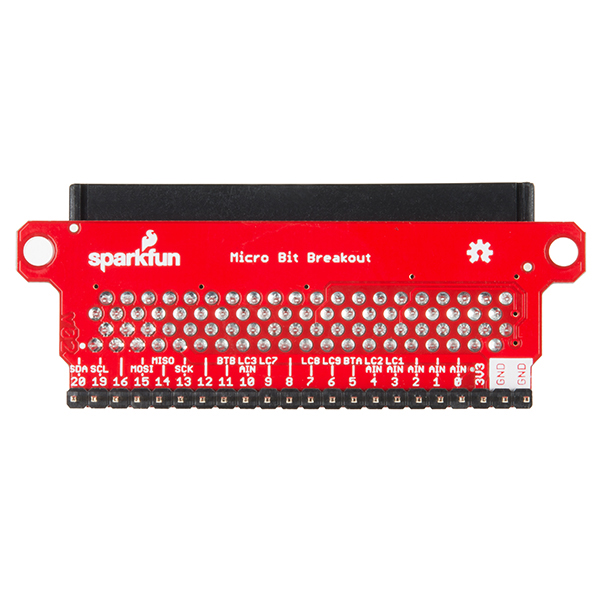

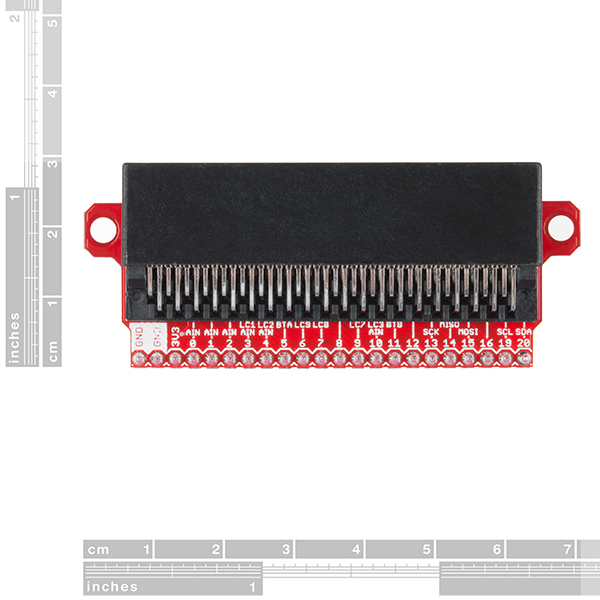

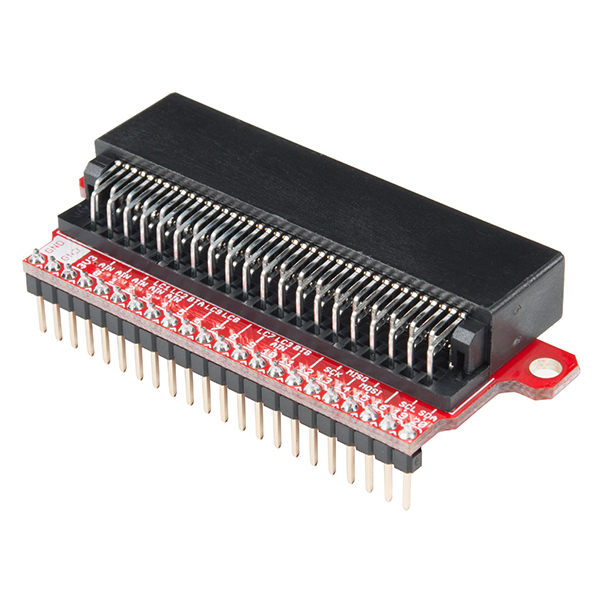

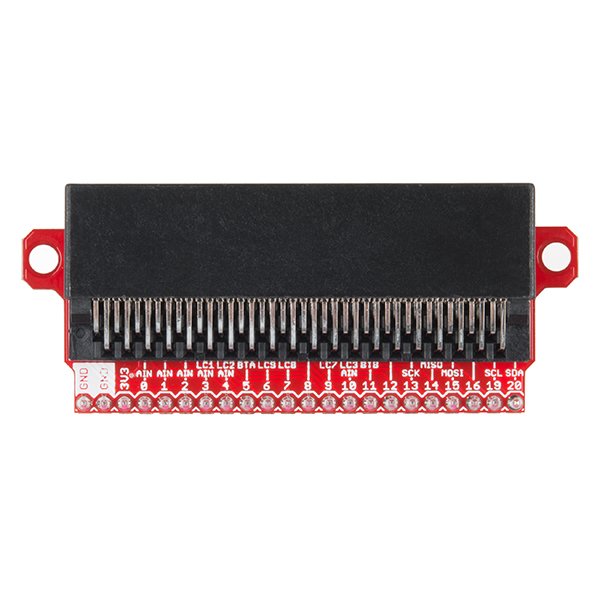

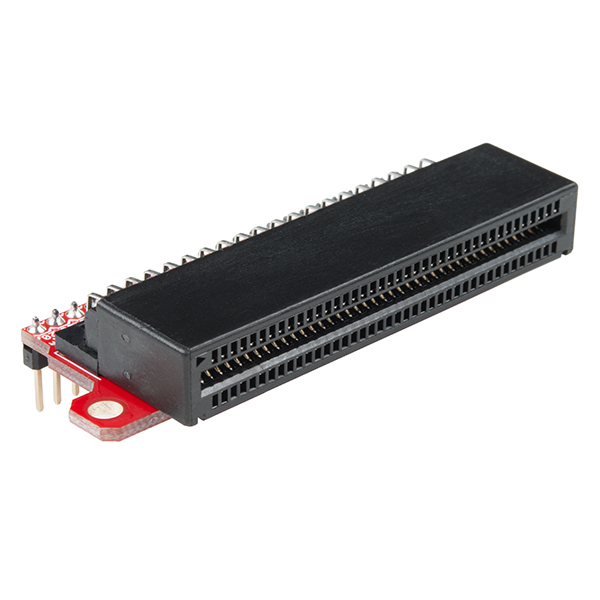

SparkFun micro:bit Breakout (with Headers)

The SparkFun micro:bit Breakout is a board that connects to the BBC micro:bit and expands the capabilities of the development platform by providing access to more pins and allowing for connections to the I²C and SPI buses. This breakout board for the micro:bit’s edge connector allows intermediate and advanced users to connect the micro:bit to breadboards and other sensors, motors, LEDs and more!

The micro:bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro:bit breakout we have broken out all 21 GPIO pins, power and ground to a pre-soldered 0.1″ header. With this breakout you will be able to unlock the full potential of your micro:bit!
