商品說明

ESP32 Thing 物聯網 Wifi / BT 開發板 SparkFun 原裝進口

SparkFun ESP32 Thing是Espressif的ESP32的全面開發平台，ESP32是其受歡迎的ESP8266的充電版本。像8266，ESP32是一個WiFi兼容的微控制器，但它增加了對藍牙低功耗（即BLE，BT4.0，藍牙智能）和近30個I / O引腳的支持。ESP32的功能和多功能性將使它成為物聯網和連接項目的基礎多年來。

為什麼叫名字？我們深愛地稱之為“Thing”，因為它是您的物聯網項目的完美基礎。事情從打開LED到發布數據與phant.io的一切，可以像任何微控制器一樣編程。你甚至可以通過安裝ESP32 Arduino Core通過Arduino IDE 編程 Thing 。

SparkFun ESP32 Thing為ESP32配備了在 wonderchip 上編程，運行和開發所需的一切。除了WiFi / BLE SoC之外，Thing還包括一個FTDI FT231x，它將USB轉換為串行，並允許您的計算機對微控制器進行編程和通信。它還具有LiPo充電器，因此您的ESP32項目可以是電池供電和真正的無線。此外，該板包括一些LED和按鈕，以幫助您的發展。

Features:

• Dual-core Tensilica LX6 microprocessor
• Up to 240MHz clock frequency
• 520kB internal SRAM
• Integrated 802.11 BGN WiFi transceiver
• Integrated dual-mode Bluetooth (classic and BLE)
• 2.2 to 3.6V operating range
• 2.5 µA deep sleep current
• 28 GPIO
• 10-electrode capacitive touch support
• Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
• 4MB Flash memory
• Integrated LiPo Battery Charger

Documents:

• Schematic
• Eagle Files
• Hookup Guide

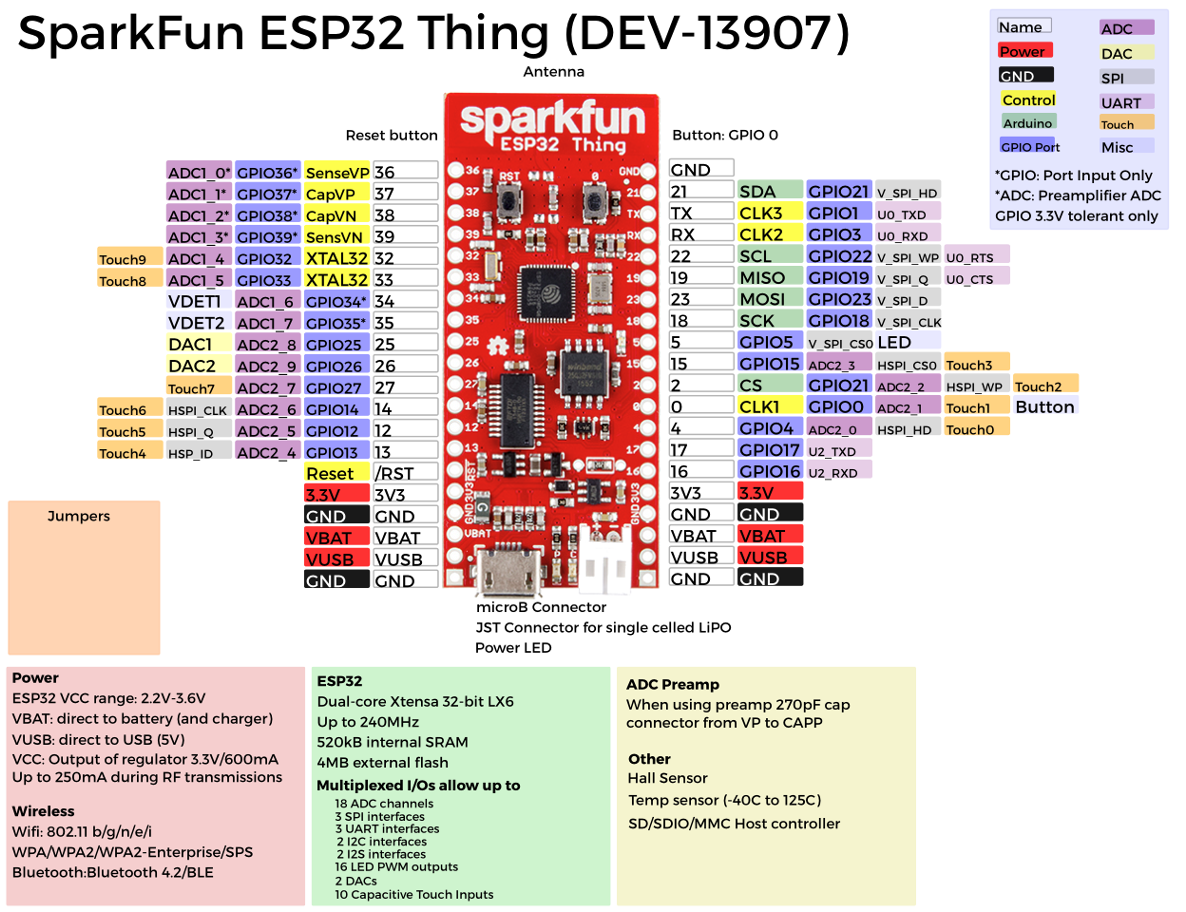

• Graphical Datasheet
• Datasheet (ESP32)
• ESP32.com
• Espressif ESP32 Resource Page
• GitHub

開始使用ESP32 THING指南

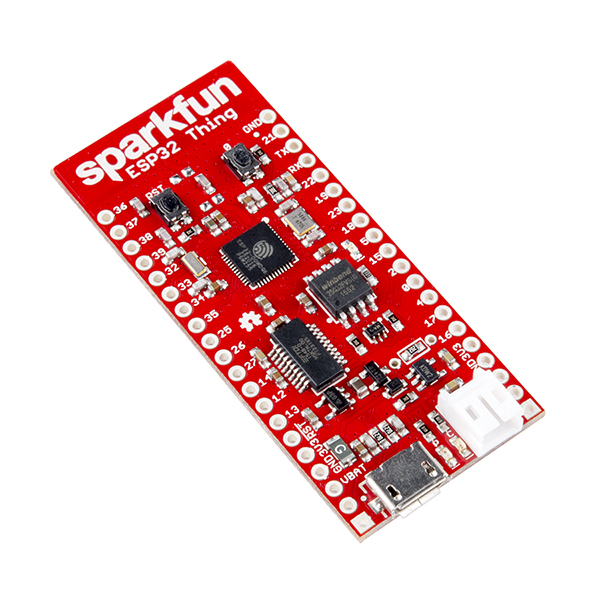

SparkFun ESP32 Thing

The SparkFun ESP32 Thing is a comprehensive development platform for Espressif’s ESP32, their super-charged version of the popular ESP8266. Like the 8266, the ESP32 is a WiFi-compatible microcontroller, but to that it adds support for Bluetooth low-energy (i.e BLE, BT4.0, Bluetooth Smart), and nearly 30 I/O pins. The ESP32’s power and versatility will make it the foundation of IoT and connected projects for many years to come.

Why the name? We lovingly call it the “Thing” because it’s the perfect foundation for your Internet of Things project. The Thing does everything from turning on an LED to posting data with phant.io, and can be programmed just like any microcontroller. You can even program the Thing through the Arduino IDE by installing the ESP32 Arduino Core.

The SparkFun ESP32 Thing equips the ESP32 with everything necessary to program, run and develop on the wonderchip. In addition to the WiFi/BLE SoC, the Thing includes an FTDI FT231x, which converts USB to serial, and allows your computer to program and communicate with the microcontroller. It also features a LiPo charger, so your ESP32 project can be battery-powered and truly wireless. Additionally, the board includes a handful of LEDs and buttons to aid in your development.
