ReSpeaker USB Mic Array 遠場麥克風AI語音識別開發板 支援樹莓派4B seeed

商品說明

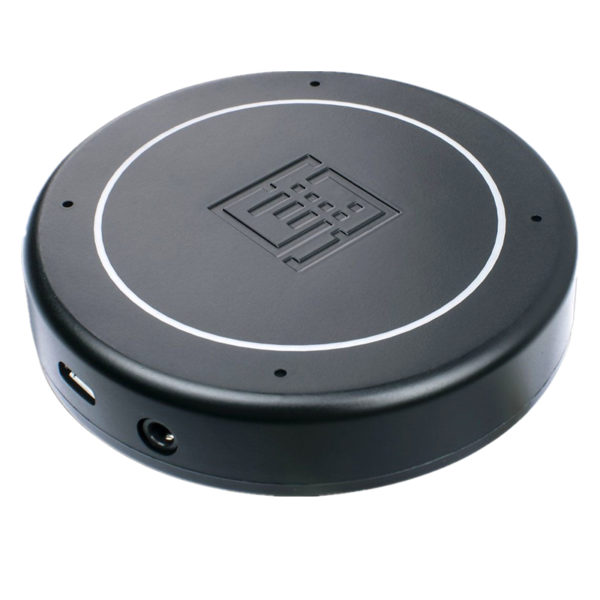

ReSpeaker USB Mic Array 遠場麥克風AI語音識別開發板 支援樹莓派4B

Respeaker Mic Array V2.0以開發板的形式備受AI語音服務機器人專案用戶喜愛。隨著應用領域逐漸擴展，符合聲學結構帶外殼的設備，越來越重要，這可有效幫助保護設備，同時理想的發揮Respeaker Mic Array的遠場語音麥克風功能。

對此Seeed提供了ReSpeaker USB Mic Array的解決方案：

• 具有精心設計的聲學結構，開箱即用，為客戶提供了靈活的內置解決方案。
• 提供注模外殼，節省了項目上市時間和模具成本。

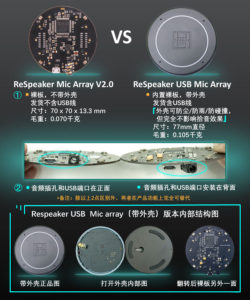

ReSpeaker USB Mic Array和Respeaker Mic Array V2.0內部PCB之間的區別



適用場景

• 會議室中的麥克風設計：用作會議室中的麥克風設備，可供5至6位與會者使用。
• 智能家居：演示如何打開/關閉燈
• 設備自動化：在咖啡機上執行Snips命令



特徵

• 即插即用（無需驅動程式）
• 與支持OTG的Windows 10/8/7，Mac，Linux和Android相容。
• 支持樹莓派Raspberry Pi 3B/3B+/4B；
• 遠距離語音拾取長達5m，並支援360°拾取模式



聲學演算法

• DOA聲音方向檢測；
• AEC（自動回聲消除）；
• AGC（自動增益控制）；
• NS（抑制噪音）
• 內置音頻插孔，可插入耳機或揚聲器（不包括揚聲器）



應用領域

• 語音接聽裝置
• 家庭/辦公室自動化設備
• 車載語音助手
• 醫療設備
• 語音互動機器人
• 其他應用

溫馨提示**我們建議您使用Linux進行固件更新。

規格參數

• XMOS的XVF-3000
• 4個高性能數位麥克風
• 支援遠場語音捕獲
• 板載語音演算法
• 12個可編程RGB LED指示燈
• 麥克風：ST MP34DT01TR-M
• 靈敏度：-26 dBFS（全向）
• 聲學超載點：120 dBSPL
• 信噪比：63 dB
• 電源：Micro USB
• 尺寸：70mm（直徑）
• 3.5毫米音頻插孔輸出插座



出貨清單

ReSpeaker USB 麥克風	1
USB A 型轉 Micro USB 數據線	1
說明卡	1



Documents



ReSpeaker USB Mic Array

An out-of-the-box voice pick-up device is the voice of the customer.

During the past year, Respeaker Mic Array V2.0  has been sold out for more than 10K units in the format of the development board. Customers keep requesting a complete device with an enclosure, which is challenging for them to design it, considering the acoustic principles.

And here Seeed provides the answer with ReSpeaker USB Mic Array:

• An out-of-box device with a well-designed acoustic structure brings the flexibility for the customer to build in their solution.
• Mold injected enclosure available, saves the time to go to the market and the mold cost.

The difference between the PCBA inside ReSpeaker USB Mic Array and Respeaker Mic Array V2.0:

• Optimized power circuit

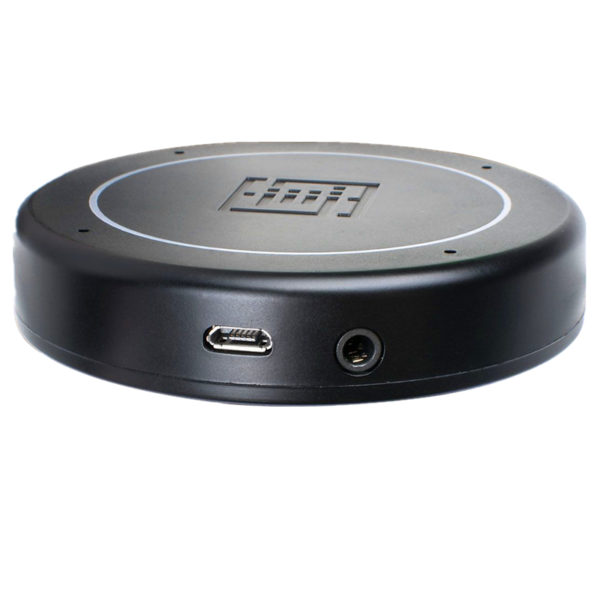

• Move the audio jack and micro USB port to the backside.

Applicable Scenario

• Microphone devise in the meeting room
• Smart home
• Device automation

Features

• Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG.
• Voice Pick-up device, Far-field voice pick-up up to 5m and supports 360° pick-up pattern
• Acoustic algorithms implemented:
• DOA(Direction of Arrival),
• AEC(Automatic Echo Cancellation),
• AGC(Automatic Gain Control),
• NS(Noise Suppression)
• Built-in audio jack, which allows for plugging in headphones or speakers (speaker not included)

Applications





When it comes to development we believe you should have as many options as possible. The ReSpeaker USB Mic Array is able to work with most modern Linux, macOS, and Windows systems*.

*We do recommend Linux for firmware updates.



We are working hard to ensure the setup is simple. The documentation on our wiki will help you get up and running quickly, and should unknown issues pop up our tech support team is ready to help. You can ask questions in our ReSpeaker forum, which is checked daily. You can also check out the GitHub for more support.



• XVF-3000 from XMOS
• 4 High Performance Digital Microphones
• Supports Far-field Voice Capture
• Speech Algorithms On-Chip
• 12 Programmable RGB LED Indicators
• Microphones: MEMS MSM261D4030H1CPM
• Sensitivity: -26 dBFS (Omnidirectional)
• Acoustic Overload Point: 120 dBSPL
• SNR: 63 dB
• Power Supply: 5V DC from Micro USB or Expansion Header

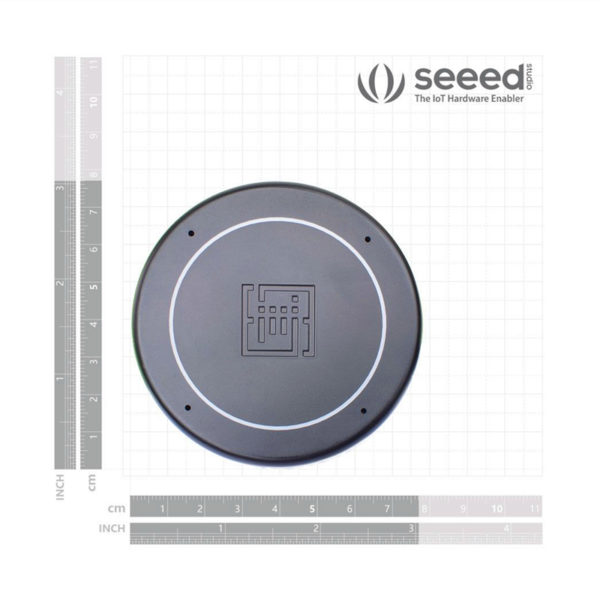

• Dimensions: 77mm (Diameter)
• 3.5mm Audio Jack Output Socket

Technical Details
Dimentions	77mm (Diameter)
Weight (N.W.)	43.6g
Weight (G.W.)	104.2g
Battery	Exclude
Part List
ReSpeaker USB Mic Array	1
USB Type A to Micro USB cable	1
Instruction Card	1
