RELAYplate 樹莓派專用 7 路繼電器擴展板 可堆疊到最高 56 路繼電器 UL 60950 安規 SparkFun原廠

商品說明

RELAYplate 樹莓派專用 7 路繼電器擴展板 可堆疊到最高 56 路繼電器 UL 60950 安規

RELAYplate 是 Raspberry Pi 樹莓派的第一個專用繼電器擴展板，符合滿足 UL 60950 的安全規範要求，同時能夠切換 120v交流電。七個繼電器中的每一個均通過UL額定值在120v交流電或30v直流電上切換1安培。而且，像所有Pi板一樣，您可以堆疊這些板，使用八塊板將繼電器數增加到 56 路。RELAY板與DAQCplate和MOTORplate兼容，可以創建完美的電路板來控制您的項目。

最高可以堆疊擴充到 56 路繼電器

特徵

• 七個單刀單擲繼電器
• 額定電壓為120伏交流電或30伏直流電
• 電流高達1安培
• 方便的無螺紋接線端子
• 最多可將八個RELAY板堆疊在一起，提供56個繼電器
• 單個RELAYplate將從Raspberry Pi 5VDC電源運行
• 提供用於堆疊多個RELAY板的輔助電源連接器
• 包括可編程LED
• 七個LED信號器提供可視中繼狀態
• 旨在滿足UL標準60950的嚴格安全要求

Documents

• 用戶指南
• RELAYplate示例代碼

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

RELAYplate

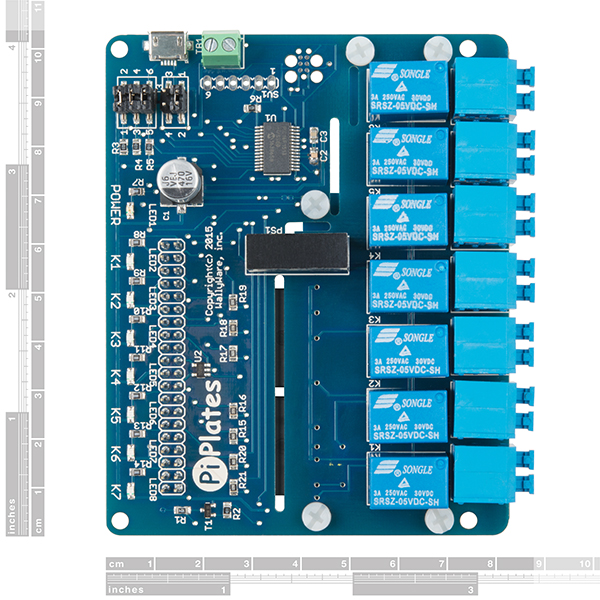

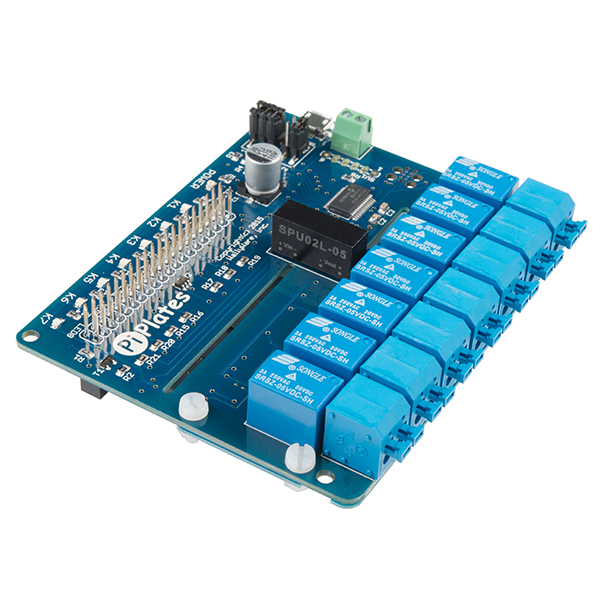

The RELAYplate from Pi-Plates is the first dedicated relay board for the Raspberry Pi designed to meet the safety requirements of UL 60950 while being capable of switching 120 volts AC. Each of the seven relays is UL rated to switch 1 amp at 120volts AC or 30 volts DC. And, like all Pi-Plates, you can stack these boards to increase your relay count to 56 using eight plates. The RELAYplate board is compatible with the DAQCplate and MOTORplate, allowing you to create the perfect stack of boards to control your project.

Pi-Plates are a family of stackable and interchangeable add-on circuit boards that allow you to interact with the outside world using your Raspberry Pi. Every Pi-Plate is designed to provide a robust set of features at minimal cost while using the fewest pins possible on the RPi header. Pi-Plates are mechanically and electrically compatible with all revisions of the Raspberry Pi with 40 pin headers (including the Pi 3 Model B and Pi Zero) and are designed to satisfy the needs of hobbyists, experimenters and professionals.

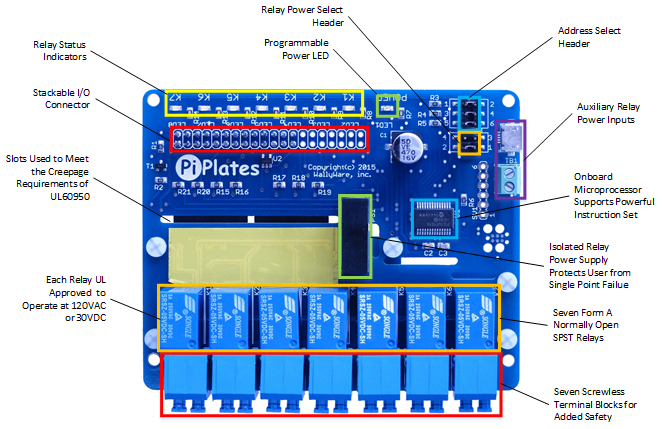

Features

• Seven single-pole, single-throw relays
• Rated at 120 volts AC or 30 volts DC
• Currents up to 1 amp
• Convenient screwless terminal blocks
• Up to eight RELAYplates can be stacked together, providing 56 relays
• A single RELAYplate will run from the Raspberry Pi 5VDC supply
• Auxiliary power connectors provided for stacking multiple RELAYplates
• Includes programmable LED
• Seven LED annunciators provide visual relay status
• Designed to meet the stringent safety requirements of UL standard 60950

Documents

• User Guide
• RELAYplate Example Code
