Raspberry Pi Zero W Budget Pack 套件, 樹莓派 2017 推出新產品 內建 Wi-Fi 及藍牙模組
Raspberry Pi Zero W Budget Pack 樹莓派 2017 推出新產品 內建 Wi-Fi 及藍牙模組 ★ 新款配紅白機殼,不是透明機殼
- 商品說明
商品說明
Raspberry Pi Zero W Budget Pack 樹莓派 2017 推出新產品 內建 Wi-Fi 及藍牙模組

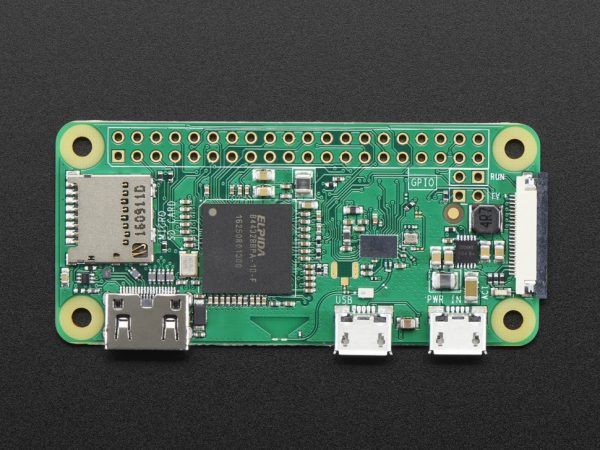

Raspberry Pi Zero W 的基本規格與 Raspberry Pi Zero 相同,配備博通(Broadcom)出產的 ARM 架構的 BCM2835 處理器(1GHz)、512MB 的記憶體。提供迷你 HDMI 接孔、Micro-USB On-The-Go 接孔、微型 USB 電源接孔、HAT 相容的 40 針接頭;在無線方面,採用的是與 Raspberry Pi 3 相同的賽普拉斯 CYW43438 無線晶片,以提供 802.11n 無線局域網和藍牙 4.0 連接。
Raspberry Pi Zero W 硬體規格
- 1GHz,單核CPU
- 512MB RAM
- 迷你HDMI端口
- 微型USB On-The-Go端口
- 微型USB電源
- HAT兼容的40針頭
- 複合視頻和復位頭
- CSI相機連接器
- 802.11n無線局域網
- 藍牙4.0
Raspberry Pi Zero W 套件包含下述組件

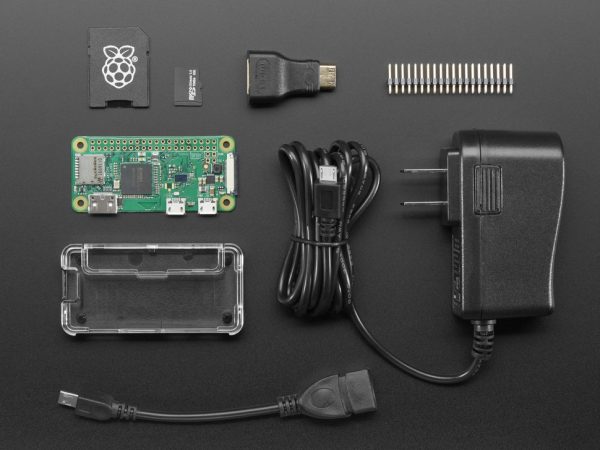

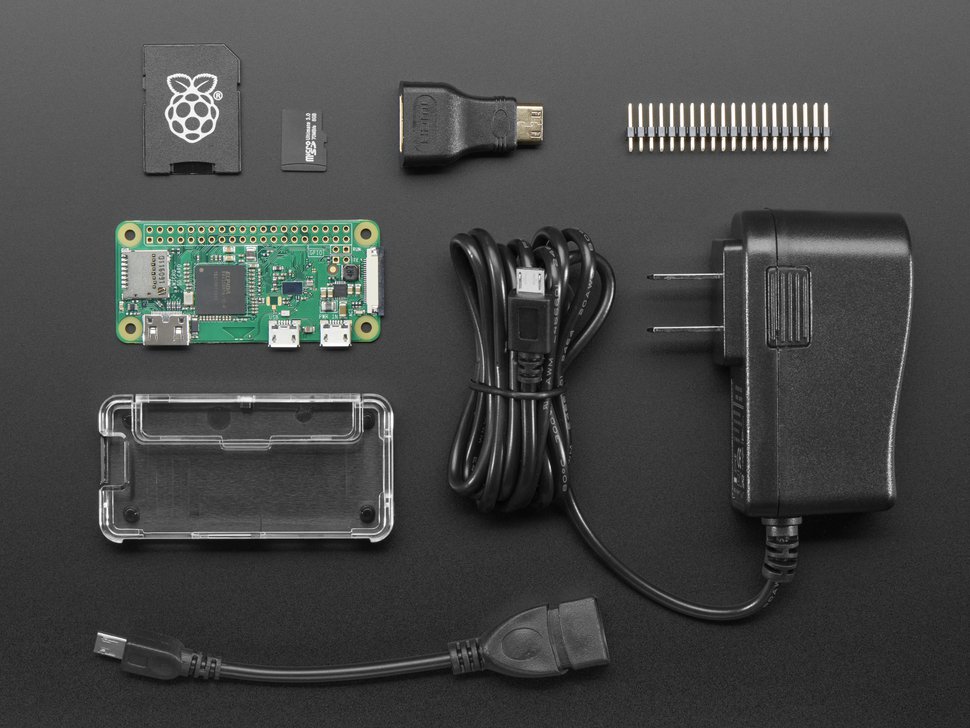

Raspberry Pi Zero W Budget Pack 包括:
- Raspberry Pi Zero W – 低成本遊戲改變產品的類型Raspberry Pi已知 – 超輕,超精益微計算機,我們已經知道和低,但現在有內置的WiFi。
- 迷你HDMI到HDMI 轉接模組 – 將允許您將Zero上的小端口轉換為標準尺寸的HDMI插孔。您可以從這台小電腦中獲得1080P HDMI視頻+音頻!
- USB OTG電纜 – 可以將普通的USB設備(如WiFi加密狗,USB集線器,鍵盤,鼠標等)插入零。
- 16GB SD卡 – 由於NooB最近已更新以添加Pi Zero W支持,因此如果您的Pi Zero不運行,我們建議您從頭開始重新格式化/刻錄NooB!

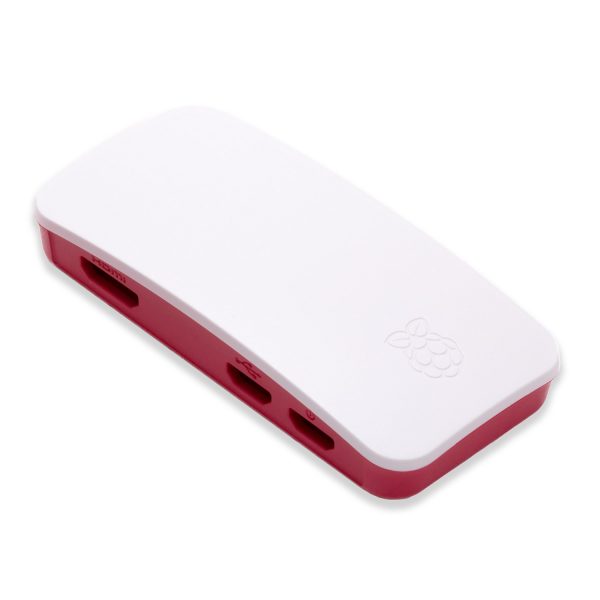

- Pi Zero Enclosure 红白機殼 – 堅固的红白塑料外殼。保持您的Pi Zero安全和時尚。新款配紅白機殼,不是透明機殼。
- 5V 1A電源 和 USB A / Micro B電纜 或5V 2A電源,帶有Micro USB電纜 – 通過穩定的5V電源(不會變化或下垂)為Pi Zero加電的最佳方式。
- 2×20公頭插頭條 – 焊接到插入Pi HAT,GPIO電纜等,就像您將進入正常的Pi。
If you didn’t think that the Raspberry Pi Zero could possibly get any better, then boy do we have a pleasant surprise for you! The new Raspberry Pi Zero W offers all the benefits of the Pi Zero v1.3, but with one big difference – built-in WiFi!
More specifically, this giant upgrade is the addition of a BCM43143 WiFi chip BUILT-IN to your Raspberry Pi Zero – just like the Pi 3! No more pesky WiFi adapters – this Pi is WiFi ready. There’s also Bluetooth Low Energy (BLE) on board making the Pi an excellent IoT solution (BLE support is still in the works, software-wise).
At first glance, the Pi Zero W looks just like the Raspberry Pi Zero v1.3 we know and love. But when we started to think of the added convenience of not having to worry about hooking up a WiFi dongle or Ethernet cable – and what a well-chosen set of accessories could add – we realized the appeal. And then we saw the price…could it be true? Yes!
This is the slimmest, most pared down Raspberry Pi to date. It’s kind of like the little cousin to the Pi 3 – with just a micro SD card slot, a mini HDMI port, two micro USB ports (one for power, one for USB), and 512MB of RAM. It has a single-core 1 GHz processor chip, similar to the Pi A+ and B+.
The best part about all this is that the Pi Zero W keeps the same shape, connectors, and mounting holes as the Pi Zero v1.3. 99% of cases and accessories will still be fully compatible with both the Pi Zero W and v1.3 – though if you have a case with a metal top there might be some WiFi chip difficulties.
