樹莓派 LoRa / GPS 擴展版 868M frequency 樹莓派專用 Lora / GPS 擴展版

-42%

樹莓派 LoRa / GPS 擴展版 868M frequency 樹莓派專用 Lora / GPS 擴展版

NT$2,048 NT$1,190 未稅

樹莓派 LoRa/GPS 擴展版  –  868M frequency 樹莓派專用 Lora / GPS 擴展版

  • Raspberry pi Lora和GPS的擴展版
  • 頻率:868兆赫
  • Raspberry Pi 的2 model B / Raspberry Pi 3 完全相容
  • FSK, GFSK, MSK, GMSK, LoRa™and OOK modulation
  • EASY™, advanced AGPS technology 無需外部記憶體

尚有庫存

貨號: 113990254(C3-3) 分類: , , 標籤: , , , , ,
  • 商品說明
  • 評論 (0)

商品說明

樹莓派 LoRa/GPS HAT –  868M frequency 樹莓派專用 Lora / GPS 擴展版

Raspberry Pi LoRa/GPS HAT – support 868M frequency

  • Raspberry pi Lora和GPS的擴展版
  • 頻率:868兆赫
  • Raspberry Pi 的2 model B / Raspberry Pi 3 完全相容
  • FSK, GFSK, MSK, GMSK, LoRa™and OOK modulation
  • EASY™, advanced AGPS technology 無需外部記憶體

Dragino Lora / GPS 擴展版 樹莓派 專用 LoRaWan和GPS擴展模組。本產品是專門為樹莓派用戶所推出的 LoRaWAN 解決方案。

Raspberry pi Lora和GPS的擴展版是基於sx1276 / sx1278收發器。添加L80 GPS(基於 MTK mt3339 核心)是專為使用GPS通過串列埠的Raspberry Pi的如時間一般應用或應用需要GPS資訊連接的應用程序。Raspberry pi Lora和GPS的擴展版的LoRa™遠程數據機提供超遠距離擴頻通信抗干擾性同時降低電流消耗的收發器。Raspberry pi Lora和GPS的擴展版可以實現靈敏度過度使用資料低成本晶體和比爾148dbm。高靈敏度相結合的綜合性20 dBm的功率放大器產生的行業領先的連結預算做任何需要的範圍或魯棒性優化。LoRa™還提供顯著的優勢在選擇性阻斷和比傳統的調製科技,解决了傳統設計的範圍之間的妥協,抗干擾性和能量消耗。

擴展版可以計算和預測自動使用星曆數據軌道(最多3天)存儲在內部記憶體,所以帽子可以定位快即使在室內信號電平低功耗。隨著科技的alwayslocate™,Raspberry pi Lora和GPS的擴展版能自我調整地調整開/關根據環境和運動的條件下實現定位精度和功耗之間的平衡時間。GPS天線也支持自動切換功能。它可以實現內部天線和外部天線之間的切換,在切換過程中保持定位。

原廠技術文件與教學 http://wiki.dragino.com/index.php?title=Lora/GPS_HAT

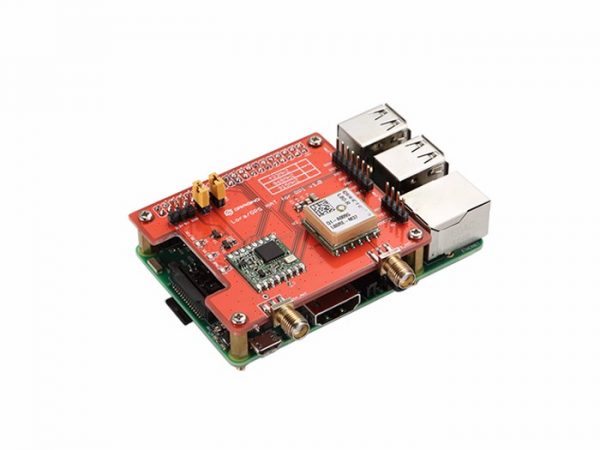

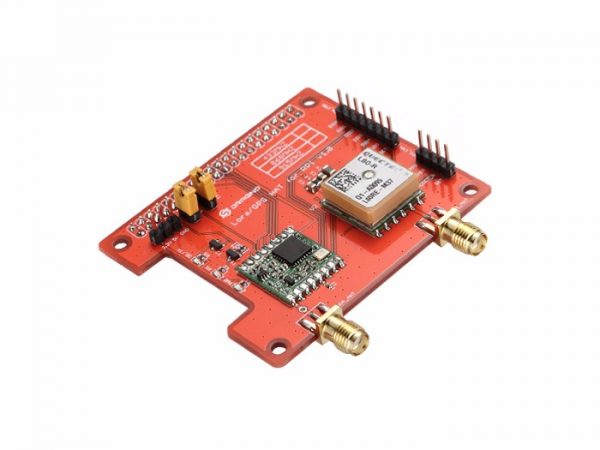

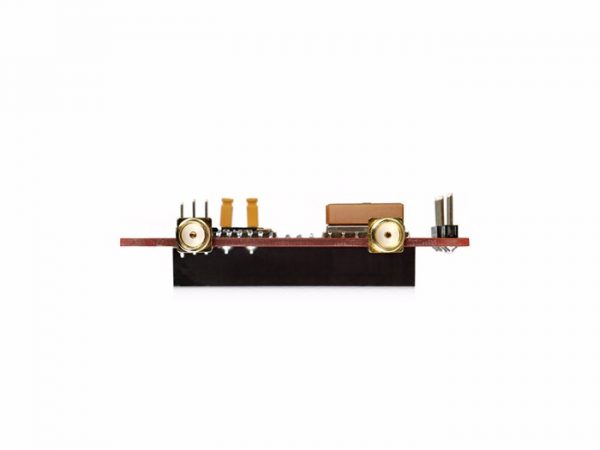

樹莓派 LoRa / GPS 擴展版

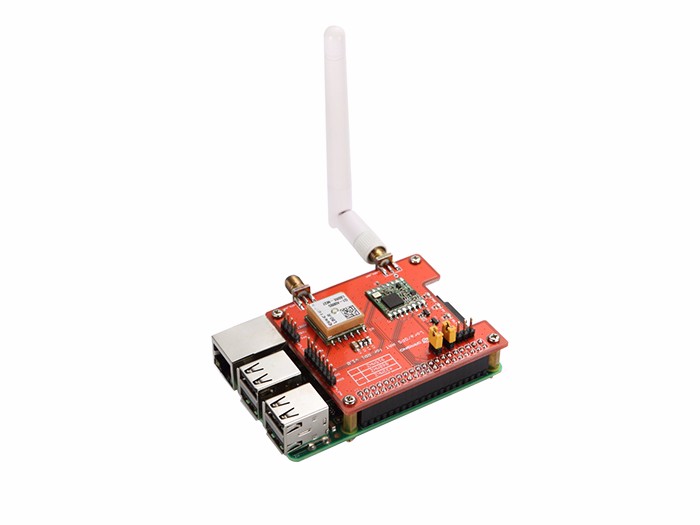

注意!本示意圖是展示擴展版與樹莓派結合時的樣貌,本產品不包含樹莓派開發版。

Description

The Dragino Lora/GPS HAT is an expansion module for LoRaWan and GPS uses with the Raspberry Pi. This product is intended for those interested in developing LoRaWAN solutions.

The Lora/GPS HAT is based on the SX1276/SX1278 transceiver. The add on L80 GPS (Base on MTK MT3339) is designed for applications that use a GPS connected via the serial ports to the Raspberry Pi such as timing applications or general applications that require GPS information.

The transceivers of the Lora/GPS HAT feature the LoRa™ long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. The Lora/GPD HAT can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRa™ also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

This board can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal flash memory, so the HAT can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, the Lora/GPS HAT can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions. The GPS also supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna.Moreover, it keeps positioning during the switching process.

FEATURES

  • Frequency Band: 868 MHZ/433 MHZ/915 MHZ(Pre-configure in factory)
  • Compatible with Raspberry Pi 2 Model B/Raspberry Pi 3.
  • LoRa™ Modem
  • FSK, GFSK, MSK, GMSK, LoRa™and OOK modulation
  • Preamble detection
  • Baud rate configurable
  • Built-in temperature sensor and low battery indicator
  • Excellent blocking immunity
  • Automatic RF Sense and CAD with ultra-fast AFC
  • Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
  • GPS automatic switching between internal patch antenna and external active antenna
  • PPS VS. NMEA can be used in time service
  • Support SDK command
  • Built-in LNA for better sensitivity
  • EASY™, advanced AGPS technology without external memory
  • AlwaysLocate™, an intelligent controller of periodic mode
  • GPS FLP mode, about 50% power consumption of normal mode
  • GPS support short circuit protection and antenna detection

SPECIFICATIONS

Lora Spec:

  • 168 dB maximum link budget.
  • +20 dBm – 100 mW constant RF output vs. +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
  • Built-in temperature sensor and low battery indicator.

GPS Spec:

  • Power Acquisition: 25mA,Power Tracking:20mA.
  • Compliant with GPS, SBAS.
  • Programmable bit rate up to 300 kbps.
  • Serial Interfaces UART: Adjustable 4800~115200 bps,Default: 9600bps.
  • Update rate:1Hz (Default), up to10Hz.
  • Protocols:NMEA 0183,PMTK.
  • Horizontal Position Accuracy:Autonomous<2.5 m CEP.
  • TTFF@-130dBm with EASY™:Cold Start<15s,Warm Start <5s,Hot start <1s;TTFF@-130dBm.
  • without EASY™:Cold Start<35s,Warm Start <30s,Hot Start <1s.
  • Timing Accuracy:1PPS out 10ns,Reacquisition Time<1s.
  • Velocity Accuracy Without aid<0.1m/s,Acceleration Accuracy Without aid 0.1m/s².
  • Sensitivity Acquisition -148dBm,Tracking -165dBm,Reacquisition -160dBm.
  • Dynamic Performance Altitude Max.18000m,Maximum Velocity Max.515m/s,Maximum Acceleration 4G.
  • L1 Band Receiver(1575.42MHz) Channel 22 (Tracking) /66 (Acquisition).

PART LIST

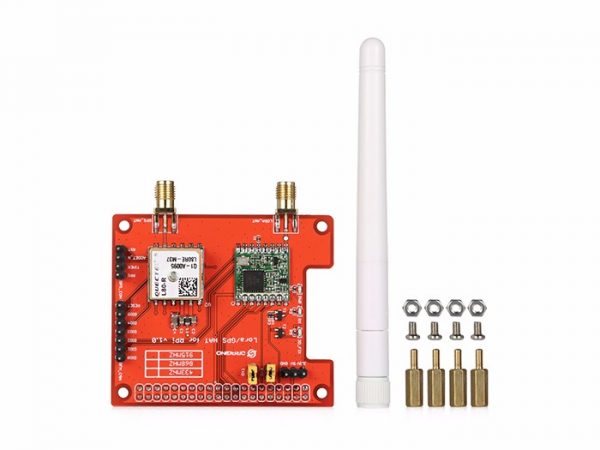

  • 1x Lora/GPS HAT
  • 4x Brass cylinders
  • 4x Screws
  • 4x Nuts
  • 1x Glue Stick Antenna(868 MHZ)
