SparkFun Qwiic pHAT for Raspberry Pi

用於Raspberry Pi的SparkFun Qwiic pHAT（基於最初的Qwiic Hat）為您提供了進入SparkFun Qwiic生態系統的最快捷，最簡單的方式，同時仍然使用您已經了解和喜愛的Raspberry Pi。Qwiic pHAT將Raspberry Pi上的I ² C總線（GND，3.3V，SDA和SCL）連接到HAT上的Qwiic連接器陣列。由於Qwiic系統允許菊花鍊板具有不同的地址，因此您可以堆疊盡可能多的傳感器，以創建感應功率塔！

Qwiic pHAT有四個Qwiic連接端口，全部在同一個I ² C總線上。此HAT與使用標準2×20 GPIO標頭的任何Raspberry Pi兼容。它還兼容NVIDIA Jetson Nano以及Google Coral。

Documents

• Schematic
• Eagle Files
• Hookup Guide
• Qwiic Info Page
• GitHub Hardware Repo

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

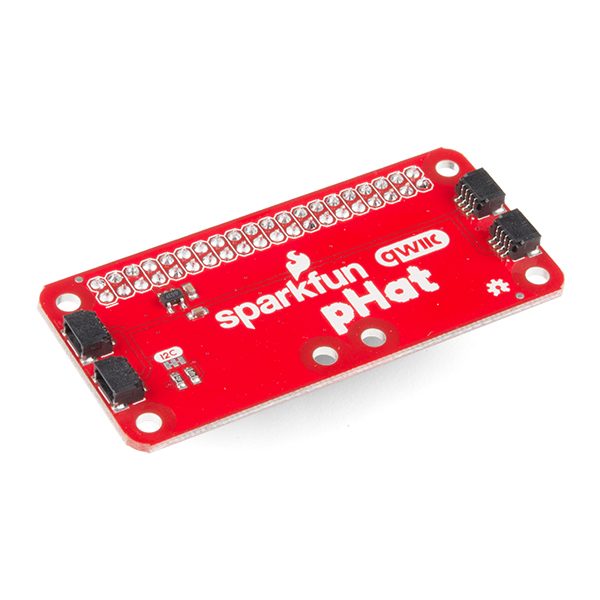

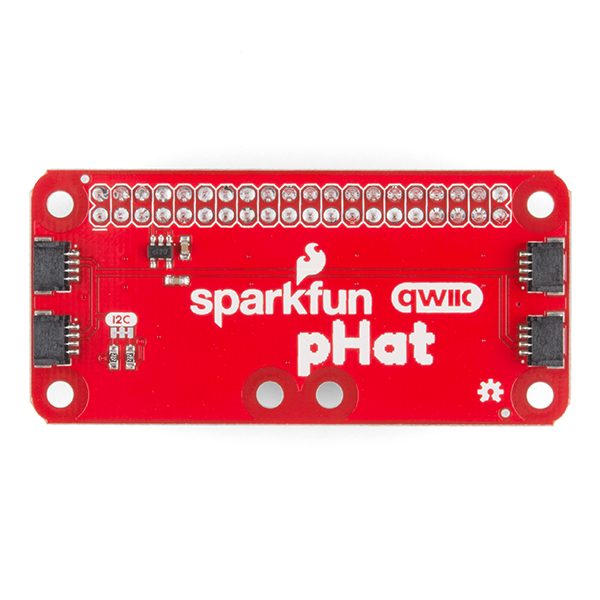

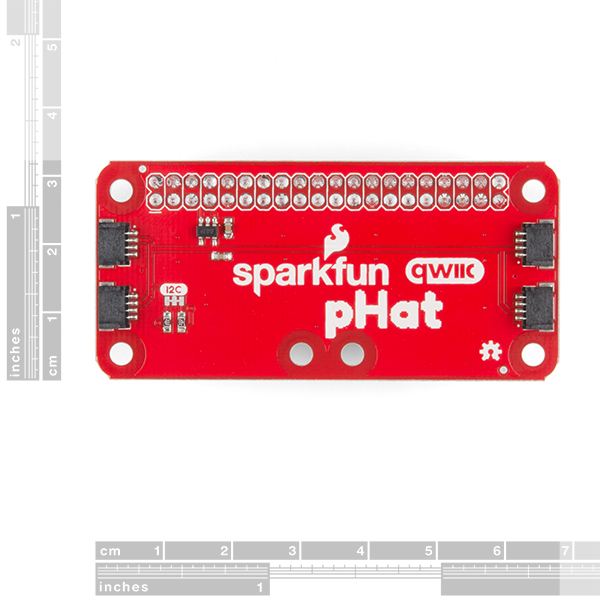

SparkFun Qwiic pHAT for Raspberry Pi

The SparkFun Qwiic pHAT for Raspberry Pi (based on the original Qwiic Hat) provides you with the quickest and easiest way to enter into SparkFun’s Qwiic ecosystem while still using that Raspberry Pi that you’ve come to know and love. The Qwiic pHAT connects the I²C bus (GND, 3.3V, SDA and SCL) on your Raspberry Pi to an array of Qwiic connectors on the HAT. Since the Qwiic system allows for daisy chaining boards with different addresses, you can stack as many sensors as you’d like to create a tower of sensing power!

The Qwiic pHAT has four Qwiic connect ports, all on the same I²C bus. This HAT is compatible with any Raspberry Pi that utilizes the standard 2×20 GPIO header. It is also compatible with the NVIDIA Jetson Nano as well as the Google Coral.

Features

• 4x Qwiic Connection Ports
