PyCom Pytrack 高精度 GPS 傳感器擴展板 內建3軸12位元加速度計

商品說明

PyCom Pytrack 高精度GPS傳感器擴展板 產品介紹

PyCom Pytrack 是一個PyCom 附加的功能擴展子板，將使 GPS地理跟踪開發項目變得輕而易舉。您不僅可以獲得高精度的GPS衛星定位模組，還可以使用加速度計和微型SD卡插槽。這個擴展板牌與所有PyCom開發板相容可使用（LoPy，WiPy 2等）

PyCom Pytrack 特徵：

• 超精準 GNSS + Glonass GPS 衛星定位
• 3軸12位加速度計
• USB端口具​​有串行訪問
• LiPo電池充電器
• 用於存儲數據記錄的MicroSD卡連接器
• 超低功耗操作（深度睡眠約1uA）
• 5個附加GPIO的外部頭

位置服務支持：

• 全球定位系統
• GLONASS
• 伽利略
• QZSS

與Pybytes一起使用

由Pycom的後端專家組成的Pybytes平台將是在雲端收集，組織和顯示數據的全部任務。無論您是公司，IoT系統架構師還是雄心勃勃的科技愛好者，您都可以隨時與您聯繫。

Imagine a sensor shield which you can use with any of your Pycom multi-network modules! This is what we give you with Pysense and Pytrack – a leg up to get you off to a great start really quickly.

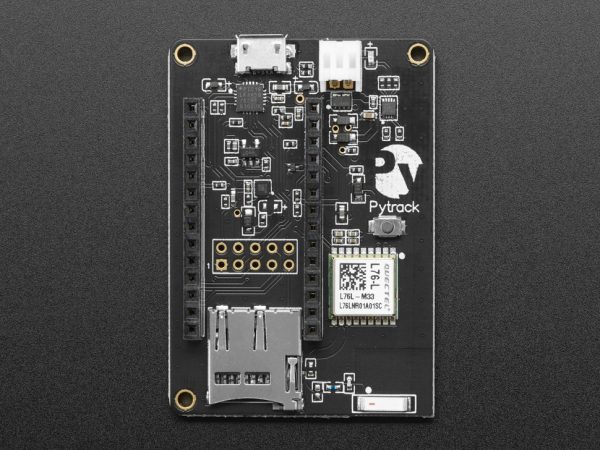

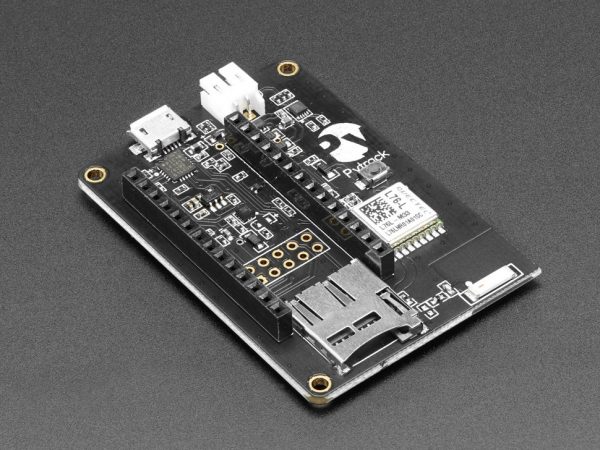

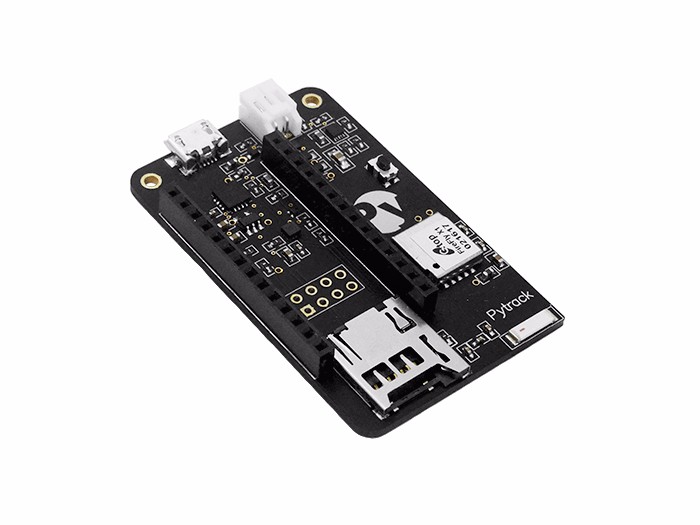

PyCom Pytrack

Pytrack Features

• Super accurate GNSS + Glonass GPS
• 3 axis 12-bit accelerometer
• USB port with serial access
• LiPo battery charger
• MicroSD ard compatibility
• Ultra low power operation (~1uA in deep sleep)

Location Services Supported

• GPS
• GLONASS
• Galileo
• QZSS

Features & Hardware

The Pytrack is has a number of features including GPS, 3-Axis Accelerometer and Battery Charger. See the list below for detailed specifics about each sensor, including datasheets.

• USB Serial Converter
• 3-Axis Accelerometer (LIS2HH12)
• Battery Charger (BQ24040 with JST connector)
• GPS and GLONASS (L76-L)
• MicroSD Card Reader

All of the included sensors are connected to the Pycom device via the I2C interface. These pins are located at P22 (SDA) and P21 (SCL).
