NUCLEO-L073RZ mbed 開發板 Arduino 相容腳座

-19%

NUCLEO-L073RZ mbed 開發板 Arduino 相容腳座

NT$762 NT$619 未稅

NUCLEO-L073RZ mbed 開發板 Arduino 相容腳座

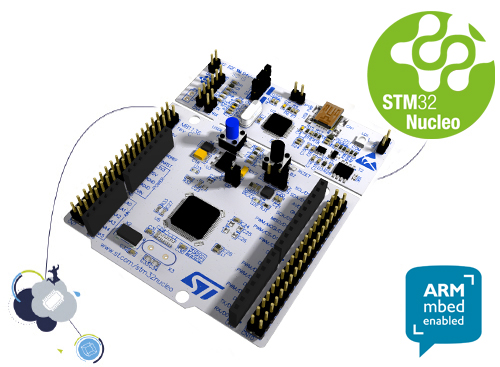

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

尚有庫存

貨號: NUCLEO-L073RZ(C2-5) 分類: , 標籤: , , , , , ,
  • 商品說明
  • 評論 (0)

商品說明

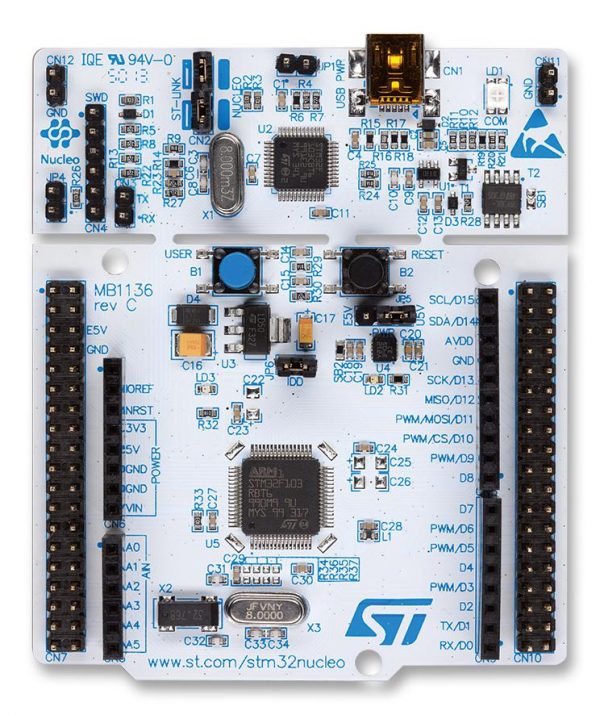

NUCLEO-L073RZ mbed 開發板 Arduino 相容腳座

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

NUCLEO-L073RZ

Microcontroller features

  • STM32L073RZT6 in LQFP64 package
  • ARM®32-bit Cortex®-M0+ CPU
  • 32 MHz max CPU frequency
  • VDD from 1.65 V to 3.6 V
  • 192 KB Flash
  • 20 KB SRAM
  • GPIO (51) with external interrupt capability
  • General purpose Timers (4)
  • Basic Timers (2)
  • Low-power Timer
  • SPI (2)
  • I2S
  • I2C (3)
  • USART (4)
  • Low-power UART
  • USB 2.0 full-speed
  • 12-bit ADC with 16 channels
  • 12-bit DAC (2) with 1 channel each
  • LCD
  • Comparators (2)
  • RTC
  • Capacitive sensing channels (24)
  • Random Generator (TRNG for HW entropy)

Nucleo features

  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source (3.3 V, 5 V, 7 – 12 V)
    • Power management access point
  • User LED (LD2)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage (USB Disk drive) for drag’n’drop programming
    • Debug port

Nucleo pinout

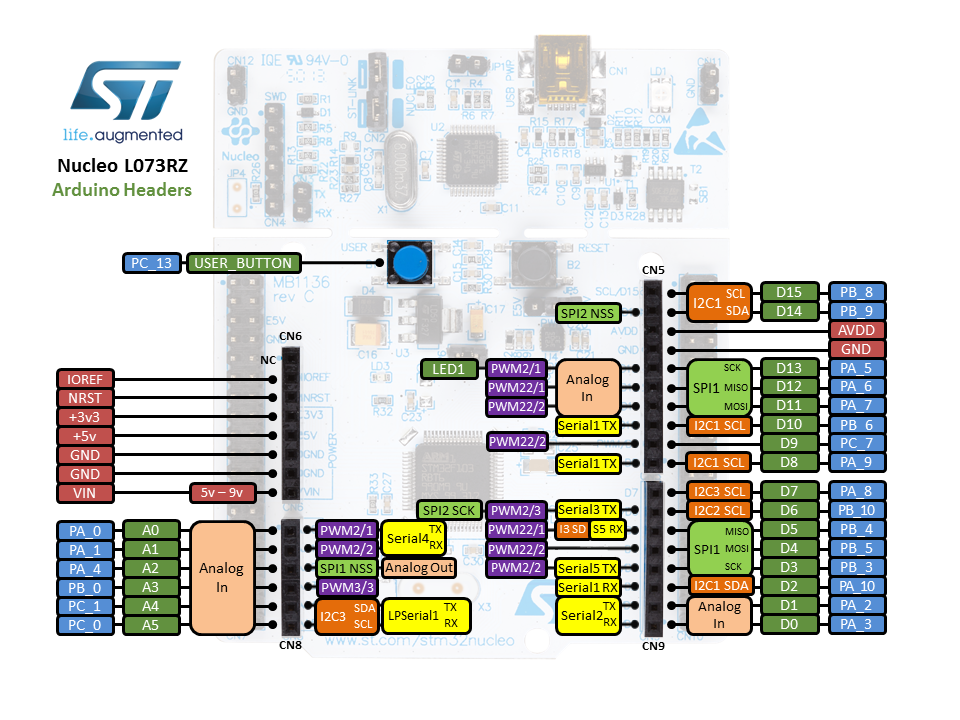

Arduino-compatible headers

/media/uploads/bcostm/nucleo64_revc_l073rz_mbed_pinout_v3_arduino.png

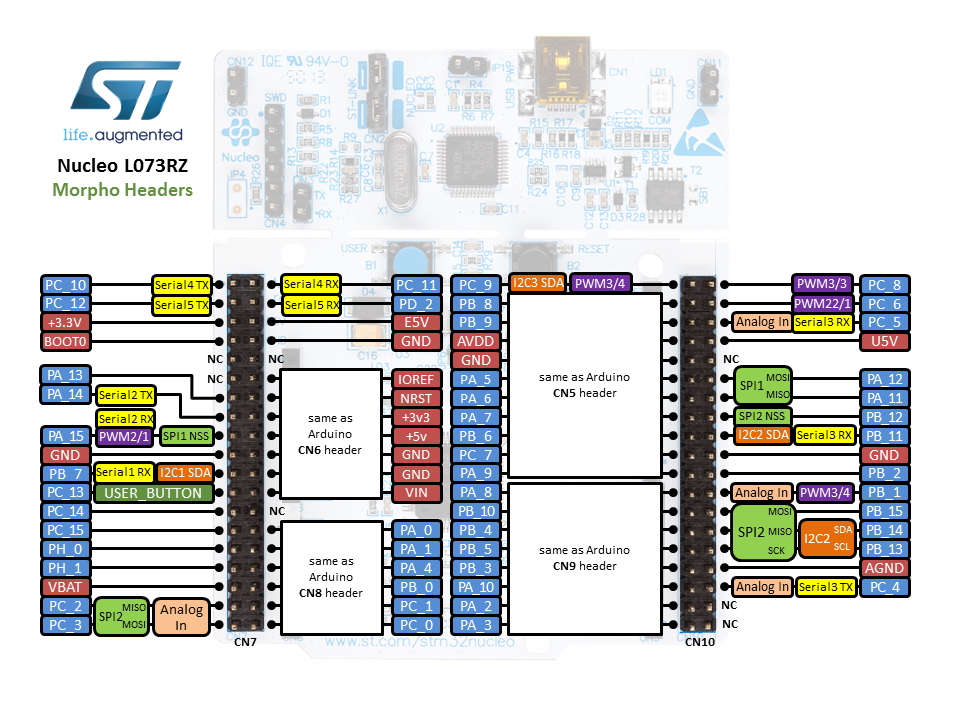

Morpho headers

These headers give access to all STM32 pins./media/uploads/bcostm/nucleo64_revc_l073rz_mbed_pinout_v3_morpho.png
