MyoWare Muscle Sensor Development Kit 肌電感測器,肌肉信號傳感器 SparkFun原廠

商品說明

MyoWare Muscle Sensor Development Kit 肌電感測器,肌肉信號傳感器 SparkFun 原裝進口

使用我們的肌肉來控制事物是我們大多數人習慣做的方式。我們按下按鈕，拉桿，移動操縱桿…但是如果我們可以把按鈕，槓桿和操縱桿從方程式中取出來呢？這是MyoWare 肌肉信號傳感器開發套件，一個Arduino供電的肌電圖（EMG）傳感器套件，它為您提供了一個MyoWare肌電感測器，每個在 SparkFun 開發的擴展板以及將所有這些連接在一起的所有功能。

MyoWare Muscle Sensor Development Kit 包含盒中的MyoWare 擴展板通過測量肌肉的過濾和矯正的電活動來起作用; 根據所選肌肉的活動量輸出0-Vs伏，其中Vs表示電源的電壓。連接該套件非常簡單，將屏蔽物附加到肌肉傳感器上，粘貼在幾個電極上，讀出電壓並彎曲一些肌肉！此套件中還包括設置MyoWare肌肉傳感器所需的一切：所有相關屏蔽（電源，電纜，LED和Proto），生物醫學傳感器墊和電纜，以及可焊接到每個屏蔽上的接頭，以便它們可以連在一起 確保看看我們的MyoWare肌肉傳感器套件指南，了解組裝您的MyoWare 開發套件的技巧和最佳開發環境。

為了使堆疊更容易，MyoWare 肌肉傳感器開發套件包括3針可堆疊接頭。在所有屏蔽上使用這些屏蔽允許在更多配置中輕鬆堆疊。



出貨清單

• MyoWare 肌肉感測器 x1

• MyoWare 電源擴充板 x1

• MyoWare 感測線擴充板 x1

• MyoWare LED 擴展板 x1

• MyoWare 原型擴充板 x1

• 三頭肌肉感測器連接線 x1

• 感測器貼片 x10

• 3 Pin 排針（母）x11
• 3 Pin 長排針 Male（公）x3

Documents

• MyoWare用戶手冊
• MyoWare肌肉傳感器套件指南
• 導電織物電極
• 數據表（傳感器墊）
• Arduino示例代碼
• GitHub（示例代碼和設計文件）



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



MyoWare Muscle Sensor Development Kit

Using our muscles to control things is the way that most of us are accustomed to doing it. We push buttons, pull levers, move joysticks … but what if we could take the buttons, levers and joysticks out of the equation? This is the MyoWare Muscle Sensor Development Kit, an Arduino-powered, electromyography (EMG) sensor kit that provides you with a MyoWare Muscle Sensor, each shield developed here at SparkFun, and everything you need to connect them all together.

The MyoWare board, included in this kit, acts by measuring the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending on the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. It’s very simple to hook up this kit, attach shields to the muscle sensor, stick on a few included electrodes, read the voltage out and flex some muscles!

Also included in this kit is everything you need to set up the MyoWare Muscle Sensor: all associated shields (Power, Cable, LED, and Proto), biomedical sensor pads and cable, as well as headers that can be soldered onto each shield so they can be attached together. Make sure to take a look at our MyoWare Muscle Sensor Kit Guide below for tips, tricks and best practices for assembling your MyoWare boards.

To make stacking easier, the MyoWare Muscle Sensor Development Kit includes 3-pin stackable headers. Using these on all of the shields allows for easy stacking in more configurations.

Note: The Power Shield and the LED Shield both provide power, but at slightly different voltages. Don’t use both of these shields at the same time.

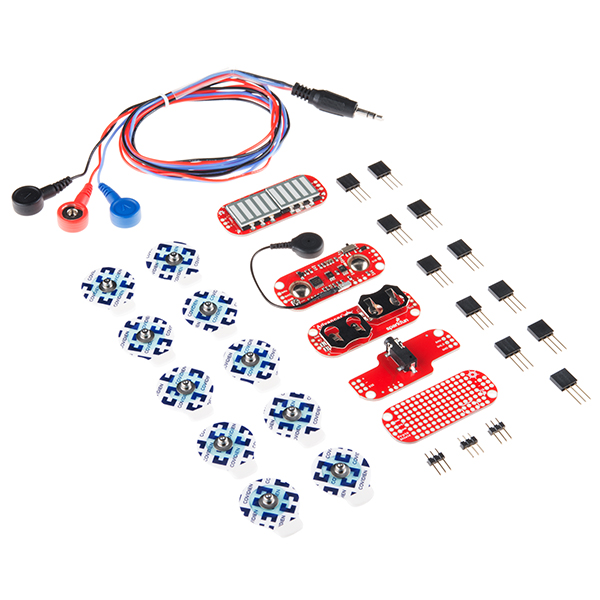

Includes

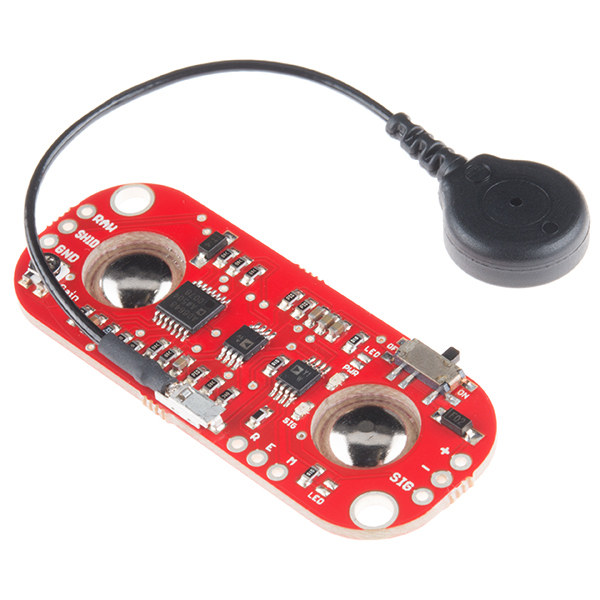

• 1x MyoWare Muscle Sensor

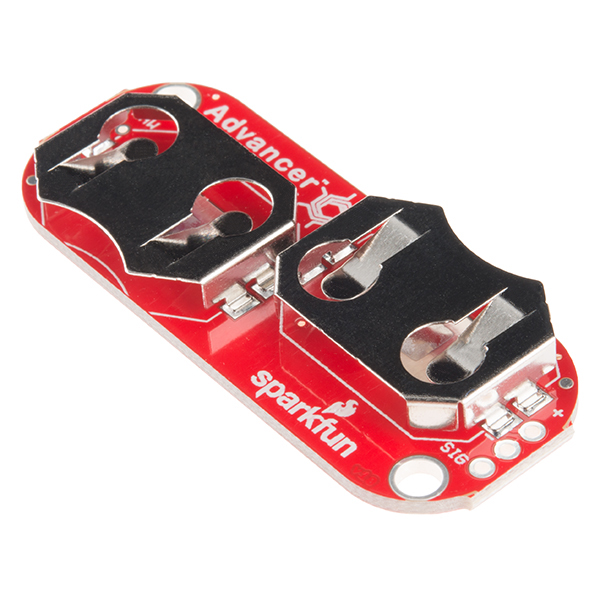

• 1x MyoWare Power Shield
• 1x MyoWare Cable Shield
• 1x MyoWare LED Shield
• 1x MyoWare Proto Shield
• 1x Sensor Cable – 3 Connector
• 10x Biomedical Sensor Pad
• 11x Stackable Header – 3 Pin, Female
• 3x Header – 3 Pin, Male

Documents

• MyoWare User Manual
• MyoWare Muscle Sensor Kit Guide
• Conductive Fabric Electrodes
• Datasheet (Sensor Pads)
• Eagle Files (MyoWare Shields)
• Arduino Example Code
• GitHub (Example Code & Design Files)
