MPL3115A2 高度壓力感測器模組 Altitude/Pressure Sensor Breakout 美國製

商品說明

MPL3115A2 高度壓力感測器模組 Altitude/Pressure Sensor Breakout

MPL3115A2 是一個MEMS壓力傳感器，可將海拔數據提供到30厘米以內（採用過採樣）。傳感器輸出由高分辨率24位ADC數字化，並通過I2C傳輸，這意味著與大多數控制器的接口很容易。壓力輸出可以通過Pascal分數的輸出來解決，海拔高度可以以分米計算。該器件還以攝氏度提供12位溫度測量。

特徵

• 1.95V至3.6V電源電壓，由LDO內部調節
• 1.6V至3.6V數字接口電源電壓
• 內部全面補償
• 直接閱讀，補償
  • 壓力：20位測量（帕斯卡）
  • 海拔高度：20位測量（米）
  • 溫度：12位測量（攝氏度）
• 可編程事件
• 自主數據採集
• 分辨率低至1英尺/ 30厘米
• 32採樣FIFO
• 使用FIFO記錄數據最多12天的能力
• 1秒至9小時數據採集率
• I2C數字輸出接口（工作頻率高達400 kHz）



Documents

• 概要
• 鷹檔案
• Hookup指南
• 數據表（MPL3115A2）
• GitHub（設計文件和示例代碼）
• GitHub（圖書館）
• 產品視頻



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

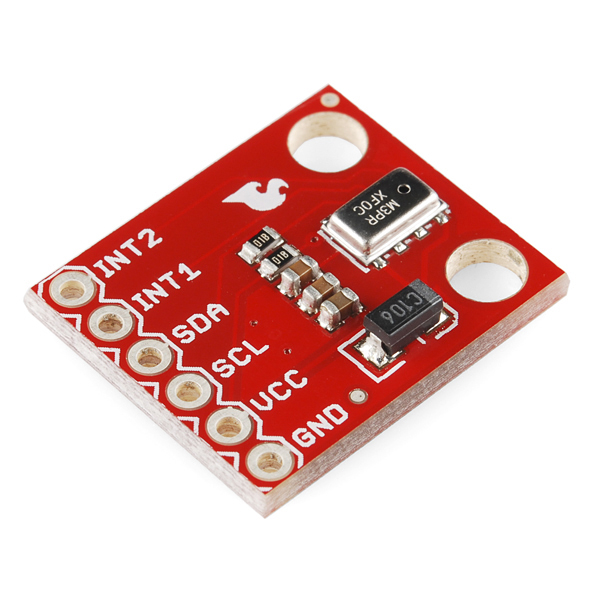

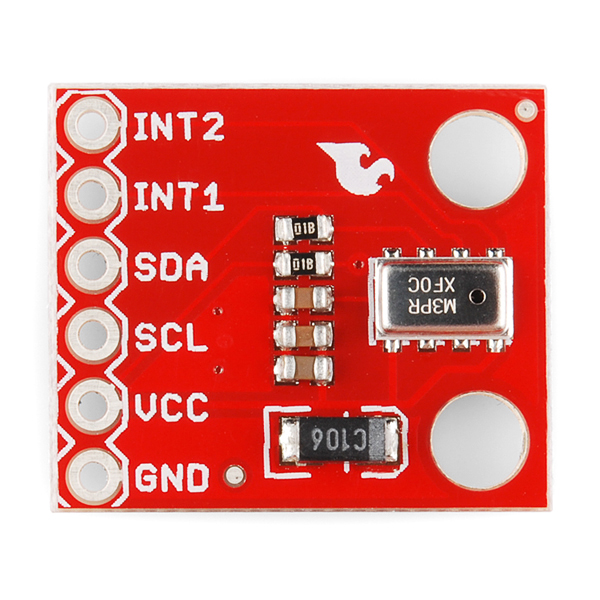

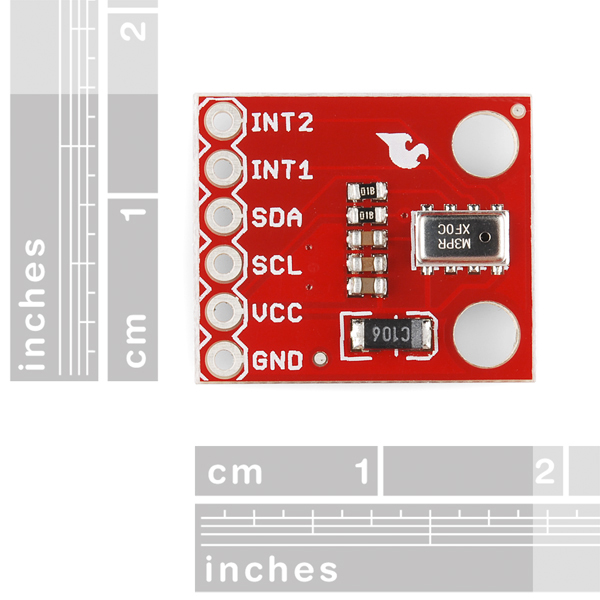

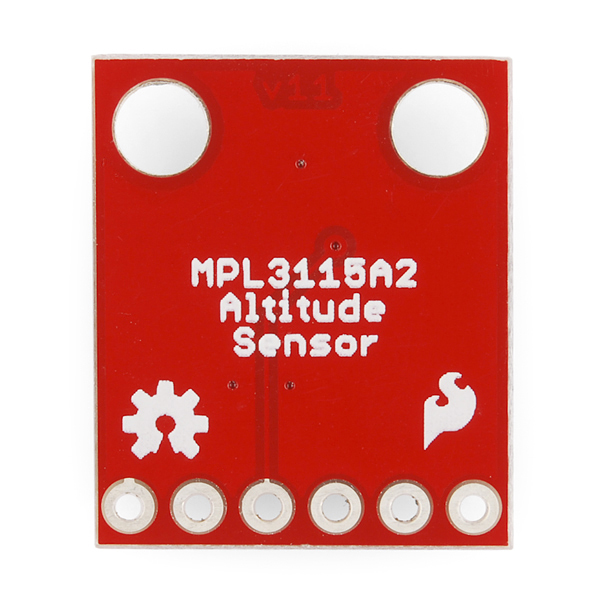

SparkFun Altitude/Pressure Sensor Breakout – MPL3115A2

Life has its ups and downs, so why not measure them? The MPL3115A2 is a MEMS pressure sensor that provides Altitude data to within 30cm (with oversampling enabled). The sensor outputs are digitized by a high resolution 24-bit ADC and transmitted over I2C, meaning it’s easy to interface with most controllers. Pressure output can be resolved with output in fractions of a Pascal, and Altitude can be resolved in fractions of a meter. The device also provides 12-bit temperature measurements in degrees Celsius.

This breakout board makes it easy to prototype using this tiny device by breaking out the necessary pins to a standard 0.1″ spaced header. The board also has all of the passive components needed to get the device functioning, so you can simply connect it to something that talks I2C and get to work!

Features:

• 1.95V to 3.6V Supply Voltage, internally regulated by LDO
• 1.6V to 3.6V Digital Interface Supply Voltage
• Fully Compensated internally
• Direct Reading, Compensated
  • Pressure: 20-bit measurement (Pascals)
  • Altitude: 20-bit measurement (meters)
  • Temperature: 12-bit measurement (degrees Celsius)
• Programmable Events
• Autonomous Data Acquisition
• Resolution down to 1 ft. / 30 cm
• 32 Sample FIFO
• Ability to log data up to 12 days using the FIFO
• 1 second to 9 hour data acquisition rate
• I2C digital output interface (operates up to 400 kHz)

Documents:

• Schematic
• Eagle Files
• Hookup Guide
• Datasheet (MPL3115A2)
• GitHub (Design Files & Example Code)
• GitHub (Library)
• Product Video
