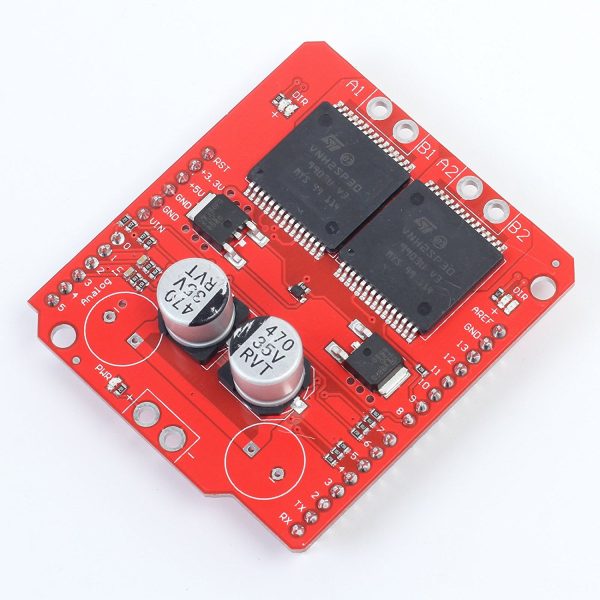

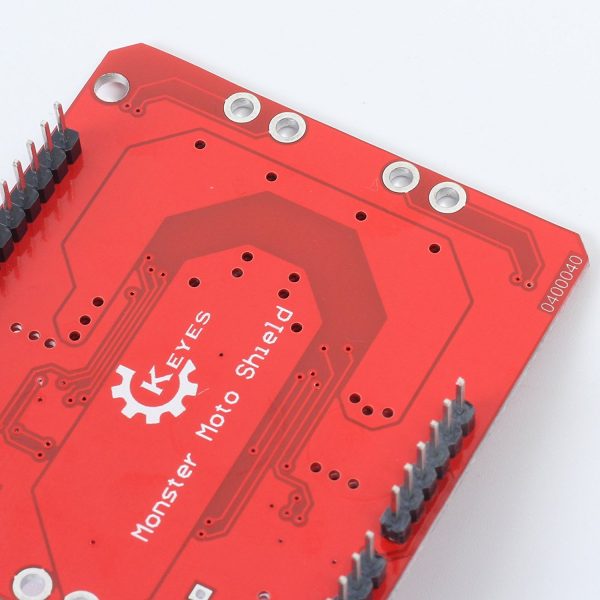

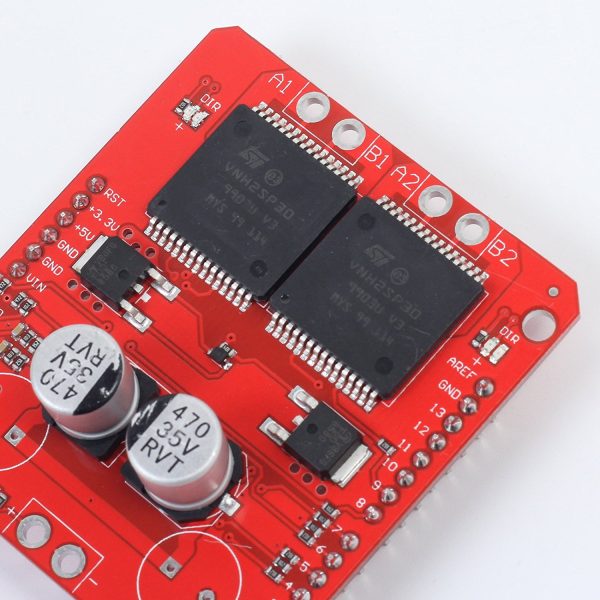

Monster Moto Shield VNH2SP30 雙路步進電機驅動模組 30A 大電流

商品說明

Monster Moto Shield VNH2SP30 雙路步進電機驅動模組 30A 大電流
30A 全橋式大功率設計，可控制2組馬達，可堆疊於 Arduino 板上。附 Arduino 範例程式。

此款可堆疊式大功率馬達驅動板, 專為Arduino玩家控制大功率馬達而設計的. 可用於機器人及悍馬級電動車等各種應用！全橋驅動，超大電流，強勁驅動，剎車！ 採用高性能MOSFET 專用晶片, 在額定電流輸出情況下, 只輕微發熱，無需額外添加散熱器。推薦直接用烙鐵焊接馬達輸出引線，可增大馬達的性能發揮！
產品規格：

• 額定電壓: 5V-16V
• 最大電流: 30 A
• 實際連續電流: 14 A
• Arduino模擬端口電流檢測
• MOSFET on-resistance: 19 mΩ (per leg)
• Maximum PWM frequency: 20 kHz
• 過熱關斷保護
• 欠壓和過壓保護

程式範例與資料說明

• Datasheet (VNH2SP30)
• Example Code
• GitHub (Design Files & Example Code)

Product Features
High current VNH2SP30 stepper motor driver with overvoltage and undervoltage protection
High current output up to 30A perfectly replace L298N
Maximum Input Voltage: DC 16V
Maximum PWM Frequency: 20KHz, Output Impedance: 19m¦¸
Module Size: 60X53X20mm/2.36X2.09X0.79inch(L*W*H)

Product Description
This VNH2SP30 steppter motor driver shield module strangthen the circuit load capacity ensure strong driving power with ultra high current output up to 30A perfect for replacing the L298N. On-board pinout design,easy to install on the development board.

Specifications:
-Maximum Input Voltage: DC 16v
-Maximum Driving Current: 30A
-Continuous Working Current: 14A
-Maximum PWM Frequency: 20KHz
-Output Impedance: 19m¦¸
-Module Size: 60X53X20mm/2.36X2.09X0.79inch(L*W*H)

Package Included:
1X Monster Moto Shield VNH2SP30 Stepper Motor Driver
