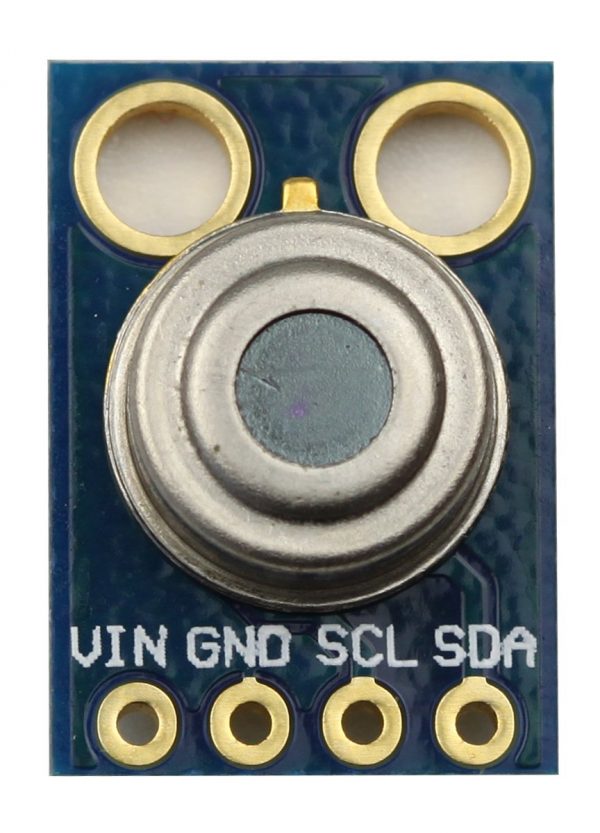

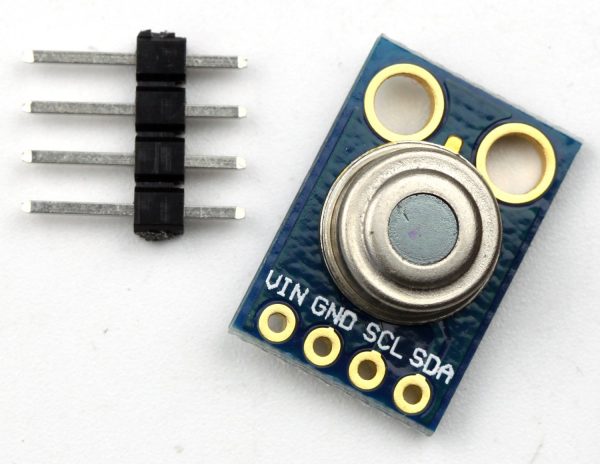

MLX90614 非接觸式紅外測溫感測器 I2C接口 GY-906

MLX90614 非接觸式紅外測溫感測器 I2C接口 GY-906

NT$457 未稅

MLX90614 非接觸式紅外測溫感測器 I2C接口  GY-906

  • 模組型號:GY-906
  • 使用芯片:MLX90614
  • 供電電源:3-5v(內部低壓差穩壓)
  • 通信方式:標準IIC通信協議
  • 高品質沉金pcb,
  • 尺寸:11.5*16.5mm

已售完

貨號: 1736435437(A6-6) 分類:
  • 商品說明
  • 評論 (0)

商品說明

MLX90614 非接觸式紅外測溫感測器 I2C接口  GY-906

模組型號:GY-906

使用芯片:MLX90614

供電電源:3-5v(內部低壓差穩壓)

通信方式:標準IIC通信協議

高品質沉金pcb,

尺寸:11.5*16.5mm



MLX90614 Non Contact Single and Dual Zone IR Infra Red Thermometer Sensor Module

Module Features:
Operating voltage: 3 ~ 5 V
Communication: IIC
Pitch: 2.54mm
Size: 11.5mm * 16.5mm

Chip Features:
High accuracy of 0.5 degree over wide temperature range (0 ~ +50 degree for both Ta and To)
High (medical) accuracy calibration
Measurement resolution of 0.02 degree
SMBus compatible digital interface
Simple adaptation for 8 ~ 16V applications
Sleep mode for reduced power consumption

Applications:
High precision non-contact temperature measurements
Thermal Comfort sensor for Mobile Air Conditioning control system
Temperature sensing element for residential, commercial and industrial building air conditioning
Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Thermal relay / alert
Body temperature measurement
