DFRobot micro:bit Boson 擴展板 Gravity即插即用，附贈六條連接線

商品說明

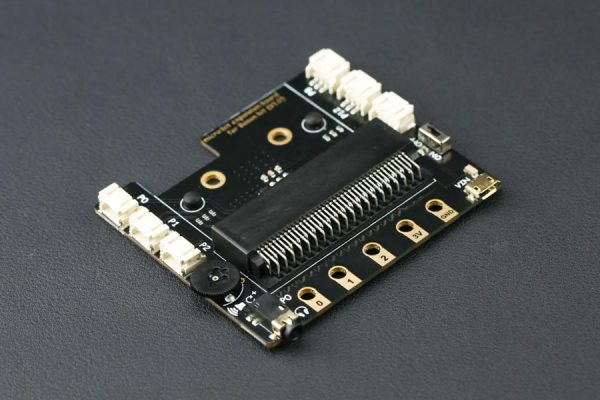

micro:bit Boson 擴展板 Gravity相容即插即用

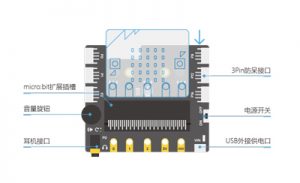

micro:bit Boson 擴展板能輕鬆將 micro:bit 額外的引腳引出，即插即用，簡單快捷。

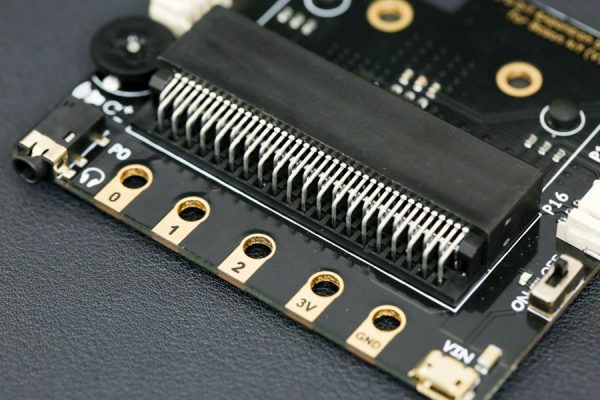

擴展板使用金手指插槽連接micro:bit。配合3Pin防呆介面以及附贈的連接線，最多能夠連接6個外擴元件。

此外，擴展板還附帶了3.5mm耳機介面和音量旋鈕，方便耳機直插。外接的USB供電口能為外部元件提供額外的供電，更好地支援燈帶，舵機等大電流設備。



規格

• 工作電壓：3.3V
• 工作電流：500mA
• 檢測範圍：0-3.3V
• 工作溫度：0-85 ℃

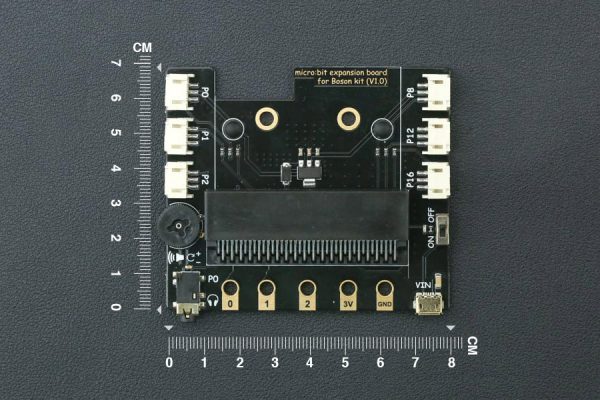

• 產品尺寸：80×70 mm
• 重量：48g
• 供電電壓：
  • MicroUSB供電口：5V
  • PH2.0電源接口：3-3.3V
  • 鱷魚夾接口：3-3.3V

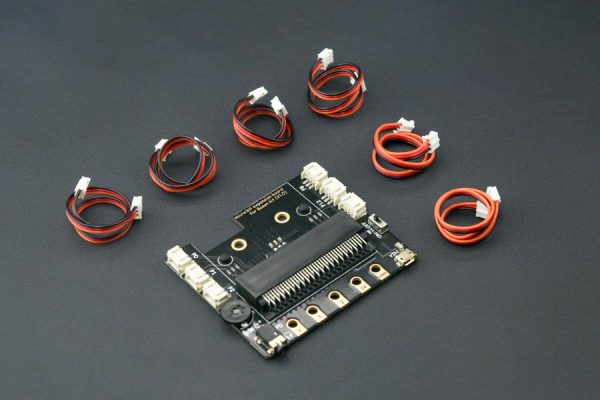

出貨清單

•  micro:bit Boson擴展板 x1
•  20CM防呆連接線 x6



Documents

• micro:bit Educational Foundation
• micro:bit online Block edicter



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



micro:bit Expansion Board for Boson (Gravity Compatible)

micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects and robotics.

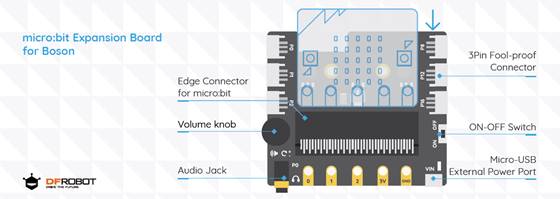

However, on-board I/O rings and crocodile clips sometimes are not handy and safe enough to connect peripherals. To explore more possibilities with micro:bit, we have designed the micro:bit Expansion Board for Boson, a carry-on board that connects to micro:bit via edge connector.

The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot’s Boson and Gravitymodularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light and motion interaction.

FEATURES

SPECIFICATION

DOCUMENTS

SHIPPING LIST
