Micro OLED 黑底藍 液晶模組 Sparkfun美國製

商品說明

Micro OLED 黑底藍 液晶模組

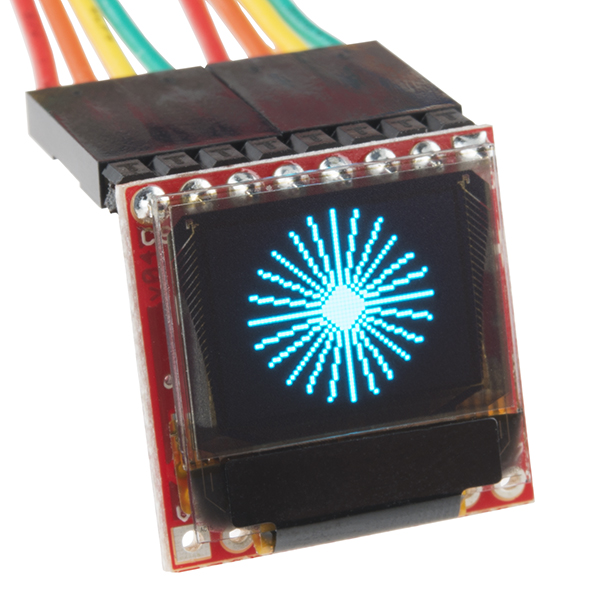

Micro OLED Breakout Board會分解出一個小的單色藍黑色OLED。它的寬度為64像素，高度為48像素，跨度為0.66英寸。

它雖然很微小，但仍然具有衝擊力-OLED顯示屏非常清晰，您可以在其中容納大量圖形。

儘管如此，最重要的是Micro OLED易於通過SPI或I ² C接口進行控制。

規格

• 工作電壓：3.3V
• 屏幕尺寸：64×48像素（0.66英寸寬）
• 單色黑底藍
• SPI或I ² C接口



出貨清單

• Micro OLED Breakout x1



Documents

• Schematic
• Eagle Files
• Hookup Guide
• Datasheet (SSD1306)
• GitHub (Design Files & Example Code)
• GitHub (Library)
• Product Video



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



SparkFun Micro OLED Breakout

The SparkFun Micro OLED Breakout Board breaks out a small monochrome, blue-on-black OLED. It’s “micro”, but it still packs a punch – the OLED display is crisp, and you can fit a deceivingly large amount of graphics on there. This breakout is perfect for adding graphics to your next Arduino project, displaying diagnostic information without resorting to serial output, and teaching a little game theory while creating a fun, Arduino-based video game. Most important of all, though, is the Micro OLED is easy to control over either an SPI or I²C interface.

You may be asking yourself, “Why does this board look so familiar?” Yes, this is essentially a MicroView without the Arduino portion. We understand that sometimes you just need a breakout, an open door for you to explore the possibilities of a super small OLED screen. Speaking of, the screen on this breakout is only 64 pixels wide and 48 pixels tall, measuring 0.66″ across.

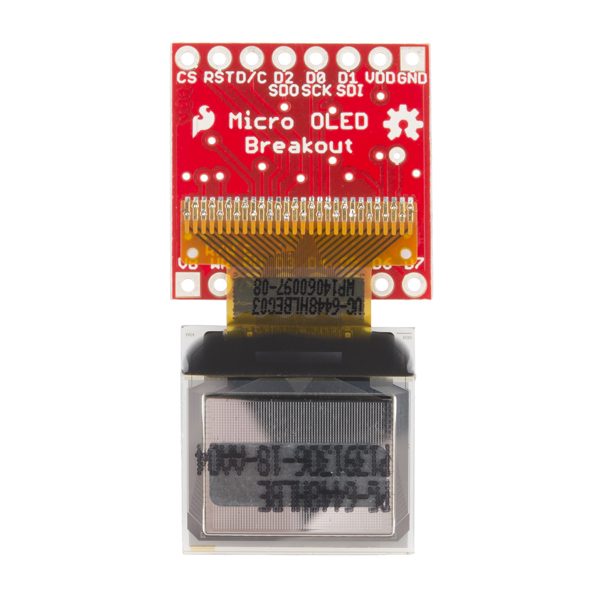

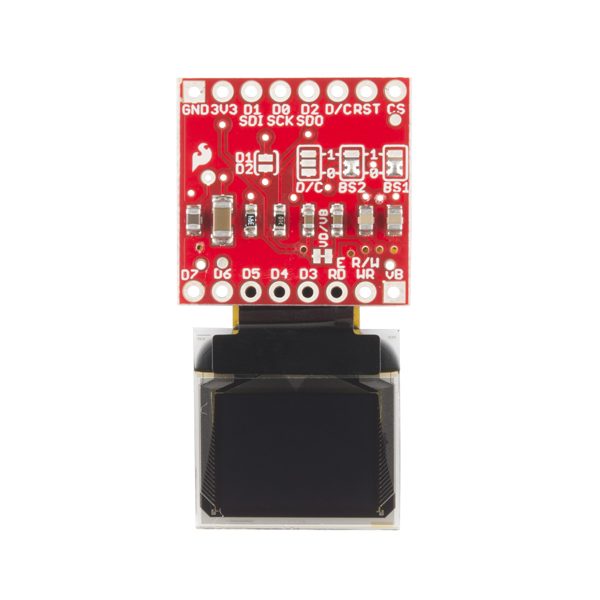

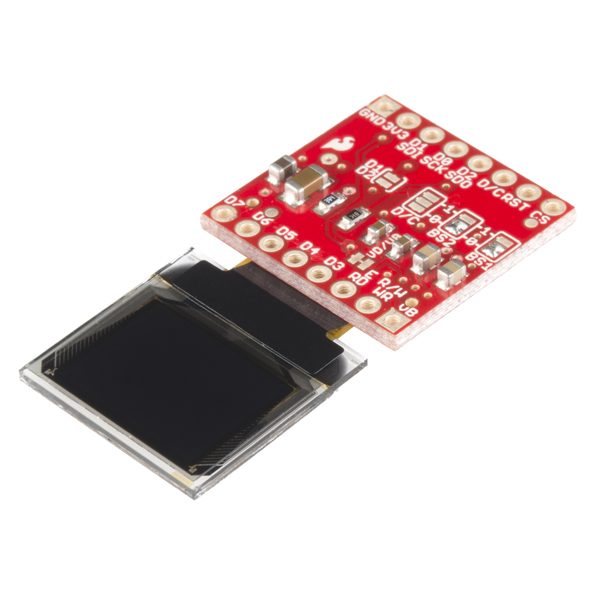

In total, the Micro OLED Breakout provides access to 16 of the OLED’s pins. Fortunately, though, you’ll only need about half of them to make the display work. The top row of pins (GND-CS) breaks out everything you’d need to interface with the OLED over an SPI or I²C interface. The pins on the bottom (D7-vB) are mostly only used if you need to control the display over a parallel interface. This board operates at 3.3V with a current of 10mA (20mA max).

Features

• Operating Voltage: 3.3V
• Screen Size: 64×48 pixels (0.66″ Across)
• Monochrome Blue-on-Black
• SPI or I²C Interface
