Gravity: IO Sensor Shield For Arduino Mega Due

感測器擴展板 V2.4 Arduino通用 Xbee 藍芽串口 SD卡座 DFRobot

Arduino MEGA的埠資源非常豐富，擁有54個數位IO口和16個類比埠、4個串口。

但是它的GND卻只有3個，如果用普通的麵包板接線的話，你會看到密密麻麻的佈線。

而且如果有一個埠接觸不良或者短路，你得花大力氣找出到底是哪個介面出了問題。

Gravity: IO Sensor Shield For Arduino Mega Due

這款擴展板集成了5大擴展功能：

  • XBEE介面（com0/1/2) x3
  • SD插口 x1
  • 3P數字口 x40
  • 3P類比介面 x16
  • PWM介面 x8
  • 原型洞洞板 x1
  • Arduino通用擴展板插口x1
  • 外接電源接線柱和開關 x1

以上介面可以讓你使用幾乎所有Arduino周邊設備。這樣的擴展板有一塊就足夠了。

規格參數

  • 相容Arduino MEGA1280、Arduino MEGA2560、Arduino MEGA ADK、Google ADK
  • 前半部分相容Power shield、wifi shield、USB host shield、Motor shield等等
  • 擴展40個數位 IO口（34個舵機介面）及電源
  • 16個模擬IO口及電源
  • 1個數字埠外接電源接線柱
  • 1個數位埠外部供電和板載電源切換開關
  • 1個ISP下載介面
  • 3個串口外接介面
  • 1個重定按鈕
  • 3個Xbee/Bluetooh Bee藍牙無線數傳介面
  • 1個IIC/I2C/TWI介面
  • 1個Micro SD卡插座
  • 擴展麵包孔若干
  • 指示燈（PIN13）
  • 平面尺寸：130x58mm

Documents



 MEGA感測器擴展板 商品資料說明

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Gravity: IO Sensor Shield For Arduino Mega Due

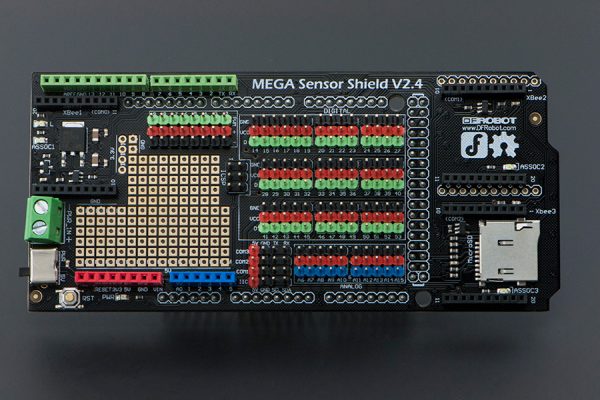

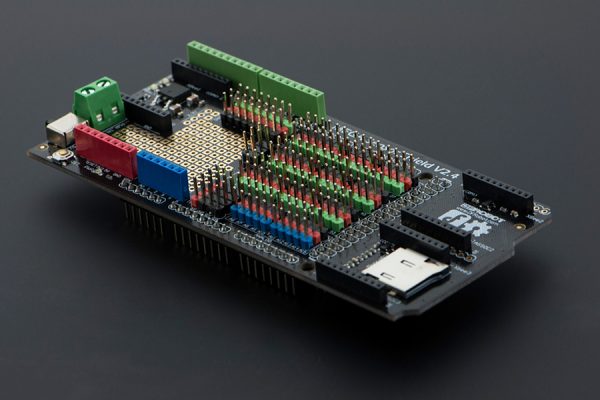

Say goodbye to messy cables and clueless pluging/unpluging! This  Sensor Shield  is a powerful expansion shield  for Arduino Mega Due. It is large enough to carry up to 3 Xbee slots, 1 microSD slot and shield headers for most Arduino shields on the market. Besides, we also added a prototyping area for convenience and adaptability for customized projects.
The breakouts for Digital pins are 14 to 53, Analog pins 6 to 15 and PWM pins 2 to 9. All pinout is a Gravity interface which allows plug-play of Gravity series sensors.  And standard Arduino UNO pinout is reserved to stack more Arduino Shield. This shield can really be a major communications hub or “Mothership” for your Arduino, robot or IOT projects.
Each Xbee socket is connected to a different pin. Xbee socket 1 is connected to the main Serial port. While Xbee socket 2 to Serial1() and Xbee socket 3 to Serial2() on Arduino IDE.
The board has an integrated voltage regulator for 3.3v, a convenient reset push button topside and the standard on board LED that you can use for testing or debugging.

A external power connector for servos, as in other products of this family. If you need to power a large array of servos, use the screw terminals to connect your power supply and just drive it directly from your Mega.

The microSD will be great if you are planning on doing sensor monitoring for research and data gathering for your algorithms, increase your automatic systems performance with accumulated data.

SPECIFICATION

  • Compatible with most Arduino shields
  • Compatible with Arduino Mega boards / DFRobot megaADK / Arduino megaADK
  • Extended TTL connection pins for four Serial ports
  • DIP prototyping area makes it easy to add more modules or electronic components
  • 3 Xbee slots
  • 1 microSD slot
  • Power switch between Arduino Mega or external
  • Size: 125 x 57 mm(4.92×2.24″)

DOCUMENTS

SHIPPING LIST

  • Arduino Mega Sensor Shield x1
