MediaTek X20 開發板 聯發科 2017年最新安卓開發板 支援 Android 6.0

-14%

MediaTek X20 開發板 聯發科 2017年最新安卓開發板 支援 Android 6.0

NT$8,762 NT$7,552 未稅

MediaTek X20 開發板 聯發科 2017年最新開發板

聯發科技曦力 X20 開發板基於 Linaro 96Boards 開放開發板規格,以及聯發科技 MT6797 SoC 而設計,是目前市場上唯一採用三叢十核架構和 ARM Cortex-A72 核心的硬體開發平臺。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

MediaTek X20 安卓開發板 聯發科  全台獨家  2017年最新開發板 支援 Android 6.0

聯發科技曦力 X20 開發板基於 Linaro 96Boards 開放開發板規格,以及聯發科技 MT6797 SoC 而設計,是目前市場上唯一採用三叢十核架構和 ARM Cortex-A72 核心的硬體開發平臺。此架構功能包含:

功能特色

  • 雙核 ARM Cortex-A72 MPCore™,操作頻率高達 2.1GHz ~ 2.3GHz
  • 四核 ARM Cortex-A53 MPCore™,操作頻率高達 1.85GHz
  • 四核 ARM Cortex-A53 MPCore™,操作頻率高達 1.4GHz
  • ARM Mali-T880 GPU,操作頻率高達 800MHz

支持最新Android 6.0 系統

MediaTek X20 Development Board所支持的Android 6.0,讓你輕鬆學習Android最新技術。MediaTek全套Android源碼支持你的學習、新功能開發、創客設計。

MediaTek X20  Development Board高性能開源平台

MediaTek X20 Development Board是一款誠邁科技和聯發科技聯合發布的符合96board規範的開源平台,具有非常強大的運算能力

和多媒體處理能力最新的曦力X20處理器,支持最新的Android系統,它就是一台mini pc,它也是您創意的引擎,

曦力X20處理器——因您的創意和靈感而變得不平凡。

聯發科技最新的曦力X20十核處理器

原廠網站 https://en.alpha-star.org/mediatek-x20-development-board

首款採用三叢集十核架構的智能手機處理器,最高頻率可達2.3GHz, 比傳統的雙叢集架構處理器在功耗方面降低35%,而運算能力可提升15%。

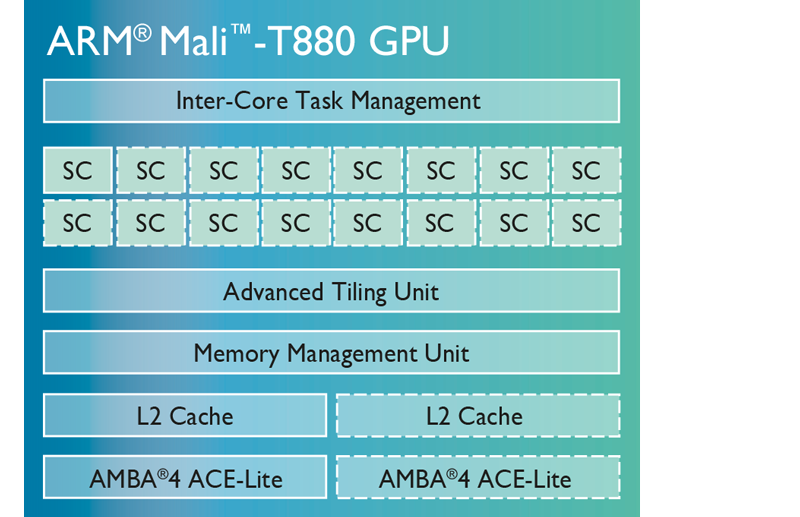

ARM Mali-T880 圖形處理器

具有最高性能的Mali系列圖形引擎-T880系列, 它支持高達WQXGA 2560X1600 60FPS顯示,最新的圖形APIs如OpenGL ES 3.1和OpenCL 1.2。支持4K UltraHD視頻錄製和H.265,VP9和H.264硬件視頻編碼/解碼。支持雙ISP,它支持高達32M像素的相機模塊。

Media Tek X20 Development Board最大支持1080P的屏幕分辨率

讓你的屏幕可以更大、更清晰

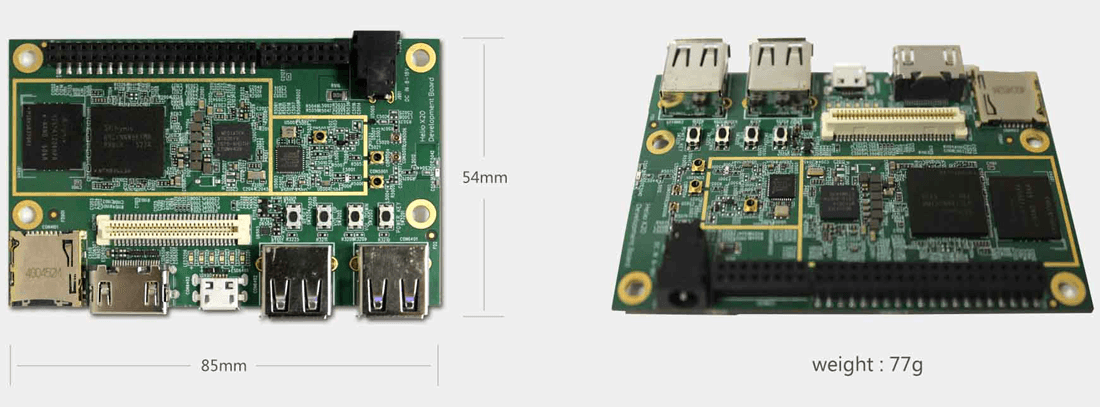

開發板規格

功能 規格
Application processor
MediaTek MT6797 SoC with:
• Dual-core ARM Cortex-A72 MPCore™ operating at 2.1GHz to 2.3GHz
• Quad-core ARM Cortex-A53 MPCore™ operating at up to 1.85GHz
• Quad-core ARM Cortex-A53 MPCore™ operating at up to 1.4GHz
• ARM Mail-T880 GPU operating at up to 800MHz
Operating system Android 6.0
Wi-Fi 802.11 a/b/g/n
Bluetooth 4.1
Location(GNSS) GPS
USB
2 x USB 2.0 (host mode only)
USB 2.0 micro B (device mode only)
Low Speed expansion connector
40-pin
UART, I2C x2, SPI, GPIO x12
DC power
High Speed expansion connector
60-pin
4L-MIPI DSI, I2C x2 USB
2L+4LMIPI CSI
Analog expansion connector One 16-pin supporting headset, speaker, FM antenna and more
DDR 2GB LPDDR3
eMMC 8GB EMMC5.1
Memory card slot Micro SD card slot (SD3.0)
Display HDMI Type A Port (1080p HD @ 30fps)

MediaTek X20 開發板

Description

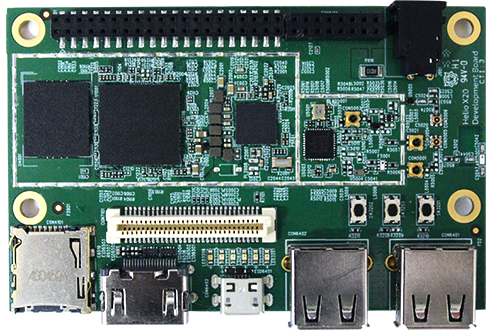

The new MediaTek X20 development board is based on the Linaro 96Boards standard. At the board’s heart is the MediaTek MT6797 SOC. This SOC features the industry’s first tri-cluster, deca-core processing architecture.

To enable the widest range of smart gadgets and IoT devices to be prototyped, the board offers an extensive set of interfaces and connectivity peripherals. This includes interface for cameras, touch-screen displays and MMC/SD cards.

Wireless communication is supported with Wi-Fi and Bluetooth. GPS location acquisition is also included.

This state-of-the-art platform provides industry-leading computing performance coupled with unmatched power efficiency. With this board you can prototype solutions for existing and emerging markets including POS, VR, advanced driver assisted systems (ADAS), digital signage, vending machines and much more.

Features

  • MediaTek X20 deca-core processor
  • ARM Mali-T880 Graphics Processing Units
  • Maximally support 1080P resolution of the screen
  • Support the latest Android 6.0 system
  • Dual-band AC Wi-Fi, Bluetooth 4.1 and GPS
  • A wide variety of expansion ports are included, such as a 60-pin high-speed, 40-pin low-speed, analogue and USB and USB 2.0 micro B to support highly diverse project needs and debugging.
