Lilypad Arduino 開發板 Mega328A-PU 16M 穿戴裝置設計專用

商品說明

Lilypad Arduino  開發板 Mega328A-PU 16M 產品介紹

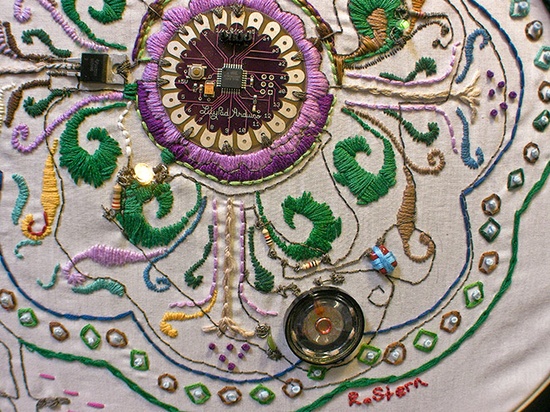

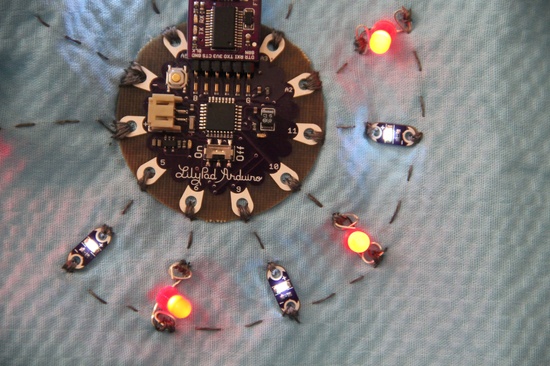

充滿創意的你是否有想到過在衣服上安裝各種電子元件，做成會亮燈、會播放音樂、又會監測溫度的衣服。有了LilyPad，這些超酷的功能都可以成為現實。你可以把LilyPad主控器和Led燈等設備縫在衣服上。並通過導電線，將這些元件按照電路原理鏈接。然後這些電子元件就可以工作了，讓衣服發出五顏六色的光。

LilyPad Arduino是一塊基與Arduino開放原始代碼的Simple i/o平台，並且具有使用類似java,C語言的開發環境。讓您可以快速使用Arduino語言與Flash或Processing…等軟件，作出互動作品。Arduino可以使用開發完成的電子元件例如Switch或Sensors或其他控制器、LED、步進電機或其他輸出裝置。Arduino也可以獨立運作成為一個可以跟軟件溝通的平台，例如說：flash processing Max/MSP VVVV 或其他互動軟件…，Arduino開發IDE界面基於開放原始碼原則，可以讓您免費下載使用開發出更多令人驚奇的互動作品。

LilyPad是由Leah Buechley和SparkFun合作設計開發的一種可穿戴的技術。每個LilyPad都創造性的設計了大量的連接盤，以便他們能別輕鬆的縫製在衣服上。它有著各種輸入、輸出、電源和傳感器板。它們還可以被進行清洗。
注意事項：請記得清洗前拆掉電池。

• 輸入電壓：3.3V DC

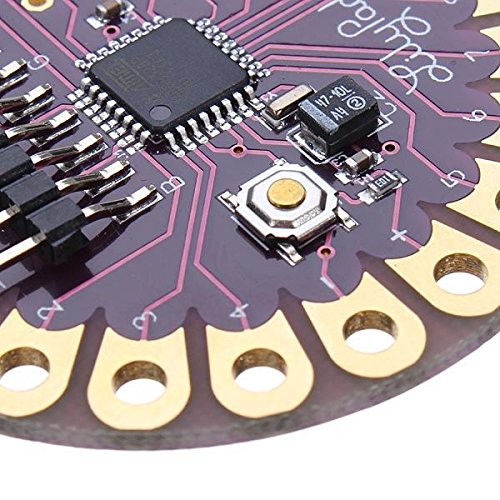

• 採用Atmel Atmega328V-20PU單片機
• Digital I/O 數字輸入/輸出端共0~13
• Analog I/O 模擬輸入/輸出端共0~5
• 支持ISP下載功能
• 支持單片機TX/RX端子
• 支持AREF端子
• 支持六組PWM端子(Pin11,Pin10,Pin9,Pin6,Pin5,Pin3)

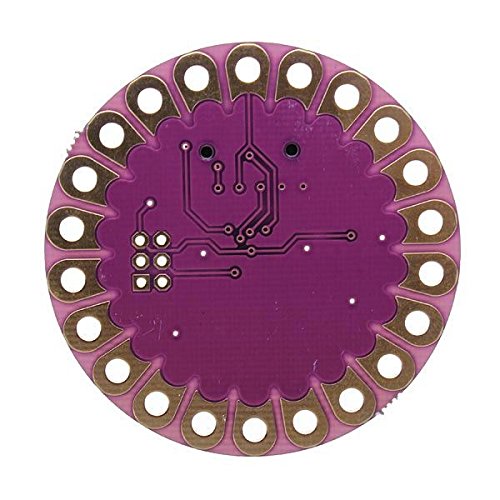

• 外形尺寸：外徑50mm;PCB厚度0.8mm


官方網站介紹

Description:This is LilyPad Arduino – the main board consisting of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. Board will run from 2V to 5V. The latest version of the LilyPad supports automatic reset for even easier programming. The back side of the LilyPad is now completely flat! We now use a surface mount programming connector to keep the header from poking through.

The LilyPad Arduino Main Board is based on the ATmega168V (the low-power version of the ATmega168) or the ATmega328V. The LilyPad Arduino was designed and developed by Leah Buechley and SparkFun Electronics.

This version of the LilyPad now uses the new ATmega328 at 8MHz. Arduino 0016 supports the Arduino Pro Mini 328/8MHz/16MHZ. Use this setting when using this new LilyPad 328.

LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!

Not sure which Arduino or Arduino-compatible board is right for you? Check out ourArduino Buying Guide!

Note:A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles and also to Arduino LLC to help fund continued development of new tools and new IDE features.
