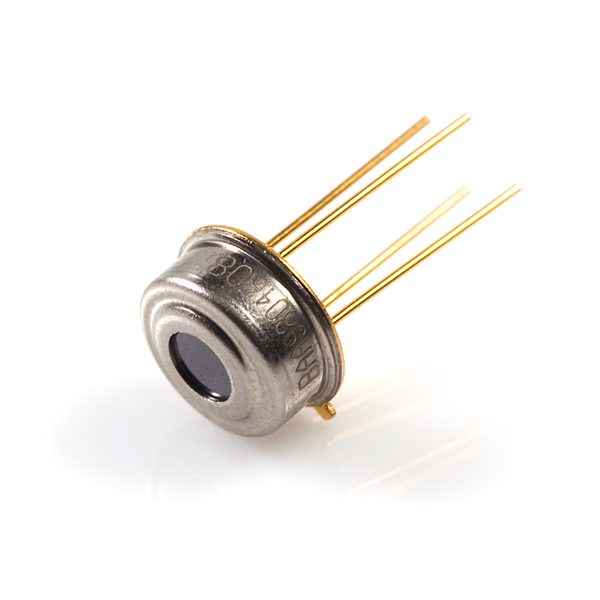

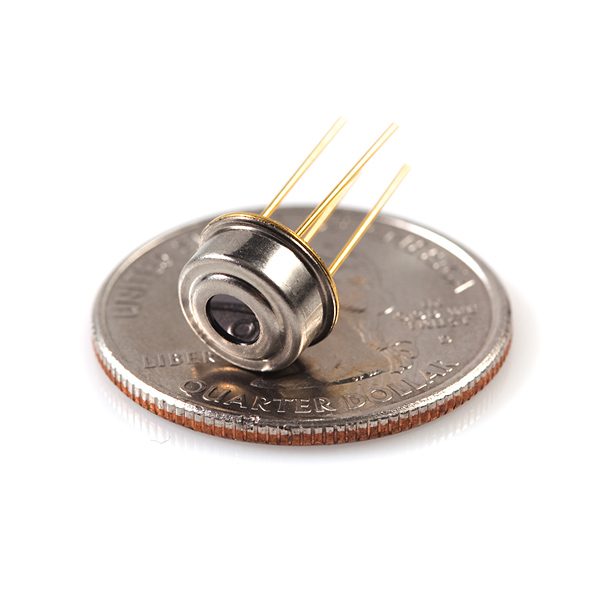

Infrared Thermometer – MLX90614 紅外線溫度感測器 SparkSun原廠
Melexis的MLX90614ESF-BAA是一款專為非接觸式溫度感測而設計的紅外溫度計。 內部的17位ADC和功能強大的DSP有助於MLX90614的高精度和高分辨率。 它有大量的應用,包括體溫測量和運動檢測。
- 商品說明
商品說明
Infrared Thermometer – MLX90614 紅外線溫度感測器 SparkFun原廠代理進口
Melexis的 MLX90614ESF-BAA 是一款專為非接觸式溫度感測而設計的紅外溫度計。 內部的17位ADC和功能強大的DSP有助於MLX90614的高精度和高分辨率。 它有大量的應用,包括體溫測量和運動檢測。
MLX90614提供兩種輸出方法:PWM和SMBus(即TWI,I2C)。 10位PWM輸出提供0.14°C的分辨率,而TWI接口的分辨率為0.02°C。 MLX90614經過出廠校準,溫度範圍廣:環境溫度-40至85°C,物體溫度-70至382.2°C。 測量值是傳感器視場中所有物體的平均溫度。 MLX90614在室溫附近提供0.5°C的標準精度。
這些器件採用工業標準的TO-39封裝。 我們正在攜帶這款傳感器的3V版本。
特徵
- 體積小,成本低
- 易於集成
- 工廠在寬溫度範圍內校準
- 傳感器溫度為-40至+ 85°C
- 物體溫度為-70至+ 380°C
- SMBus兼容的數字接口
- 可定制的PWM輸出,用於連續讀取
- 在寬溫度範圍內具有0.5°C的高精度(Ta和To均為0至+ 50°C)
- 測量分辨率為0.02°C
- 單區和雙區版本
- 適用於8至16V應用的簡單適配
- 節能模式
- 應用和測量多功能性的不同封裝選項
- 汽車級
Documents
=========================================================
Infrared Thermometer – MLX90614
Melexis’ MLX90614ESF-BAA is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications including body temperature measurment and movement detection.
The MLX90614 provides two methods of output: PWM and SMBus (i.e. TWI, I2C). The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to 382.2°C for the object temperature. The measured value is the average temperature of all objects in the Field Of View of the sensor. The MLX90614 offers a standard accuracy of 0.5°C around room temperatures.

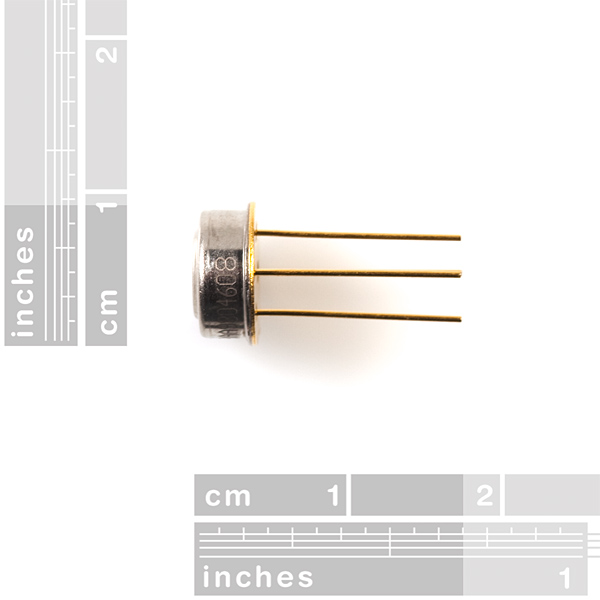

This devices comes in an industry standard TO-39 package. We’re carrying the 3V version of this sensor.
- Small size, low cost
- Easy to integrate
- Factory calibrated in wide temperature range:
- -40 to +85°C for sensor temperature
- -70 to +380°C for object temperature
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
- Measurement resolution of 0.02°C
- Single and dual zone versions
- Simple adaptation for 8 to 16V applications
- Power saving mode
- Different package options for applications and measurements versatility
- Automotive grade
