GY-91 MPU9250+BMP280 加速度陀螺儀 指南針 BMP280 氣壓計 9DoF

商品說明

GY-91 MPU9250+BMP280  產品介紹

MPU-9250+BMP280 模組 (三軸陀螺儀 + 三軸加速度+三軸磁場+氣壓)

• 模組型號：GY-91
• 使用晶片：MPU-9250 +BMP280
• 供電電源：3-5v（內部低壓差穩壓）
• 通信方式：標準IIC/SPI通信協議
• 晶片內置16bit AD轉換器, 16位數據輸出
• 陀螺儀範圍：±250 500 1000 2000 °/s
• 加速度範圍：± 2 ±4 ±8 ±16g
• 磁場範圍：  ±4800uT
• 氣壓範圍：  300-1100hPa

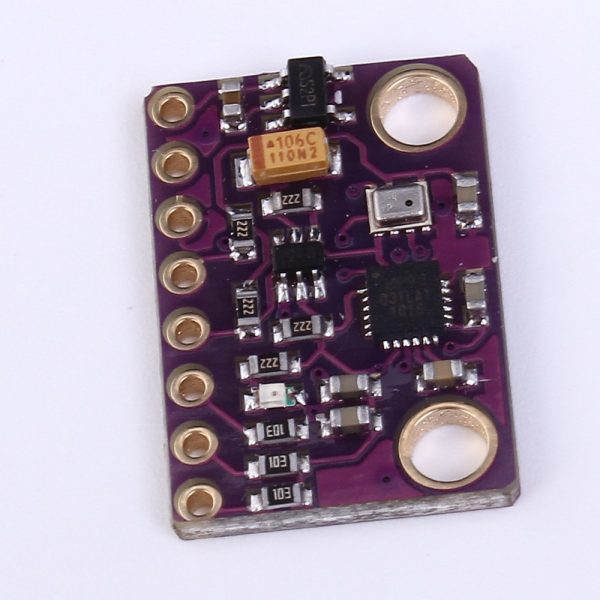

採用沉金PCB, 機器焊接工藝保證質量, 引腳間距2.54mm ,模組尺寸14.3 mm *20.5mm

MPU-9250 BMP280  Gyroscope Accelerometer Compass Pressure Sensor Breakout Board I2C SPI Interface for Arduino

This mini 10-axis attitude sensor module is equipped with MPU9250+BMP280 IC supporting 3-axis gyro,3-axis acceleration, 3-axis magnetic field and barometric Pressure detection. Built-in 16 bit ADC with standard IIC/SPI serial communication easy to connect with the MCU developemnt.

Specifications:
Chip:MPU-9250,BMP280
Power Supply: DC 3-5V
Communication: IIC
Gyroscope Range: ±250 500 1000 2000 °/s
Acceleration range: ±2 ±4 ±8 ±16g
Magnetic Field Range: ±4800ut
Pressure Range: 300-1100hPa

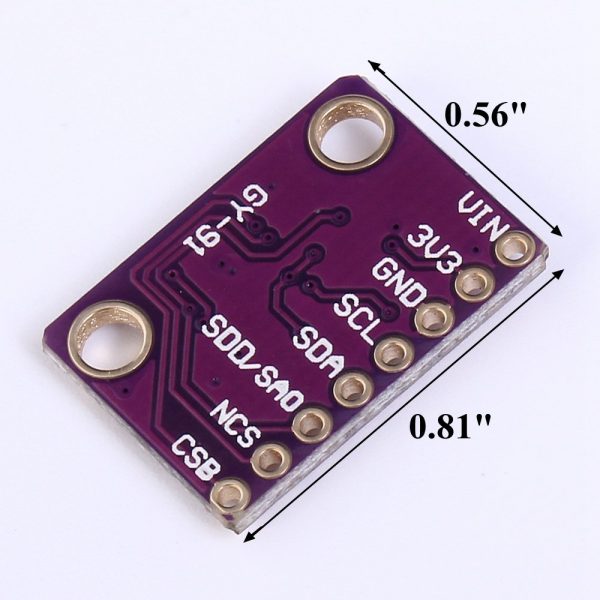

Moudle Size: 20.5X14.3mm/0.81 X 0.56inch

Package Included:

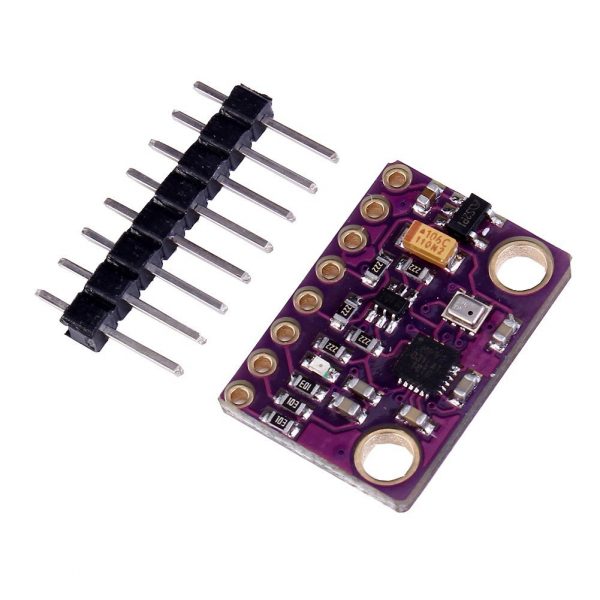

1X MPU-9255 BMP280 9DOF Gyroscope Accelerometer Compass Pressure Sensor Module

GY-91 MPU9250 + BMP280 加速度陀螺儀 指南針
