GY-88A 10DOF 三軸陀螺儀三軸加速度+三軸磁場+氣壓 飛控感測器模組

GY-88A 10DOF 三軸陀螺儀三軸加速度+三軸磁場+氣壓 飛控感測器模組

NT$571 未稅

GY-88A 10DOF 三軸陀螺儀三軸加速度+三軸磁場+氣壓

採用沉金PCB工藝, 使用芯片:MPU6050+MMC5883+BMP185 . 供電電源:3-5v , 通信方式:IIC通信協議(完全兼容3-5v系統,含LLC電路) . 尺寸:2.2cm*1.7cm

尚有庫存

貨號: 86537324(A7-18) 分類: 標籤: , , , , ,
  • 商品說明

商品說明

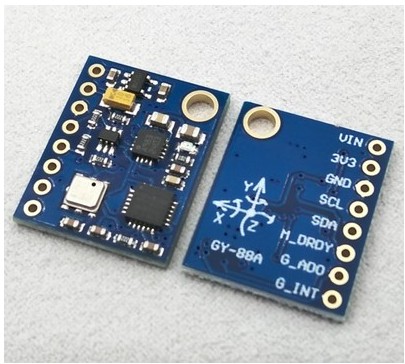

GY-88A MPU-6050+MMC5883+BMP185   10DOF 三軸陀螺儀三軸加速度+三軸磁場+氣壓感測器

10DOF模組 (三軸陀螺儀+三軸加速度+三軸磁場+氣壓)

使用晶片:MPU6050+MMC5883+BMP185

供電電源:3-5v

通信方式:IIC通信協定(完全相容3-5v系統,含LLC電路)

10DOF IMU MPU6050 MMC5883 BMP185 Arduino accel gyro baro mag gy-88A uno mega due
3.3-5v compatible
MPU 6050 Motion Sensor module: 3-axis gyroscope, 3-axis accelerometer
HMC5883L module (three-axis magnetic field module)
BMP185 barometer pressure sensor
Chip: MPU-6050
Power supply: 3v-5V power
gyroscope range: + 250 500 1000 2000 °/ s
Acceleration range: ± 2 ± 4 ± 8 ± 16 g
HMC5883L: Measuring range: ± 1.3-8 Gauss.

10DOF module: 3-axis gyroscope, 3-axis accelerometer, three-axis magnetic field module, barometer pressure; Adopt turmeric PCB technology; Chip: MPU6050 + HMC5883L + BMP085; Power supply: 3~5V; Communication mode: IIC communication protocol (fully compatible with 3~5V system, include LLC circuit)
