Grove – WS2813 RGB LED 防水燈條 – 30 LED / m – 1m seeed原廠


Grove – WS2813 RGB LED 防水燈條 – 30 LED / m – 1m seeed原廠

NT$333 NT$286 未稅



貨號: 104020108(A7-8) 分類: , , 標籤: , ,
  • 商品說明

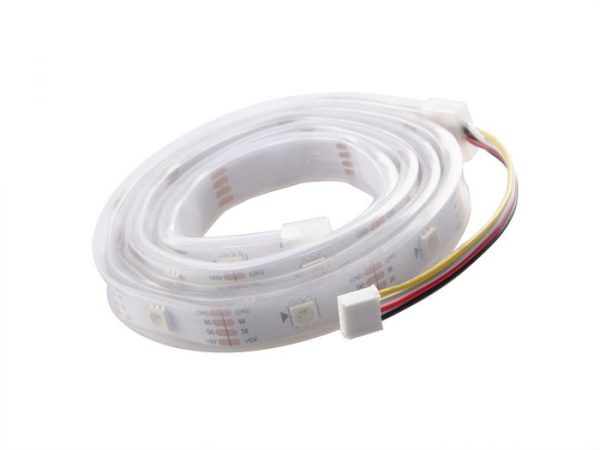

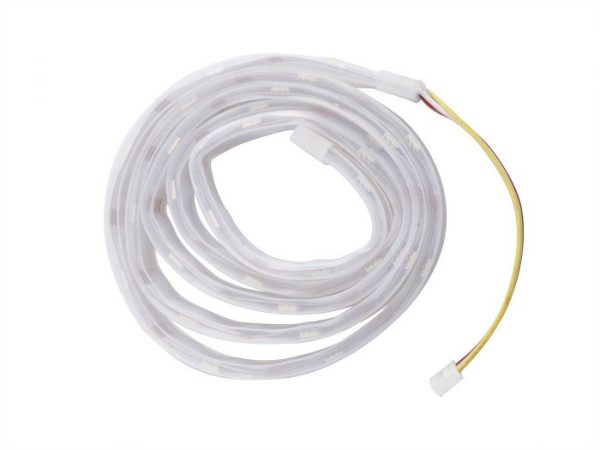

Grove – WS2813 RGB LED 防水燈條 – 30 LED / m – 1m

長期以來,我們的集市上已經有幾種LED燈條可供選擇,但是沒有與Grove兼容的LED燈條。現在,我們推薦 Grove – WS2813 RGB LED Strip 防水燈條 。


  • Grove兼容 – 您可以通過Grove電纜將LED燈帶插入Seeedunio或Arduino + BaseShild,無需焊接,無需複雜佈線。
  • WS2813 – WS2813是WS2812的升級版本,它比WS2812更穩定,更強大:1-支持從斷點恢復 ;2-所有電子元件都集成在燈珠中
  • 防水 – 我們為這些LED燈條添加透明防水插槽


Grove - WS2813 RGB LED 防水燈條



  • Grove兼容
  • 從斷點處恢復,即使LED發生故障,其餘LED也可以正常工作。
  • WS2813B IC,5050 LED
  • 防水,IP65
  • 全彩RGB,16777216色,256級亮度







工作電壓 DC 5V
工作電流 每米1.8A /每個LED 0.06A
工作溫度 -40℃~70℃
貯存溫度 -50℃~80℃
最大。功率 每米9W /每個LED 0.3W
掃描頻率 2KHz的/秒
最大。數據傳輸率 800Kbps /秒
重置時間 > 280us(典型值= 300us)
LED工作壽命 50000小時




  • Grove – WS2813 RGB LED Strip Waterproof – 30 LED/m – 1m x1






Grove – WS2813 RGB LED Strip Waterproof – 30 LED/m – 1m

Several kinds of LED Strips have already been available in our bazaar for a long time, however, there were no Grove compatible LED strips. Now, we recommend the Grove – WS2813 RGB LED Strip Waterproof series for you.

This series products are awesome, and have three significant advantages over other products:

  • Grove Compatible – you can just plug your LED Strip to Seeedunio or Arduino+BaseShild via Grove Cable, no soldering, no complicated wiring.
  • WS2813 – WS2813 is an upgraded version of WS2812, which is much more stable and stronger than WS2812:1- support Resume from broken point;2- all electronic components are integrated into the lamp beads
  • Waterproof – we add a transparent waterproof slot for those LED Strips

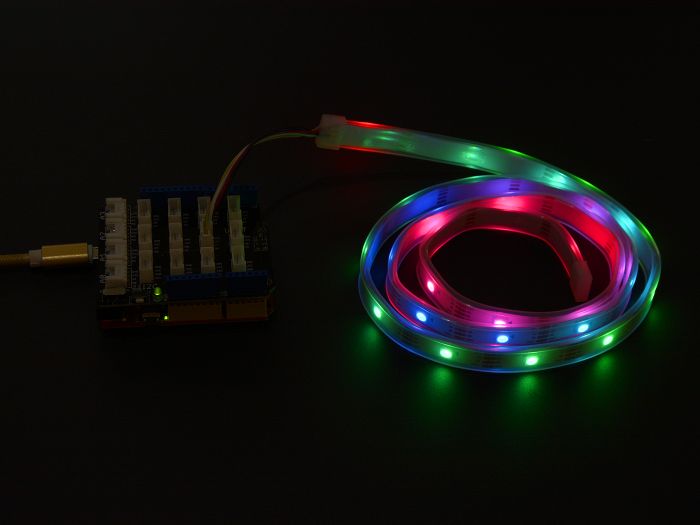

We hope you enjoy it, just use those LED Strips to decorate your house, color your devices, and light up your way in darkness.


  • Grove Compatible

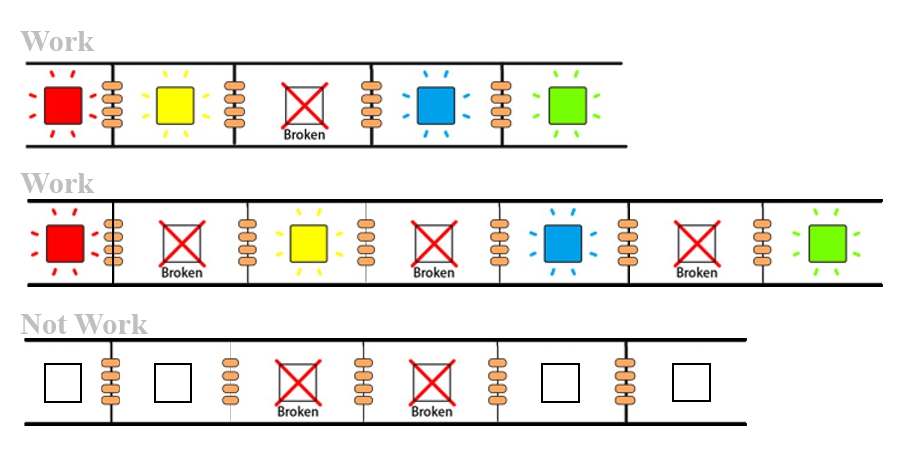

  • Resume from broken point, even if there were broken LEDs, the rest LEDs can work well.
  • WS2813B IC, 5050 LED
  • Waterproof, IP65
  • Full color RGB, 16777216 colors, 256 levels of brightness

Technical details

Operating Voltage DC 5V
Operating Current 1.8A per meter / 0.06A per LED
Operating Temperature -40℃ ~ 70℃
Storage Temperature -50℃ ~ 80℃
Max. Power 9W per meter / 0.3W per LED
Scanning Frequency 2KHz/s
Max. Data Transfer Rate 800Kbps/s
Reset Time >280us (typical = 300us)
LED Working Life-Span 50000 Hours
