Grove – Vibration Motor 振動馬達 直流馬達模組 seeed原廠

商品說明

Grove – Vibration Motor 振動馬達模組|直流馬達|適用玩具和手機模組 seeed原廠

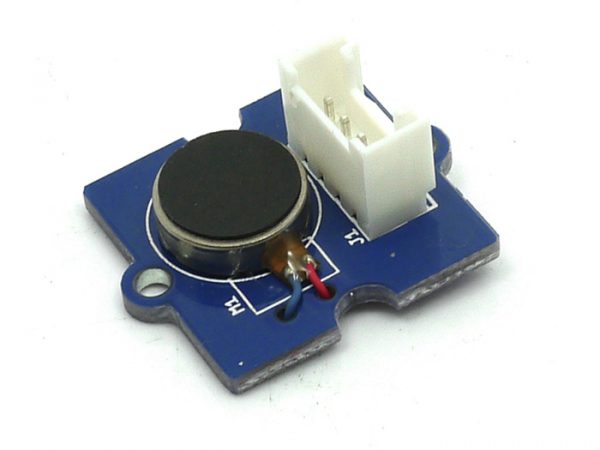

這是一款無聲的迷你震動馬達模組。當輸入高電平時，電機會像手機在靜音模式一樣振動，支援 Arduino 與 Raspberry Pi。

特徵

• 兼容Grove
• 無聲
• 低功耗
• 高可靠性

規格參數

項目	最小值	典型值	最大值
工作電壓	3.0V	5.0V	5.5V
控制模式	邏輯電平（高電平電機啟動，低電平電機停止）
額定轉速	9000 rpm

產品使用

讓電機振動像點亮一個發光二極管一樣簡單。示例演示瞭如何讓啟動電機。

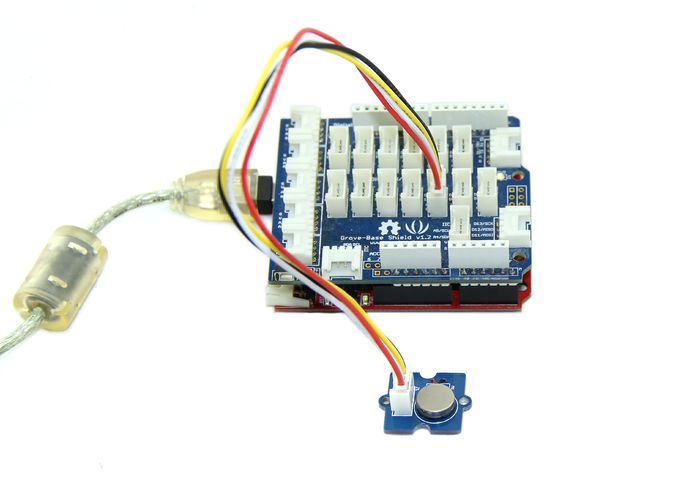

1.用Grove接線將電機接到Grove基礎擴展板的數字端口9。
2.將Grove基礎擴展板插到Arduino板上。 3.用USB線將Arduino連接到電腦。 4.將下面的代碼複製粘貼到一個新建的Arduino文件並載入到Arduino中。如果不知道怎樣載入，請您點擊這裡。 示例代碼如下：


int MoPin = 9; // vibrator Grove connected to digital pin 9

void setup() {
  pinMode( MoPin, OUTPUT );
}

void loop() {

    digitalWrite(MoPin, HIGH);
    delay(1000);

    digitalWrite(MoPin, LOW);
    delay(1000);
 }

}

現在，感受來自電機的振動吧！

With Raspberry Pi

1.You should have got a raspberry pi and a grovepi or grovepi+.
2.You should have completed configuring the development enviroment, otherwise follow here.
3.Connection

• Plug the sensor to grovepi socket D8 by using a grove cable.

4.Navigate to the demos’ directory:

   cd yourpath/GrovePi/Software/Python/

• To see the code

   nano grove_vibration_motor.py   # "Ctrl+x" to exit #

import time
import grovepi

# Connect the Grove Vibration Motor to digital port D8

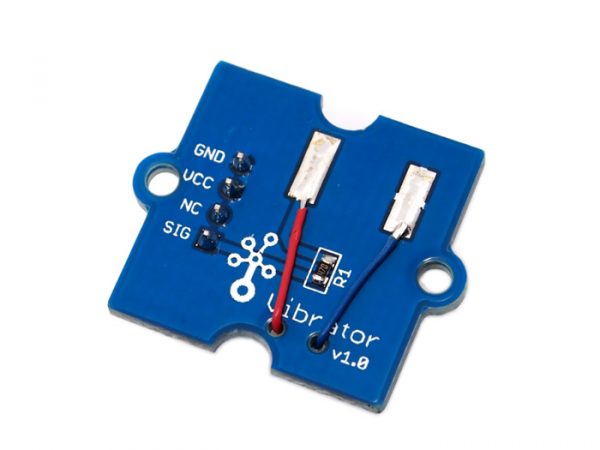

# SIG,NC,VCC,GND
vibration_motor = 8

grovepi.pinMode(vibration_motor,"OUTPUT")

while True:
    try:
        # Start vibrating for 1 second
        grovepi.digitalWrite(vibration_motor,1)
        print 'start'
        time.sleep(1)

        # Stop vibrating for 1 second, then repeat
        grovepi.digitalWrite(vibration_motor,0)
        print 'stop'
        time.sleep(1)

    except KeyboardInterrupt:
        grovepi.digitalWrite(vibration_motor,0)
        break
    except IOError:
        print "Error"

5.Run the demo.

   sudo python grove_vibration_motor.py



出貨清單

• Grove – Vibration Motor x1
• Grove連接線 x1



Documents

• Grove – Vibration Motor wiki



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Grove – Vibration Motor

It consists of one coin type motor which is a Permanent Magnet coreless DC motor. It vibrates when the input logic is HIGH. It is very easy to drive and Grove compatible. Can be used in toys and cell phone modules.

Features

• Grove compatible
• Non-audible
• Low power consumption
• High reliability



Specifications
