Grove-Turbidity Sensor (Meter) 水濁度感測器 For Arduino 水質檢測 養殖環境監測

商品說明

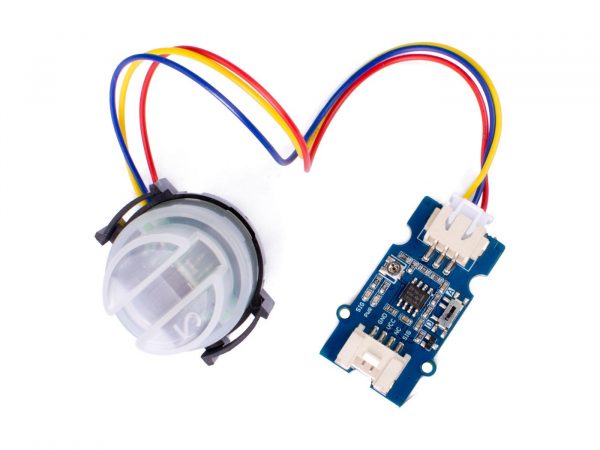

Grove-Turbidity Sensor (Meter) 水濁度感測器 適用於Arduino

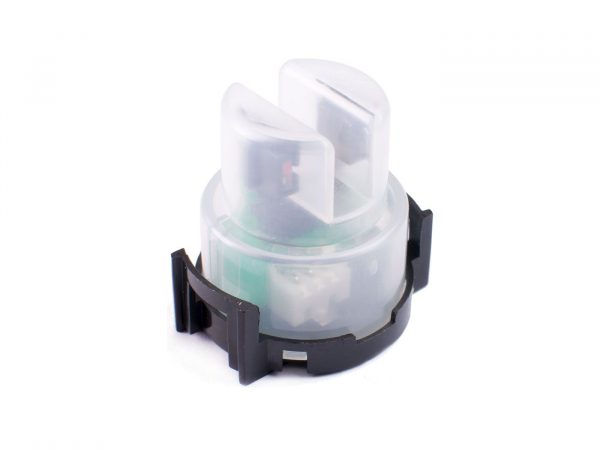

Grove-Turbidity Sensor濁度感測器可以測量水的濁度（懸浮顆粒的數量）。該模組的光學傳感器可以利用光電晶體管和二極管之間的波長折射來測量混濁水的密度和外來物質的濃度。通過使用光學晶體管和光學二極管，光學傳感器測量從光源到受光器的光量，以計算水的濁度。可以通過調節板上的開關來選擇輸出模式。支持模擬和數字輸出。靈敏度可以通過板載旋鈕進行調節。



Turbidity Sensor 特徵

• 低功耗

• 小尺寸：2.0厘米x 4.0厘米格羅夫模塊

• 僅需3個引腳即可節省I / O資源

• 易於使用：Grove連接器，即插即用

• 輸出模式可選，支持模擬輸出和數字輸出



Turbidity Sensor 規格

• 工作電壓：3.3V / 5V DC

• 輸出接口：模擬/數字

• 連接器：1個Grove，1個電源接口

• LED：1個電源LED，1個信號LED

• 開關：1個A-D撥動開關

• 尺寸：20×40毫米

Turbidity Sensor 應用

• 測量洗衣機（如洗碗機）的水污染程度，以確定最佳的洗滌時間和漂洗時間。

• 工業現場控制。

• 環境污水收集。

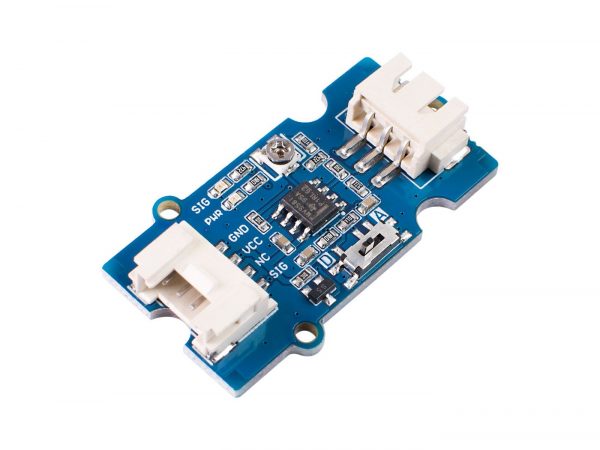

Turbidity Sensor 硬件引腳

出貨清單

• Grove 濁度傳感器 x1

• 傳感器探頭 x1

• 20cm Grove 連接線 x1

• 連接電線 x1

Documents

[Wiki] Grove – Turbidity Sensor Meter for Arduino V1.0

[Project] Mini Water Quality Station

Grove – Turbidity Sensor (Meter) for Arduino V1.0

Key Features

• Low power consumption

• Small size: 2.0cm x 4.0cm Grove module

• Only 3 pins needed, save I/O resources

• Easy to use: Grove connector, plug and play

• Output mode optional, support analog output and digital output

Description

The Grove turbidity sensor can measure the turbidity of the water (the number of suspended particles).

The optical sensor of this module can measure the density of turbid water and the concentration of extraneous matter using the refraction of wavelength between photo transistor and diode. By using an optical transistor and optical diodes, an optical sensor measures the amount of light coming from the source of the light to the light receiver, in order to calculate turbidity of water.

The output mode can be selected by adjusting the switch on the board. Supports analog and digital output. The sensitivity can be adjusted by the on-board knob.

Specification

• Operating Voltage: 3.3V/5V DC

• Output Interface: Analog/Digital

• Connector: 1 Grove, 1 power interface

• LEDs: 1 power LED, 1 signal LED

• Switch: 1 A-D toggle switch

• Dimensions: 20×40 mm

Typical Application

• Measure the water pollution degree of washing machines such as dishwashers to determine the optimal washing time and rinsing times.

• Industrial site control.

• Environmental sewage collection.

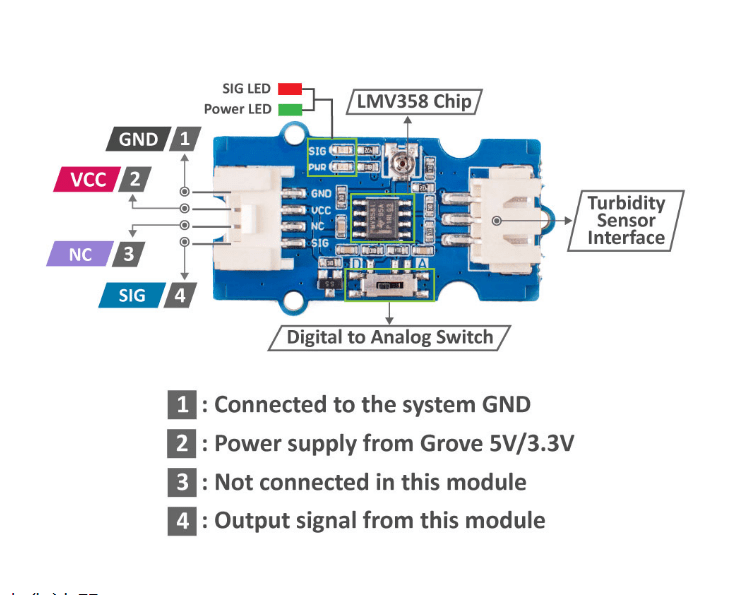

Hardware Pinout

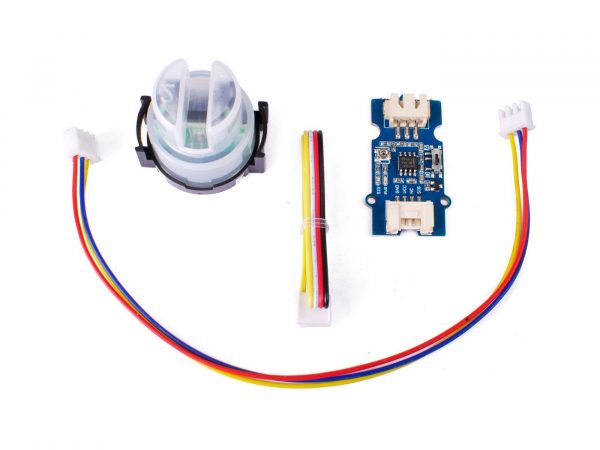

Part List

• 1 x Grove Turbidity Sensor

• 1 x Sensor Probe

• 1 x 20cm Grove Cable

• 1 x Connecting Cable
