Grove – Relay 繼電器模組 ( 峰值電壓能力250V 10安培) 支援 Arduino 與 Raspberry Pi seeed原廠

商品說明

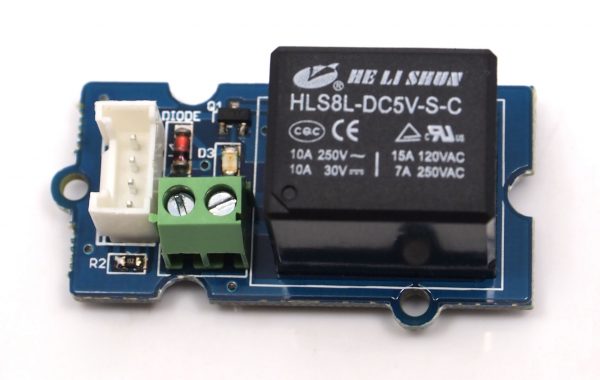

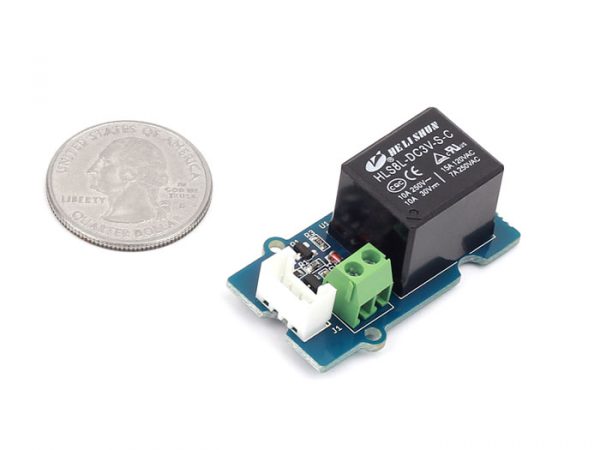

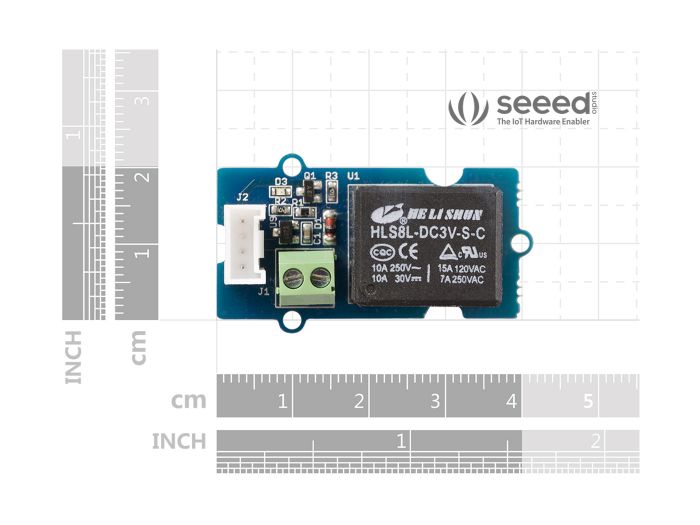

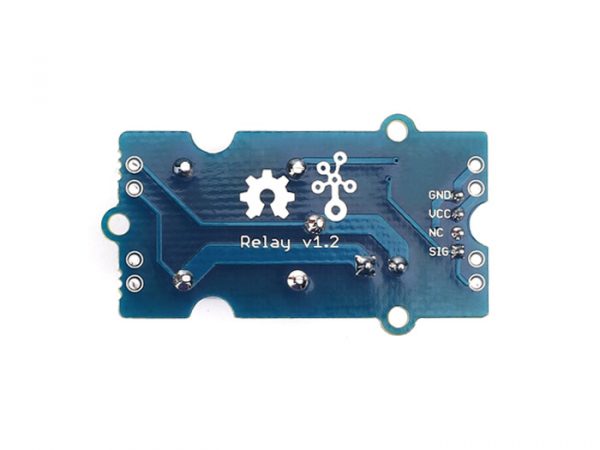

Grove – Relay 繼電器模組 ( 峰值電壓能力250V 10安培) 支援 Arduino 與 Raspberry Pi

Grove-Relay模塊是一個數字常開開關。通過它你可以使用較低的電壓達到控制高電壓的目的，如控制器上的5V電壓就可以。板上有一個LED指示燈，當受控端閉合時，它將亮起。

規格參數

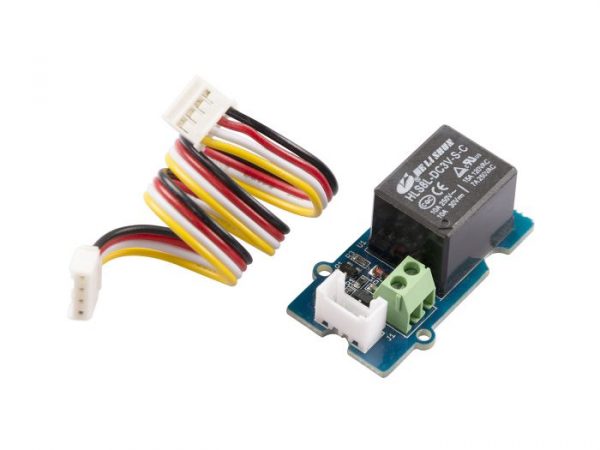

• Grove – Relay x1
• Grove連接線 x1





Documents

• Grove – Relay wiki
• Relay_Datasheet
• Grove – Relay Eagle File



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Relay

The Relay is a digital normally open switch that controls a relay capable of switching much higher voltages and currents than your normal Arduino boards. When set to HIGH, the LED will light up and the relay will close allowing current to flow. The peak voltage capability is 250V at 10 amps.

Please exercise great care when working with mains voltages— if in doubt contact a professional such as a licensed electrician for help.

Version
