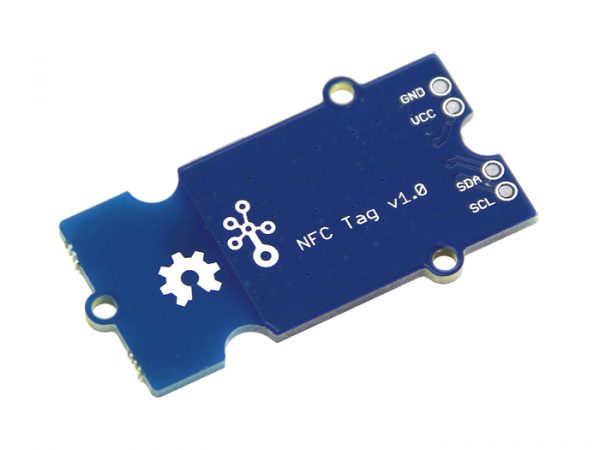

Grove – NFC Tag 近場通訊標籤模組

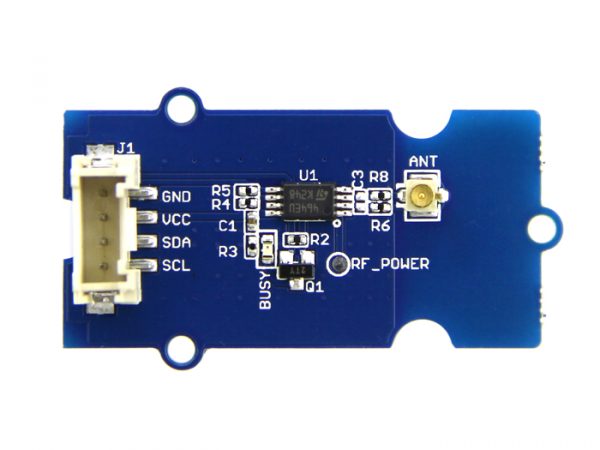

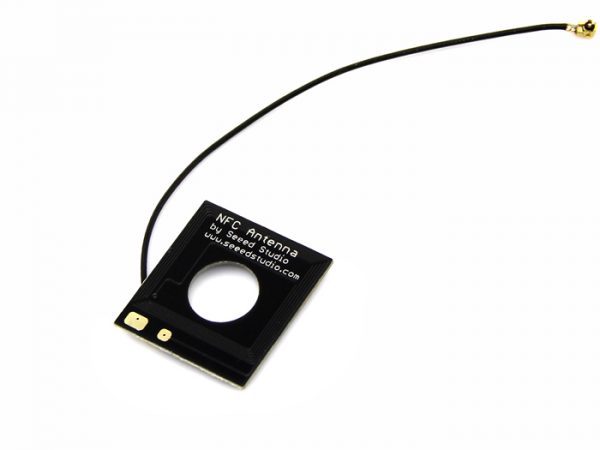

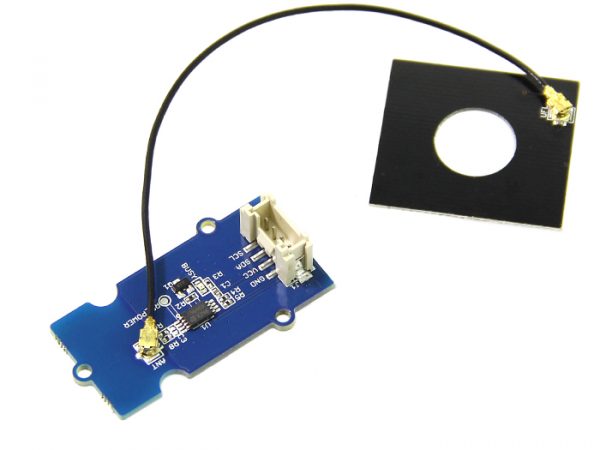

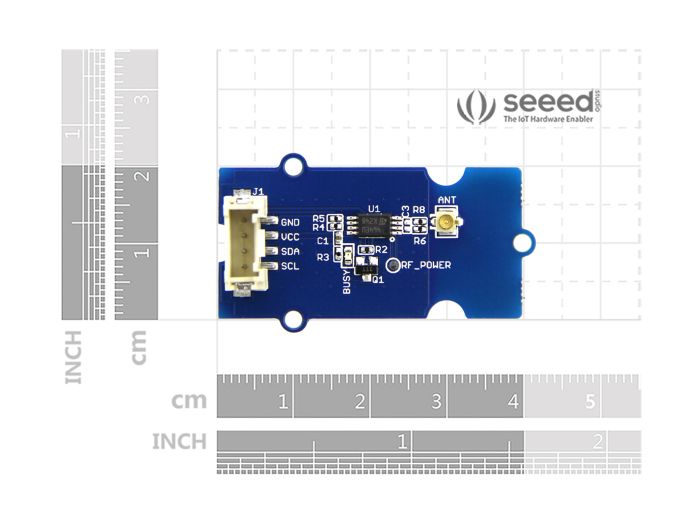

Grove – NFC Tag 是一款基於意法半導體M24LR64E-R集成解決方案的近場標籤模塊。通過I2C接口與主機通信，內建64位唯一識別碼同時集成了64Kbit EEPROM。模塊外擴了一個PCB天線，可以很方便安裝到您設計的結構中。

規格參數

• 工作電壓:5V or 3V3
• 工作電流<1mA
• 識別距離< 2cm
• 工作頻率: 13.56MHz
• 符合ISO 15693 and ISO 18000-3 1標準
• 64-bit 唯一識別碼(UID)
• I2C 接口通信
• Grove 接口

應用實例

手機讀寫模塊

1. 下載安裝NfcV-reader for Androud and install it

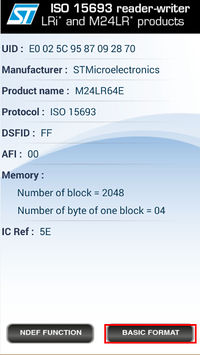

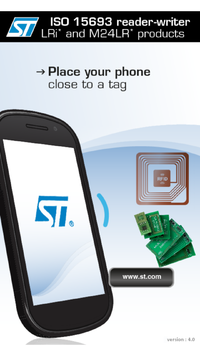

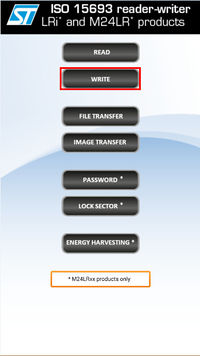

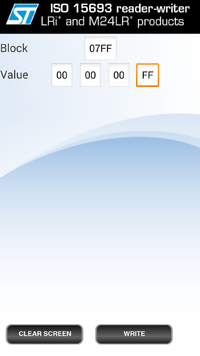

2. 啟動手機軟件，可以按照以下步驟讀寫標籤

控制LED燈

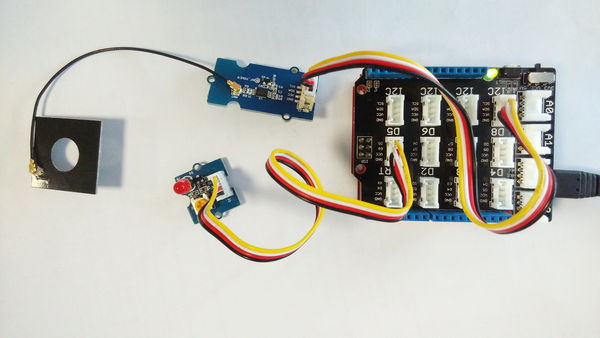

1. 硬件如下圖所示連接

1. 下載NfcV-reader for Androud，安裝
2. 下載NFC Tag Lib重命名為“NFC_Tag_M24LR6E”並且把次文件添加到Arduino’s庫裡面.
3. 打開Arduino IDE. 如果Arduino IDE已經打開,重啟以下.
4. 在Arduino IDE,點擊: File -> Example -> NFC_Tag_M24LR6E -> ledControl
5. 下載完程序，現在可以通過手機去控制LED燈啦


#include "NfcTag.h"
#include <Wire.h>

NfcTag nfcTag ;
int led =  5 ;
bool flag =  false ;
bool preFlag =  false ;
void  setup ( ) {
  Serial . begin ( 9600 ) ;
  pinMode ( led, OUTPUT ) ;
  nfcTag. init ( ) ;
}

void  loop ( ) {
  flag = nfcTag. readByte ( EEPROM_I2C_LENGTH - 1 )  ==  0xff ? true : false ;
  if ( flag ! = preFlag ) {
    Serial . println ( "get remote NFC control signal!" ) ;
    if ( flag ==  true ) {
      Serial . println ( "led will light up!" ) ;
      digitalWrite ( led, HIGH ) ;
    } else {
      Serial . println ( "led will turn dark!" ) ;
      digitalWrite ( led, LOW ) ;
    }
    preFlag = flag ;
  }
  delay ( 5 * 1000 ) ;
}

出貨清單

• Grove – NFC Tag x1
• Grove連接線 x1

Documents

• Grove – NFC Tag wiki

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Grove – NFC Tag

Grove – NFC Tag is a highly integrated Near Field Communication Tag module,this module is I2C interface,which base on M24LR64E-R,M24LR64E-R have a 64-bit unique identifier and 64 -Kbit EEPROM.Grove – NFC Tag attach an independent PCB antenna which can easily stretch out of any enclosure you use, leaving more room for you to design the exterior of your project.

Specifications

• Working Voltage:5V or 3V3
• Working Current<1mA
• Effective range<2cm
• Serve for contactless communication at 13.56MHz
• ISO 15693 and ISO 18000-3 mode 1 compatible
• 64-bit unique identifier (UID)
• Read Block & Write (32-bit blocks)
• Grove I2C Interface
