Grove – LoRa Radio 868MHz 無線射頻開發模組 seeed原廠

商品說明

Grove LoRa Radio 868MHz 無線射頻開發模組

Grove是由Seeed Studio開發的一個非常強大的平台，可以簡化您的物聯網項目。我們已經將grove連接器集成到Seeed生產的大多數主板上，以使它們成為一個系統。這一次，我們將Grove與LORA相結合，為您提供超遠距離無線模塊。

Grove-LoRa Radio 868MHz的主要功能模塊是RFM98，它是一款採用LoRa遠程調製解調器的收發器，可提供超長距離擴頻通信且高抗干擾性，同時消耗微量電流.Grove-LoRa Radio 868MHz的核心處理器是ATmega168的，這是一種廣泛使用的芯片，具有很高的性能和低功耗，特別適用於這個Grove模塊。

我們已經集成了一個簡單的線天線來接收信號，如果信號太弱，不用擔心，天線旁邊的MHF連接器可以用來增加一個帶有MHF接口的天線，雙天線可以獲得更多的信號。

特徵

• 使用基於SX1276LoRa®的RFM95模塊
• 工作電壓：5V / 3.3V
• ~28mA（Avg）@ + 20dBm持續傳輸模式
• 〜8.4毫安（平均）@待機模式
• ~20mA（Avg）@接收模式，BW-500kHz
• 工作溫度：-20 – 70℃
• 接口：Grove – UART（RX，TX，VCC，GND）
• 簡易線天線或者帶MHF連接頭的高增益天線
• 工作頻率：868MHz
• 電源輸出能力+ 20dBm 100 mW
• 尺寸：20 *40毫米
• 速率：0.3kps〜50kps
• 簡單易用的Arduino庫
• 備用可擴展MHF天線接頭

出貨清單

• Grove – LoRa Radio 868MHz x1
• Grove連接線 x1



Documents

• Grove – LoRa Radio 868MHz wiki





＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove LoRa Radio 868MHz

Grove is a very powerful platform developed by Seeed Studio to simplify your IoT projects.We have integrated the grove connector to most boards produced by Seeed to make them become a system. This time, we combined Grove with LoRa to provide an ultra-long-range wireless module for you.

The main functional module in Grove – LoRa Radio 868MHz is RFM95, which is a transceiver features the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove – LoRa Radio 868MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

There we already integrated a simple wire antenna to receive signal, if the signal is too weak to receive, don’t worry, the MHF connector next to the antenna is for adding a second antenna which has MHF interface to gain more signal.

Note:

• Please keep the antenna vertical to the board and as straight as possible to make the best performance.
• Please avoid making any big metal object near the antenna and a metal cape is also not recommended if you need to add a cape for your device.

Features

• Using RFM95 module based on SX1276 LoRa®
• Inputting voltage: 5V/3.3V
• ~28mA(Avg) @+20dBm continuous transmit
• ~8.4mA(Avg)@standby mode
• ~20mA(Avg) @receive mode, BW-500kHz
• Working Temperature: -20 – 70℃
• Communication Interface: UART
• Simple wire antenna or MHF Connector for external high gain antenna
• Working Frequency: 868MHz
• +20dBm – 100 mW Power Output Capability

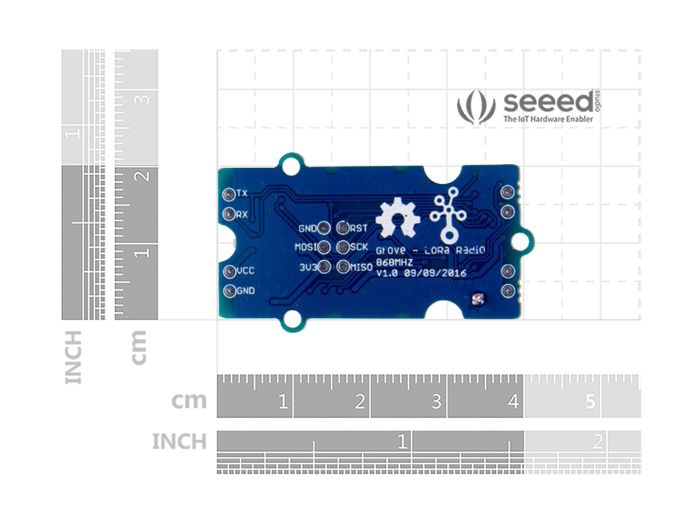

• Size: 20*40mm
