Grove – Heelight Sensor 語音識別模組 seeed原廠

-33%

Grove – Heelight Sensor 語音識別模組 seeed原廠

NT$381 NT$257 未稅

Grove Heelight Sensor 是一款智能語音傳感器,可識別tp 500數字語音命令。它最初用於Heelight – 一個可以通過數字聲波控制的智能彩色燈泡。現在我們將這個傳感器引入小巧整潔的Grove模塊,讓您在您的Arduino項目中實現智能控制。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Grove Heelight Sensor 語音識別模組

Grove Heelight Sensor是一款智能語音傳感器,可識別tp 500數字語音命令。它最初用於Heelight – 一個可以通過數字聲波控制的智能彩色燈泡。現在我們將這個傳感器引入小巧整潔的Grove模塊,讓您在您的Arduino項目中實現智能控制。

Grove - Heelight傳感器

特徵

  • 數字語音識別
  • 支持500多個數字語音命令
  • 與Grove系統兼容

規格參數

外形尺寸 20mm x20mm x10mm
重量 G.W 7g
電池 Exclude
工作電壓 DC 3.3V~5V
工作電流 15mA
識別範圍 0.1~10m
角度範圍 360°
波特率 115200
串口輸出 TTL logic level



出貨清單

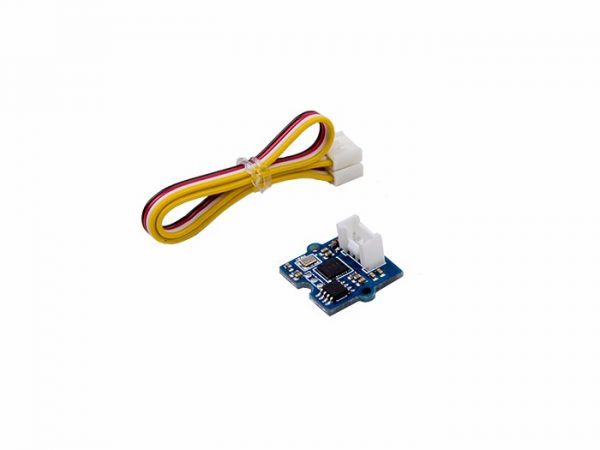

  • Grove – Heelight Sensor x1
  • Grove連接線 x1





Documents



=========================================================



Grove – Heelight Sensor

Grove – Heelight Sensor is a smart voice sensor that can recognize up to 500 digital voice commands(Click to download the voice file). It was originally used on the Heelight – a smart colorful bulb that can be controlled by digital sound waves. With the heelight sensor, there is no need for bluetooth, wifi, or zigbee to do non-contact light control. Now we introduce this sensor into the small and neat Grove modules, allow you to realize smart control in your Arduino – based projects.

Note: Please note that this sensor can only recognize digital voice. If you need human voice recognition module, please consider the Respeaker or Grove – Speech Recognizer.

Features

  • Digital Voice Recognition
  • Support over 500 digital voice commands
  • Compatible with the Grove system

Alternative Choice

If you want to use Heelight Sensor on a bread board or integrate it to your own product/PCBA, there’s a better choice for you—Heelight Core.

Technical details

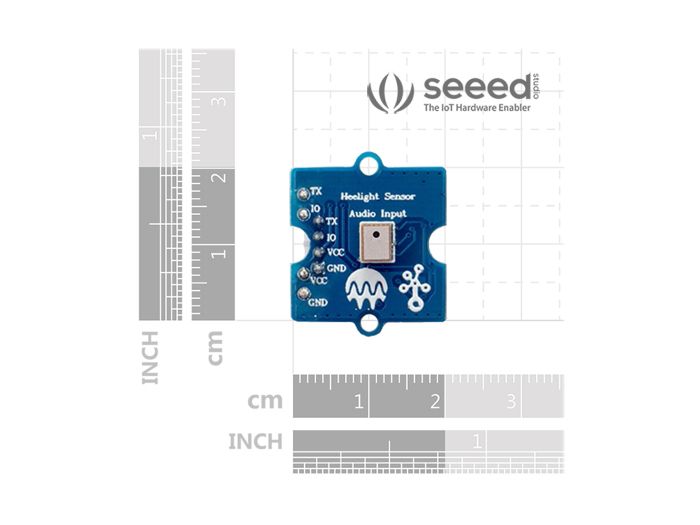

Dimensions 20mm x20mm x10mm
Weight G.W 7g
Battery Exclude
Operating Voltage DC 3.3V~5V
Operating Current 15mA
Identification Range 0.1~10m
Angle Range 360°
Baud Rate 115200
Serial Port Output TTL logic level
