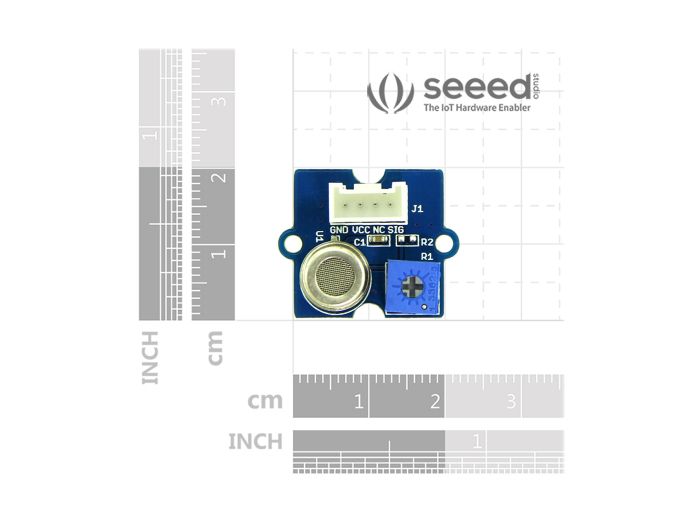

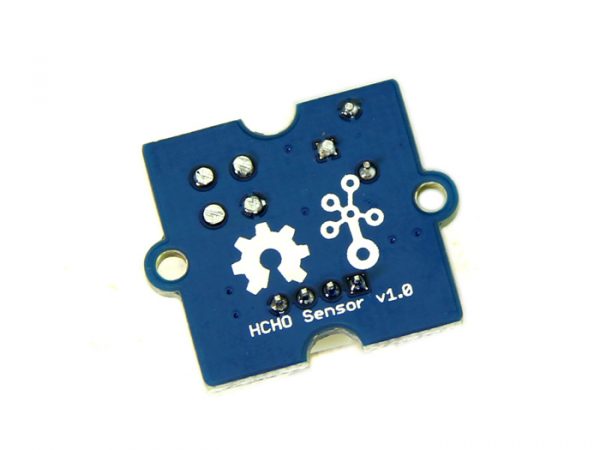

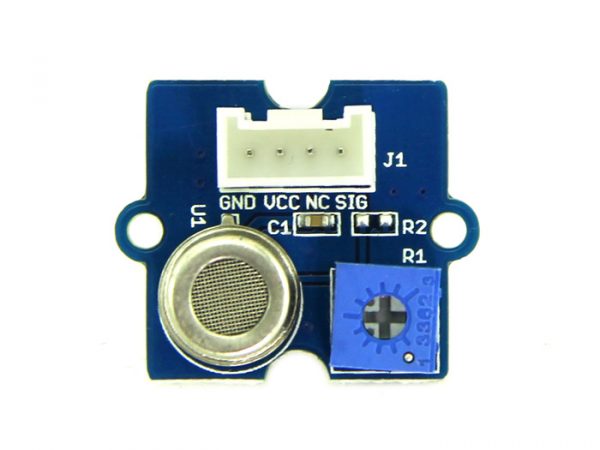

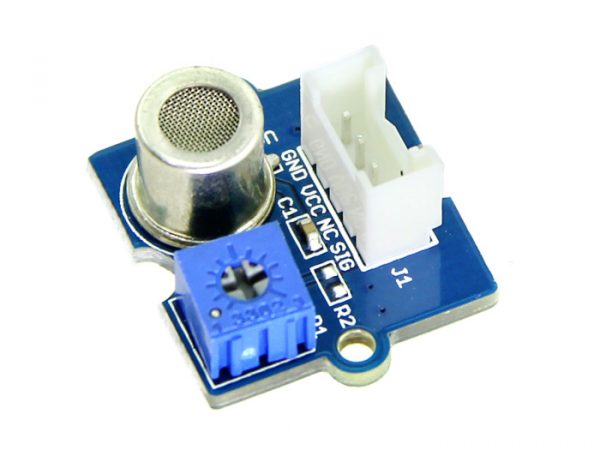

Grove – HCHO Sensor 甲醛氣體感測模組 可偵測甲醛/苯/酒精 seeed原廠

商品說明

Grove HCHO Sensor 甲醛氣體感測模組 可偵測甲醛/苯/酒精

Grove – HCHO Sensor是一種半導體VOC氣體傳感器。其設計基於WSP2110，它的電導率可以隨著空氣中VOC氣體濃度而變化。通過電路，電導率可以轉換為對應於氣體濃度的輸出信號。該傳感器可以檢測濃度高達1ppm的氣體。適用於檢測甲醛，苯，甲苯等揮發性成分。本產品可用於在家庭環境中檢測有害氣體。因此，這是提升室內環境質素的好幫手。

規格參數

工作電壓	5.0V±0.3V
目標氣體	甲醛，苯，甲苯，酒精
濃度範圍	1〜50 ppm
傳感器電阻值（Rs）	10KΩ-100KΩ（10ppm HCHO）
靈敏度	Rs（空氣中）/ Rs（10ppm HCHO）≥5



出貨清單

• Grove – HCHO Sensor x1
• Grove連接線 x1



Documents

• Grove – HCHO Sensor wiki





＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – HCHO Sensor

The Grove – HCHO Sensor is a semiconductor VOC gas sensor. It uses the VOC sensor WSP2110 whose conductivity changes with the concentration of VOC gas in air. With a circuit, the conductivity can be converted to an output signal that corresponds to the gas concentration. This sensor has a very high sensitivity and stability, it can detect the gas whose concentration is up to 1ppm. It can be used to detect Toluene, Methanal, Benzene, Alcohol, Acetone etc. This product can be used to detect the presence of harmful gas in the home environment. It can be a good assistant to improve indoor air quality.

Specification

• Operating Voltage: 5.0V ± 0.3V
• Target Gases: HCHO, Benzene,Toluene, Alcohol
• Concentration Range: 1~50 ppm
• Sensor Resistance Value(Rs): 10KΩ-100KΩ(in 10ppm HCHO)
• Sensitivity: Rs(in air)/Rs(10ppm HCHO)≥5
