Grove – Encoder 旋轉編碼器 增量式360度旋轉編碼器 seeed原廠

商品說明

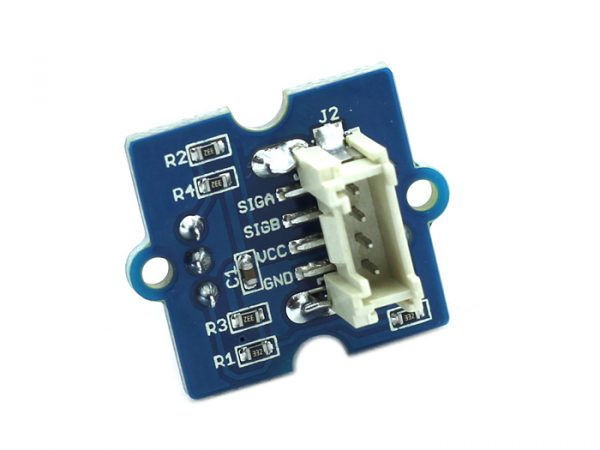

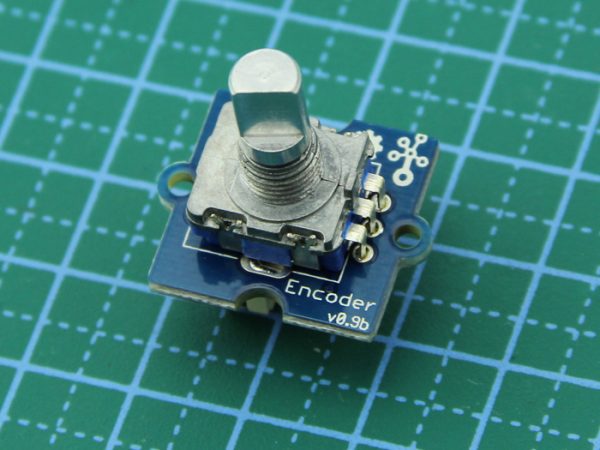

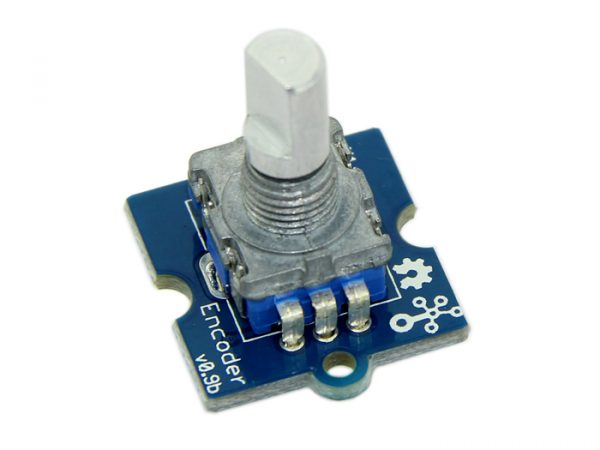

Grove – Encoder 旋轉編碼器 增量式360度旋轉編碼器

Grove – Encoder 旋轉編碼器 ，這個模塊是增量式旋轉編碼器。它編碼由軸和輸出由電子脈衝信號的旋轉信號。 當你需要一個旋鈕解碼器添加到您的項目，例如音量旋鈕，揚聲器，選擇面板或數字輸入，這將是你第一選擇。

特徵

• 增量式編碼器
• Grove接口
• 360度旋轉



規格參數

電壓	130mm x90mm x22mm
電流	GW 12g
尺寸	20 * 20mm



出貨清單

• Grove – Encoder x1
• Grove連接線 x1



Documents

• Grove – Encoder wiki



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Encoder

This module is an incremental rotary encoder. It encodes the rotation signal from the axis and output the signal by electronic pulse. The Grove – Encoder is one of the Grove series and has a standard Grove interface.

When you need to add a rotary knob to your project, for example a volume knob for a speaker, a selection panel or a digital input, this will be your first choice.

Note

It is able to generate another signal when it’s being pressed down. However due to the limitation of the number of Grove signal cable, the module is made without output of this signal.

Features

• Incremental encoder
• Grove Interface.
• 360 degree rotary

Specification

• Voltage: 4.5V~5.5V
• Current: 10mA~30mA

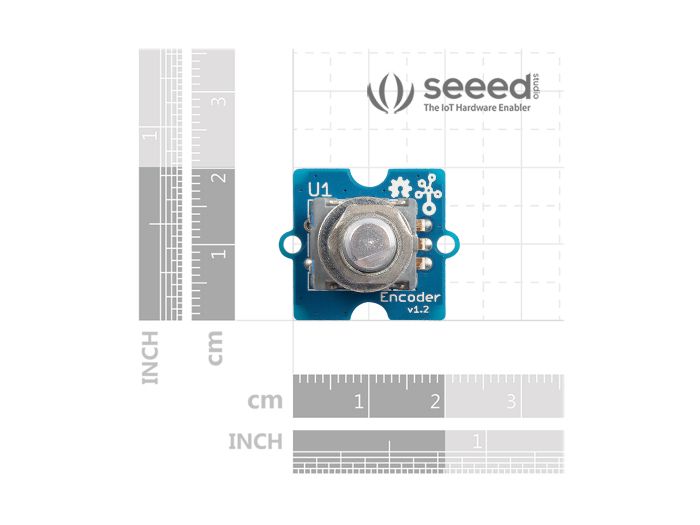

• Dimension: 20*20mm
• Net Weight: 12g
