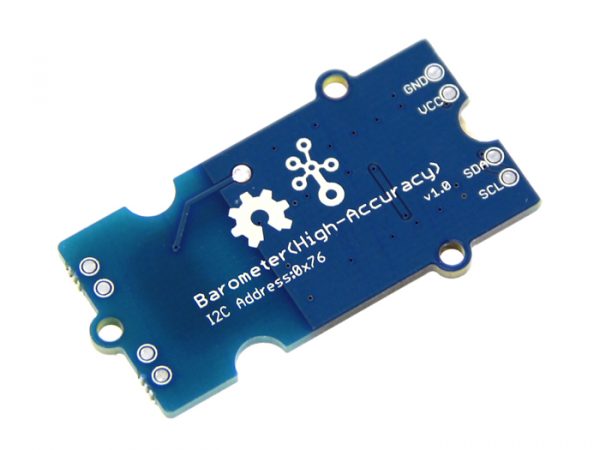

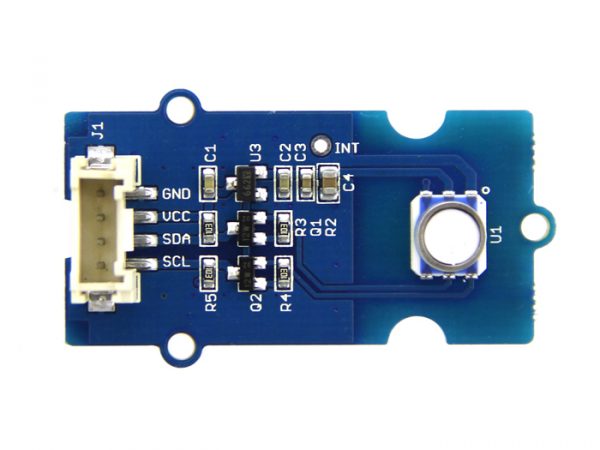

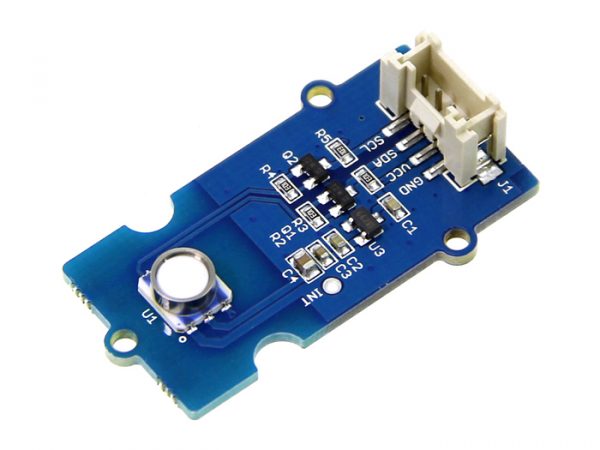

Grove – Barometer (High-Accuracy) 高精度氣壓 傳感器/感測器 i2c 通訊 seeed原廠

商品說明

Grove – Barometer 高精度 氣壓感測器 i2c 通訊

這款Grove – 氣壓計（高精度）傳感器採用HP206C高精度芯片，可檢測氣壓，高度計和溫度。它可以在300mbar~1200mbar範圍內廣泛測量壓力，在超高分辨率模式下具有0.01mbar（0.1m）的超高精度。該芯片僅接受1.8V至3.6V的輸入電壓。但是，隨著外部電路的增加，該模塊變得與3.3V和5V兼容。因此，它可以在Arduino / Seeeduino或Seeeduino Stalker上使用而無需修改。它被設計為通過I2C總線直接連接到微控制器。

特徵

• 數字雙線（I2C）接口
• 基於命令的閱讀，補償（可選）
• 可編程事件和中斷控制
• 全數據補償
• 寬大氣壓範圍
• 靈活的電源電壓範圍
• 超低功耗
• 海拔分辨率低至0.01米
• 包括溫度測量



出貨清單

• Grove – Barometer (High-Accuracy) x1
• Grove連接線 x1



Documents

• Grove – Barometer (High-Accuracy) wiki



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Barometer (High-Accuracy)

This Grove – Barometer (High-Accuracy) Sensor features a HP206C high-accuracy chip to detect barometric pressure ,Altimeter and temperature. It can widely measure pressure ranging from 300mbar~1200mbar, with a super high accuracy of 0.01mbar(0.1m) in ultra-high resolution mode.The chip only accepts 1.8V to 3.6V input voltage. However, with outer circuit added, this module becomes compatible with 3.3V and 5V. Therefore, it can be used on Arduino/Seeeduino or Seeeduino Stalker without modification.It is designed to be connected directly to a micro-controller via the I2C bus.

• Digital two wire (I2C) interface
• Command-based Reading, Compensated (Optional)
• Programmable Events and Interrupt Controls
• Full Data Compensation
• Wide barometric pressure range
• Flexible supply voltage range
• Ultra-low power consumption
• Altitude Resolution down to 0.01 meter
• Temperature measurement included
