Grove – 3-Axis Analog Accelerometer 3軸加速度計 seeed原廠

-20%

Grove – 3-Axis Analog Accelerometer 3軸加速度計 seeed原廠

NT$476 NT$381 未稅

ADXL335 是一款小巧,薄型,低功耗,完整的3軸加速度計,具有信號調理電壓輸出。 該產品可測量加速度,最小滿量程範圍為±3 g。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

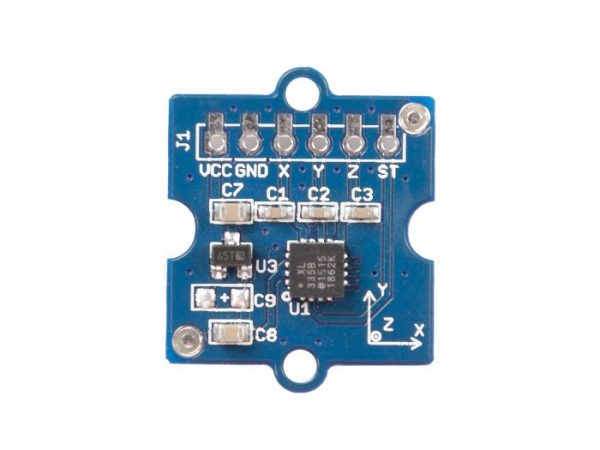

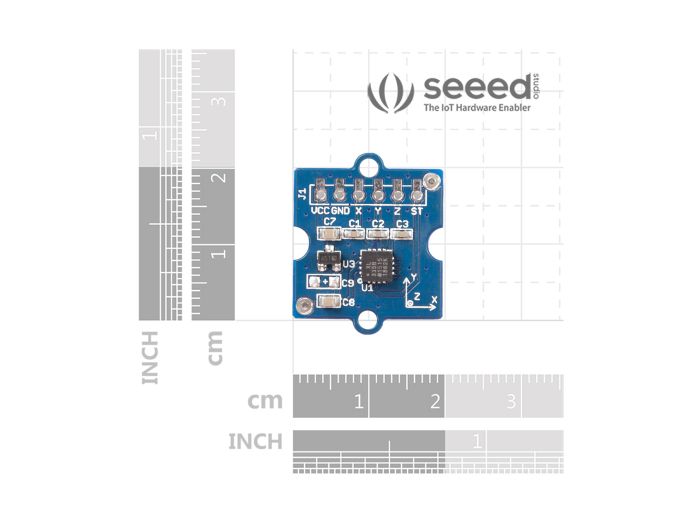

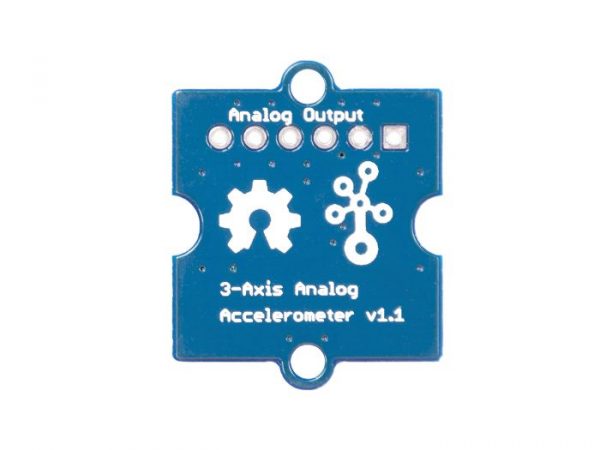

Grove – 3-Axis Analog Accelerometer(ADXL335) 3軸加速度計

ADXL335具有信號調節電壓輸出的輕薄,低功耗,完全功能的3軸加速度計。該產品以±3 g為最小量程測量加速度。該模塊被設計為分線板,因為ADXL335的信號是模擬(更多端口請求)。但板外型是Grove模塊化的,您可以像對待其他Grove模塊一樣方便地使用。傳感器組合3.3和5V電源,可用於標準Arduino設備和Seeeduino Stalker。

Grove - 3軸模擬加速度計

特徵

  • 3V至5V寬範圍直流電
  • Grove模塊
  • 小巧的包裝:4×4×1.45mm LFCSP(引腳架構芯片級封裝)
  • 低功率下3V時350μA(典型值)
  • 高靈敏度
  • 能承受10,000克震動打擊
  • 每個軸使用單個電容器進行BW調整
  • 符合RoHS / WEEE無鉛標準





出貨清單

  • Grove – 3-Axis Analog Accelerometer(ADXL335) x1





=========================================================



Grove – 3-Axis Analog Accelerometer (ADXL335)

The ADXL335 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g.
The module was designed as breakout board because ADXL335’s signal is analog( more ports requested ),but the board outline is grove module that you can fix it convenient like others grove. The sensor combine 3.3 and 5V power supply,can be used in standard arduino device and seeeduino stalker.
Features
  • Wide power range DC3V to 5V
  • Grove module
  • 3 axis sensing
  • Small, low-profile package: 4×4×1.45mm LFCSP
  • Low power 350µA at 3V (typical)
  • High sensitive
  • 10,000 g shock survival
  • BW adjustment with a single capacitor per axis
  • RoHS/WEEE lead-free compliant

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
