Grove – 1-Wire熱電偶放大器(MAX31850K)是一款熱電偶至數字轉換器,具有14位分辨率和冷端補償。該模塊設計用於與k型熱電偶配合使用。熱電偶的測量範圍比熱敏電阻大得多。例如,我們網站上的這款k型熱電偶的測量範圍為-50℃至+ 600℃。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

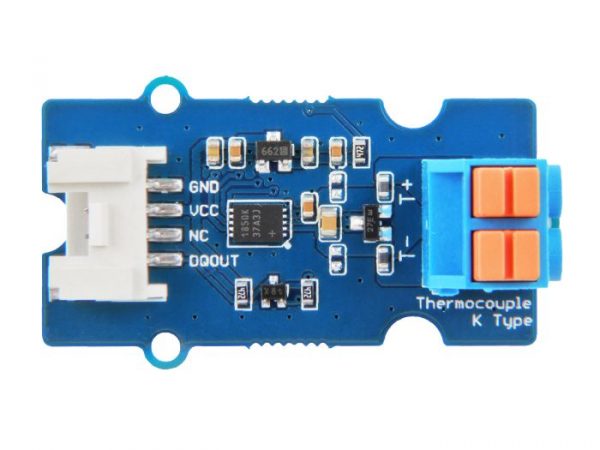

Grove – 1-Wire Thermocouple Amplifier (MAX31850K) 1線熱電偶放大器(MAX31850K)

Grove – 1-Wire熱電偶放大器(MAX31850K)是一款熱電偶至數字轉換器,具有14位分辨率和冷端補償。該模塊設計用於與k型熱電偶配合使用。熱電偶的測量範圍比熱敏電阻大得多。例如,我們網站上的這款k型熱電偶的測量範圍為-50℃至+ 600℃。

該模塊基於MAX31850K,集成了放大器,ADC和64位ROM。由於64位ROM,每個器件都有一個獨特的64位串行代碼,允許多個單元在同一條1-Wire總線上運行。因此,使用一個微控制器(主設備)來監控分佈在大面積上的許多熱電偶的溫度是很簡單的。

這個模塊不能單獨工作,必須搭配k型熱電偶(選購)。

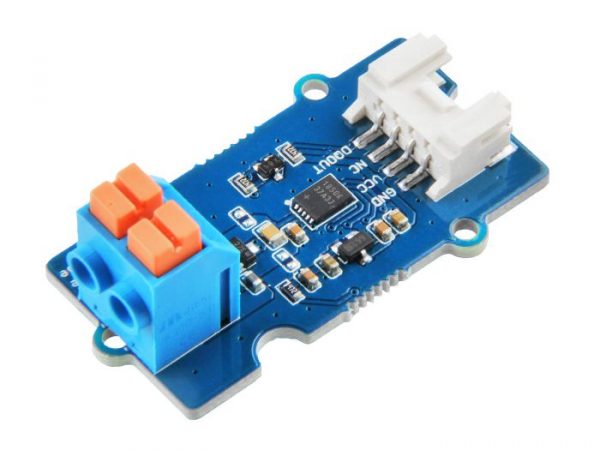

Grove - 1線熱電偶放大器(MAX31850K)



特徵

  • 集成冷端補償
  • 寬轉換範圍:允許讀數從-270℃到+ 1768℃
  • 14位,0.25℃分辨率
  • 除K型外,不適用於任何其他類型的熱電偶
  • 檢測熱電偶短路至GND或VDD
  • 檢測開路熱電偶



典型應用

  • 醫療
  • 電器
  • 工業
  • 暖通空調(暖氣,通風和空調)

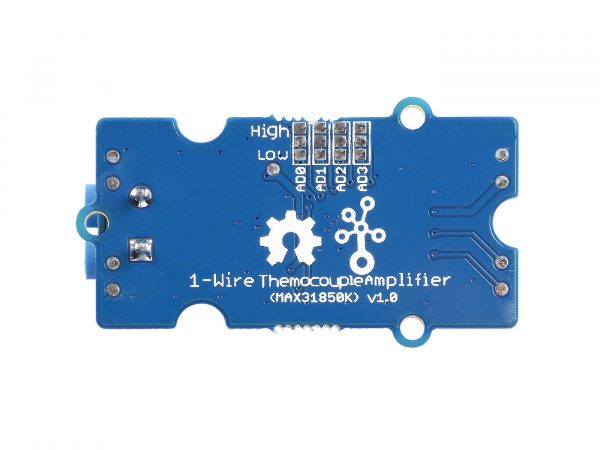

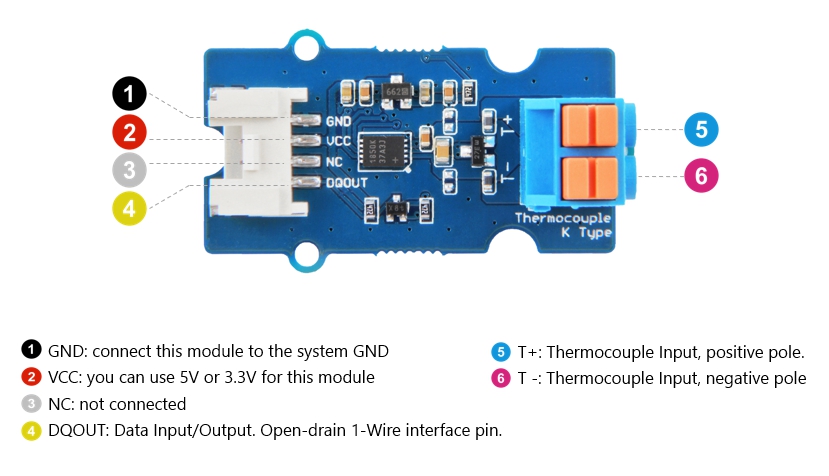

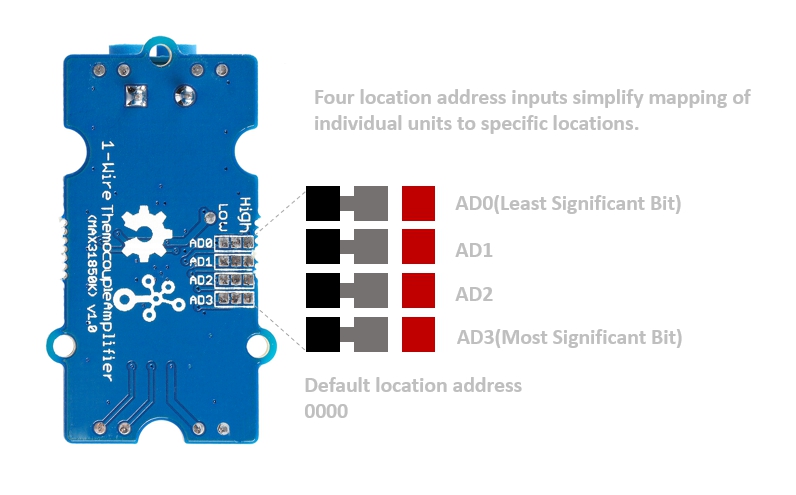

Pin Out

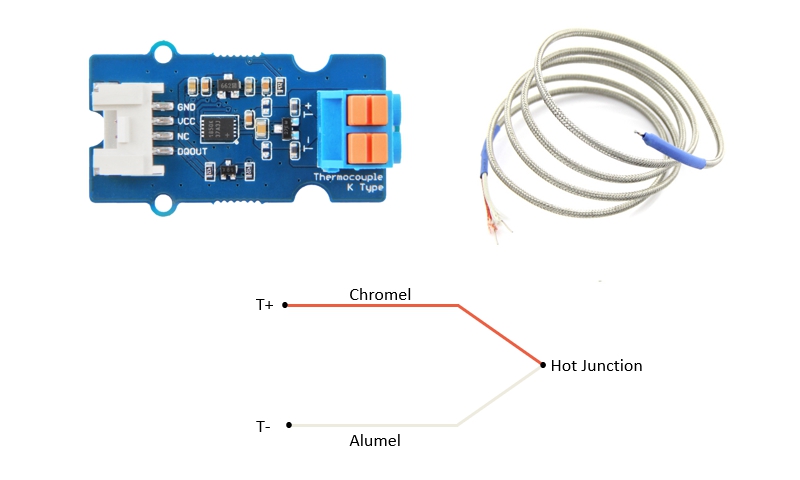

裝配圖

注意:

通常K型熱電偶的正極為紅色,負極為淺白色,但我們無法保證所有K型熱電偶都是這樣的。因此上圖僅適用於從我們網站購買的K型熱電偶。如果從其他地方獲得K型熱電偶,則需要使用其他方法來判斷正負極。



規格參數

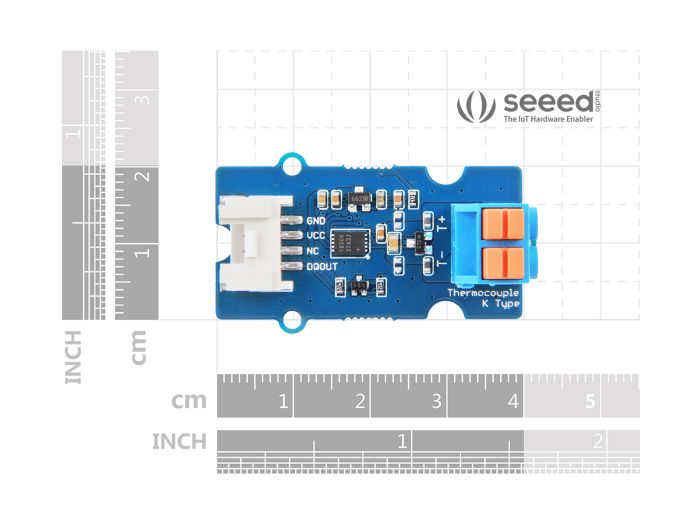

外形尺寸 40mm x20mm x18mm
重量 G.W 11.1g
電池 Exclude
工作電壓 3.3V / 5V
溫度分辨率 14 bits
溫度準確度 ± 2℃
工作溫度範圍 -40℃ to +125℃
存儲溫度範圍 -65℃ to +150℃
允許讀數範圍 -270℃ to +1768℃
Input Jack DIP Female Blue-2Pin
Output Interface 1-Wire bus


出貨清單

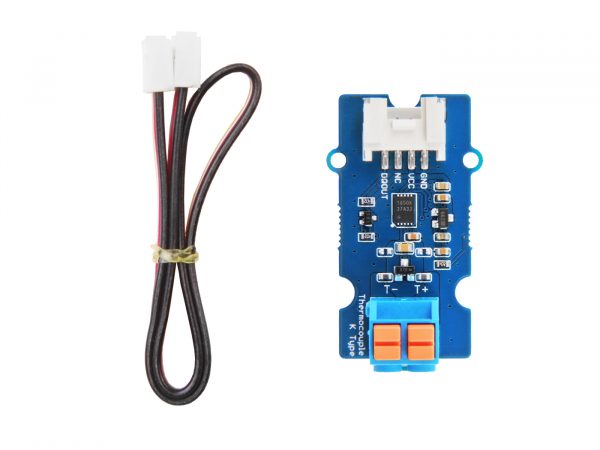

  • Grove – 1-Wire Themocouple Amplifier(MAX31850K)x1
  • Grove 連接線 x1





=========================================================



Grove – 1-Wire Thermocouple Amplifier (MAX31850K)

The Grove – 1-Wire Thermocouple Amplifier (MAX31850K) is a thermocouple-to-digital converters with 14-bit resolution and cold-junction compensation. This module is designed to be used in conjunction with a k-type thermocouple. The thermocouples have a much larger measurement range than thermistors. For example, this k-type thermocouple on our website has a measurement range of -50℃ to +600℃.

This module is based on the MAX31850K, which integrates amplifier, ADC and 64-bit ROM. Thanks to the 64-bit ROM, each device has a unique 64-bit serial code, which allows multiple units to function on the same 1-Wire bus. Therefore, it is simple to use one microcontroller (the master device) to monitor temperature from many thermocouples distributed over a large area.

Again, this module can’t work alone, it must work with a k-type thermocouple, if you do not have one, you can consider Thermocouple Temperature Sensor K Type-1M in our bazaar.

Features

– Integrated Cold-Junction Compensation

– Wide Conversion Range: allow readings from -270℃ to +1768℃

– 14-Bit, 0.25℃ Resolution

– Will not work with any other kind of thermocouple except K type

– Detects Thermocouple Shorts to GND or VDD

– Detects Open Thermocouple

Typical Applications

– Medical

– Appliances

– Industrial

– HVAC(Heating, Ventilation and Air Conditioning)



Attention:

Usually the positive pole of the K-type thermocouple is red and the negative is light white, but we can’t guarantee that all K-type thermocouples are like this. So the above diagram is only for the K-type thermocouple purchased from our website. If your K-type thermocouple is obtained from other places, you need to use other methods to judge the positive and negative.



Technical details
Dimensions 40mm x20mm x18mm
Weight G.W 11.1g
Battery Exclude
Operating Voltage 3.3V / 5V
Temperature Resolution 14 bits
Temperature Accuracy ± 2℃
Operating Temperature Range -40℃ to +125℃
Storage Temperature Range -65℃ to +150℃
Allow Readings Range -270℃ to +1768℃
Input Jack DIP Female Blue-2Pin
Output Interface 1-Wire bus
