Gravity: UART OBLOQ – IoT Module 物聯網模組 DFRobot原廠

NT$524 NT$476 未稅

如果您仍然不知道如何玩物聯網(IoT), DFRobot UART OBLOQ IoT Module 模塊將是您連接物聯網世界的理想選擇。物聯網是以用戶體驗為核心。它集嵌入式系統技術,移動技術和網絡技術於一體,構成了智能係統。它統一了硬件,軟件和網絡服務,使它們成為一個整體。


貨號: TEL0118(A8-19) 分類: 標籤: , , , ,
  • 商品說明

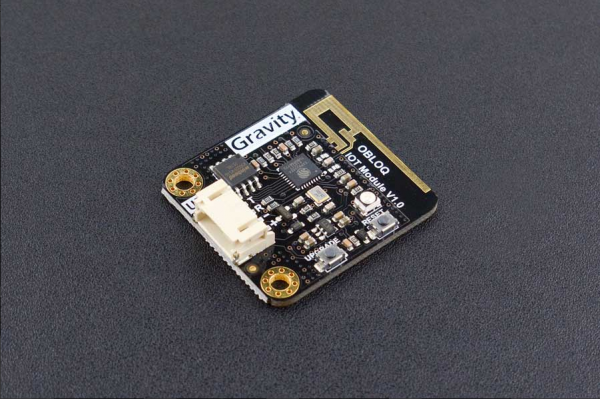

Gravity: UART OBLOQ – IoT Module 物聯網模組 DFRobot原廠

如果您仍然不知道如何玩物聯網(IoT), DFRobot UART OBLOQ IoT Module 模塊將是您連接物聯網世界的理想選擇。
UART OBLOQ 模塊是 WiFi 到串行設備。它面向非專業開發人員,支持標準的MQTT協議物聯網服務,如Microsoft Azure IoT。通過 OBLOQ 模塊,您可以快速構建物聯網應用程序,而無需具備物聯網的複雜背景知識。通過這種方式,可以真正專注於在物聯網上創建有趣的東西。

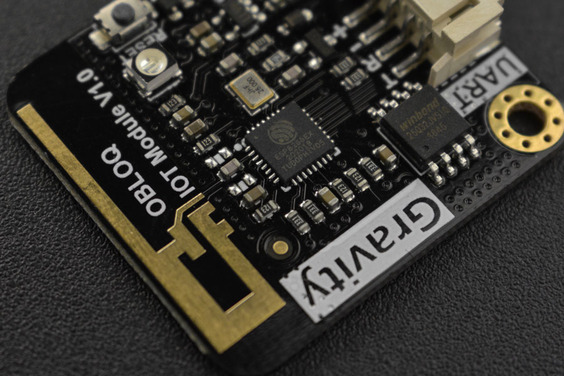

OBLOQ 基於 ESP8266 WiFi 芯片設計,體積小巧,接口簡單,即插即用,在3.3V~5V控制系統下運行穩定。
Gravity: UART OBLOQ – IoT Module (Microsoft Azure)


與 UART OBLOQ – IoT Module 物聯網模組 連接圖

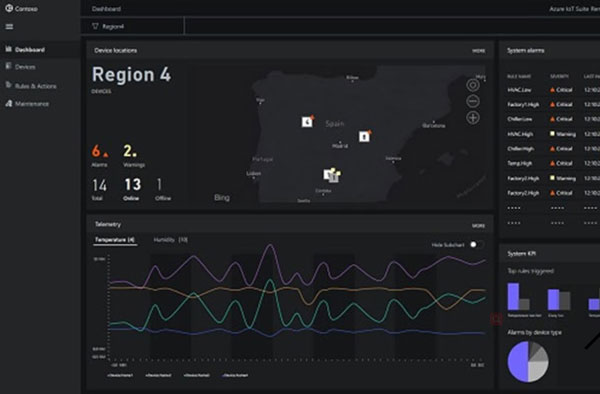

Microsoft Azure IoT
Microsoft Azure是一個公有云平台,它使企業能夠在Internet上運行自己的應用程序。借助Microsoft Azure,組織可以跨多個數據中心快速開發,部署和管理應用程序。



  • 內置低功耗32位CPU:可用作應用處理器
  • 內置協議:TCP / IP堆棧
  • 加密類型:WPA WPA2 / WPA2-PSK
  • 支持與標準MQTT協議和TTL串行端口到無線應用的連接



  • 工作電壓:3.3-5V
  • 供電電壓:3.3~5.5V
  • 接口速率:9600 bps
  • 無線頻率:2.4GHz
  • 接口類型:重力UART 4PIN
  • 無線模式:IEEE802.11b / g / n
  • SRAM:160KB
  • 外置Flash:4MB
  • 支持低功耗:<240mA

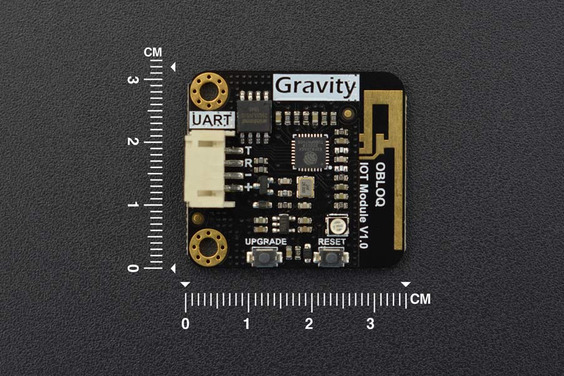

  • 尺寸:35mm * 32mm / 1.38inch * 1.26inch
  • 重量:16克

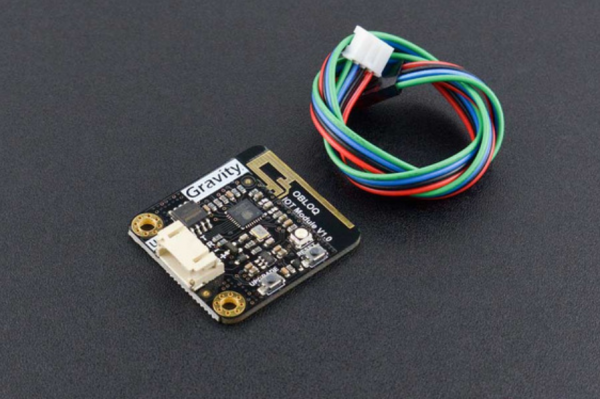

  • Gravity: UART OBLOQ – IoT Module 物聯網模組x1
  • Gravity: 4Pin感測器線x1






Gravity: UART OBLOQ – IoT Module (Microsoft Azure)

If you still don’t know how to play Internet of Things (IoT), the DFRobot OBLOQ module will be ideal for connecting you to the IoT world.
The core of IoT is user experience. It integrates embedded system technology, mobile technology and network technology all together, making up a smart system. It unifies hardware, software and network services, makes them become a whole. You can check these Obloq Tutorials for a initail start.
Gravity: UART OBLOQ module is a WiFi to Serial device. It faces to non-professional developers, supports standard MQTT protocol IoT service such as Microsoft Azure IoT. By OBLOQ module, you can quickly build the IoT applications without having a complex background knowledge of IoT. In this way, makers can really focus on the purpose of creating interesting things on the IoT.
OBLOQ is designed based on ESP8266 WiFi chip, it has compact size, low price, simple interface, plug and play feature, and it works stably under the 3.3V ~ 5V control system.

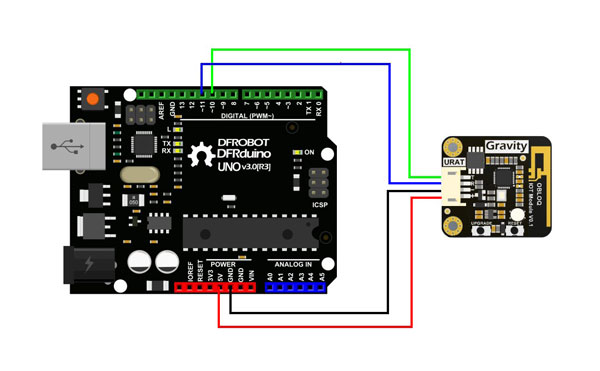

Below is the connection diagram of Arduino UNO and OBLOQ.


  • Built-in low-power 32-bit CPU: Can be used as an application processor
  • Built-in protocol: TCP / IP stack
  • Encryption type: WPA WPA2 / WPA2-PSK
  • Supports connections to standard MQTT protocols and TTL serial ports to wireless applications


  • Operating Voltage: 3.3-5V
  • Supply Voltage: 3.3 ~ 5.5V
  • Baud rate: 9600 bps
  • Wireless Frequency: 2.4GHz
  • Interface Type: Gravity UART 4PIN
  • Wireless mode: IEEE802.11b / g / n
  • SRAM: 160KB
  • External Flash: 4MB
  • Supports low power consumption: <240mA

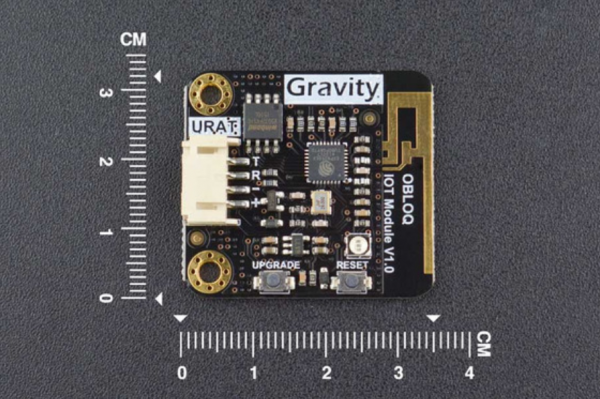

  • Dimension: 35mm * 32mm / 1.38inch * 1.26inch
  • Weight: 16g



  • Gravity: UART OBLOQ – IoT Module (Microsoft Azure) x1
  • Gravity 4Pin IIC/I2C/UART Sensor Cable x1
