Gravity: 模擬TDS 水質硬度 水質潔淨度檢測 總溶解固體 DFRobot原廠

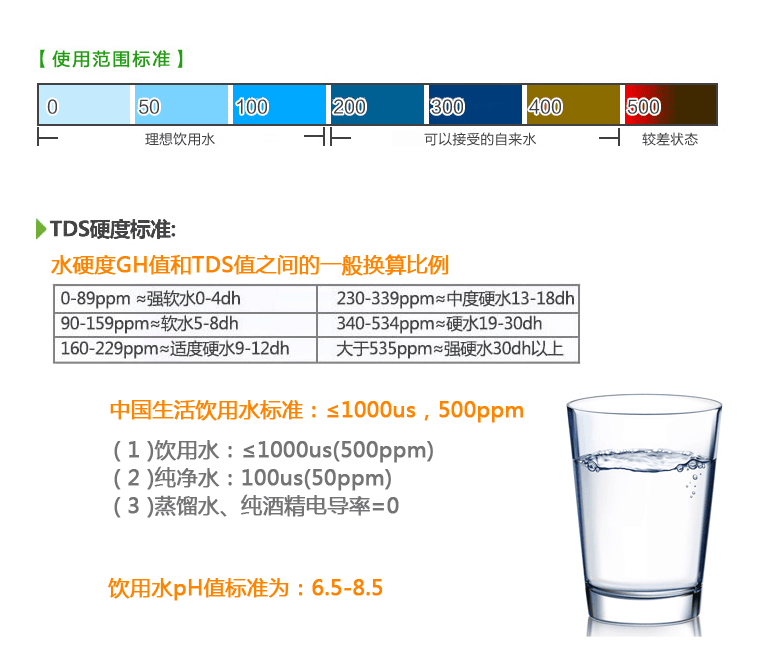

這是一款arduino相容的TDS感測器，用於測量水的TDS值，TDS數值可反應水的潔淨程度，可應用於生活用水、水培等領域的 水質硬度 水質潔淨度檢測 。TDS (Total Dissolved Solids)，中文名：總溶解固體，又稱溶解性固體總量，表明1升水中溶有多少毫克溶解性固體。一般來說，TDS值越高，表示水中含有的溶解物越多，水就越不潔淨。因此，TDS值的大小，可作為反映水的潔淨程度的依據之一。

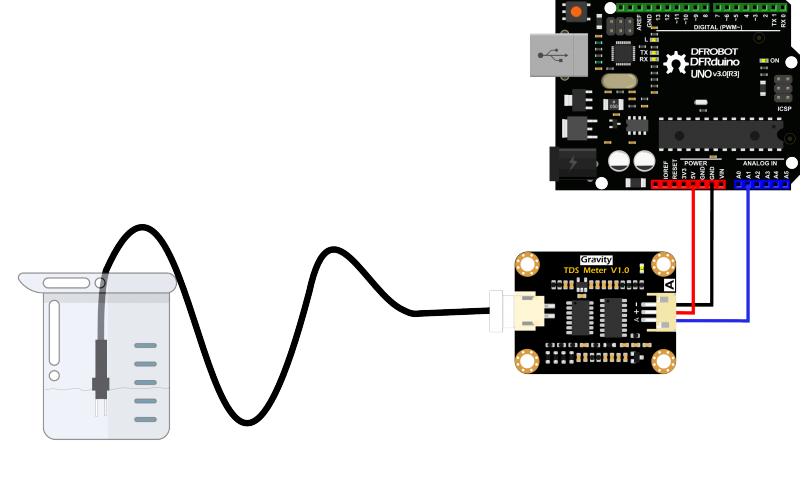

Arduino TDS感測器連接示意圖

該產品專為arduino設計，即插即用，使用簡單方便。3.3~5.5V的寬電壓供電，0~2.3V的類比信號輸出，使得這款產品相容5V、3.3V控制系統，能非常方便的接到現成的控制系統中使用。

測量用的激勵源採用交流信號，可有效防止探頭極化，延長探頭壽命的同時，也增加了輸出信號的穩定性。TDS探頭為防水探頭，可長期浸入水中測量。

注意：

TDS探頭不能用於55℃以上的水中。

TDS探頭放置位置不能太靠近容器邊緣，否則會影響信號數值。

TDS探頭頭部與導線為防水，可浸入水中，但連線介面處與信號轉接板不防水，請注意使用。

特徵

• 寬電壓工作：3.3~5.5V
• 0~2.3V類比信號輸出，相容5V、3.3V兩種控制系統
• 激勵源為交流信號，有效防止探頭極化
• 防水探頭，可長期浸入水中測量
• Arduino相容，Gravity介面，連線簡單，即插即用，無需焊接

規格參數

• 信號轉接板
  • 輸入電壓：3~5.5V
  • 輸出信號：0~2.3V
  • 工作電流： 3~6mA
  • TDS測量範圍：0~1000ppm
  • TDS測量精度：±10% F.S.（25℃）

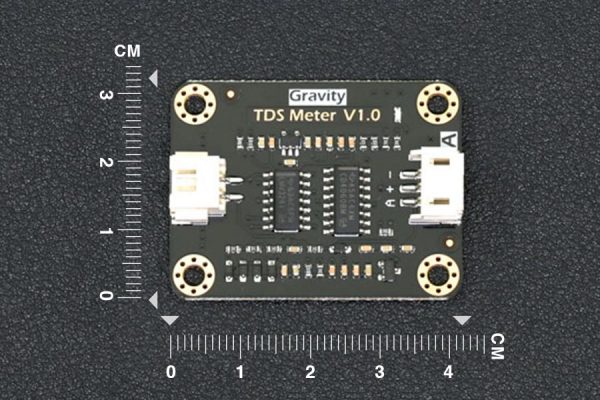

  • 尺寸：42*32mm
  • 模組介面：0-3P
  • 電極介面：54-2P
• TDS探頭
  • 探針數量：2
  • 總體長度：83cm
  • 連線介面：54-2P
  • 顏色：黑色
  • 其他：防水探頭

出貨清單

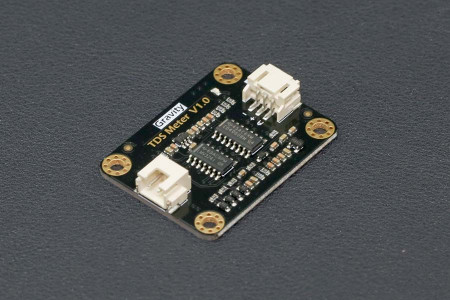

• TDS信號轉接板 x1

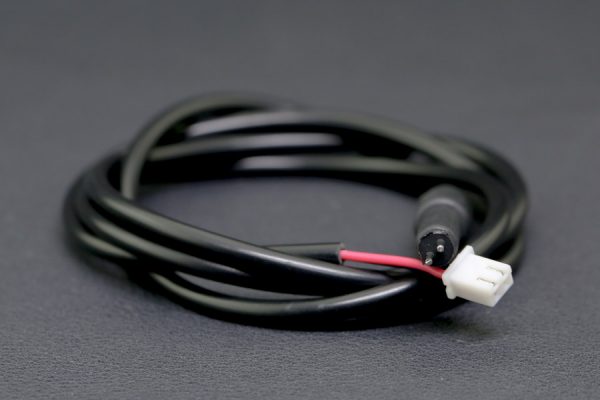

• 防水TDS探頭 x1

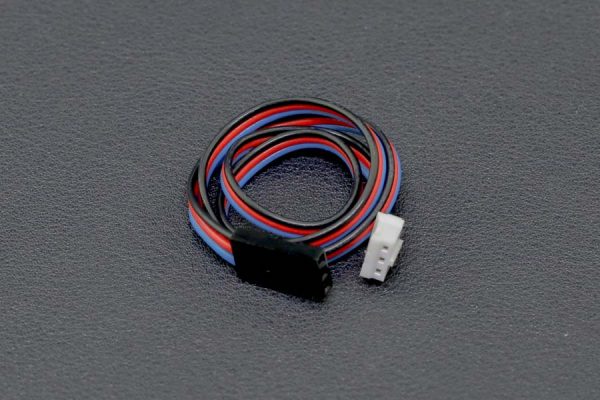

• Gravity 3PIN模擬感測器線 x1

Documents

• Gravity: Analog TDS Sensor wiki
• Product wiki

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Gravity: Analog TDS Sensor/Meter for Arduino

This is an Arduino-compatible TDS sensor/Meter Kit for measuring TDS value of the water, to reflect the cleanliness of the water. It can be applied to domestic water, hydroponic and other fields of water quality testing. You may also check Liquid Sensor Selection Guide to get better familar with our liquid sensor series.

TDS (Total Dissolved Solids) indicates that how many milligrams of soluble solids dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is. Therefore, the TDS value can be used as one of the references for reflecting the cleanliness of water.

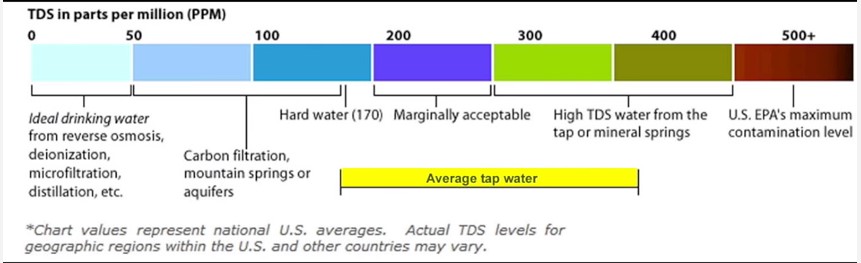

(Cited from Google)

TDS pen is a widely used equipment to measure TDS value. The price is affordable, and it is easy to use, but it is not able to transmit data to the control system for online monitoring to do some water quality analysis. The professional instrument has high accuracy and can send data to the control system, but the price is expensive for the ordinary people. To this end, we have launched an analog TDS sensor kit which is compatible with Arduino, plug and play, easy to use. Matching with Arduino controller, you can build a TDS detector easily to measure the TDS value of liquid.
This product supports 3.3 ~ 5.5V wide voltage input, and 0 ~ 2.3V analog voltage output, which makes it compatible with 5V or 3.3V control system or board. The excitation source is AC signal, which can effectively prevent the probe from polarization and prolong the life of the probe, meanwhile, increase the stability of the output signal. The TDS probe is waterproof, it can be immersed in water for long time measurement.
