Force Sensitive Resistor – Long 電阻式 壓力 感測器 SparkFun原廠

NT$743 NT$724 未稅

這個非常長的電阻式壓力感測器 – 超過2英尺 – 具有0.25×24“的感應面積。

尚有庫存

貨號： SEN-09674(D4-1) 分類： , , , 標籤： , ,
  • 商品說明

商品說明

Force Sensitive Resistor – Long 電阻式 壓力 感測器

這個非常長的 電阻式 壓力感測  – 超過2英尺 – 具有0.25×24“的感應面積。來自Interlink Electronics的這個FSR將根據施加到感測區域的壓力而改變其電阻值，力越大， 當FSR沒有施加壓力時，其電阻將大於1MΩ，這個FSR可以感應100g-10kg範圍內的施加力。

兩個銷從傳感器底部延伸出來，間距為0.1英寸，使麵包板更加友好。傳感區域的另一側有一個剝離並粘住的橡膠襯墊，用於安裝FSR。

這些傳感器安裝簡單，傳感壓力大，但它們不是非常準確。 用它們來檢測它是否被擠壓，但你可能不想把它用作比例尺。

力敏電阻 - 長



  • 感應面積：0.2×23.985“



Documents



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

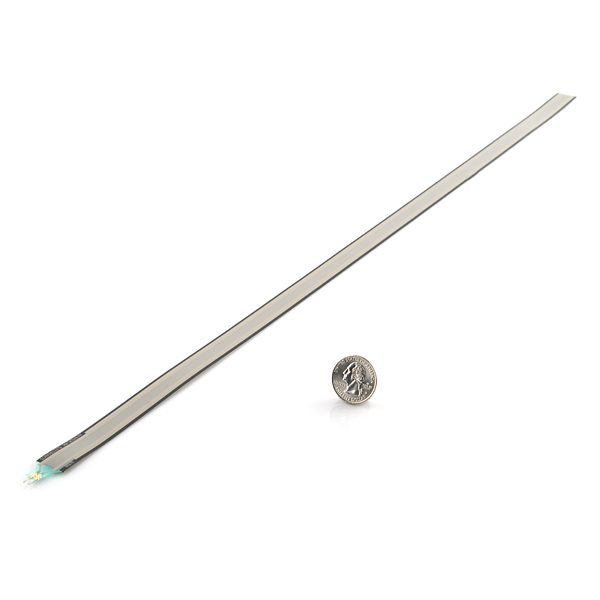

This very long force sensitive resistor – over 2 feet – has a sensing area of 0.25×24″. This FSR from Interlink Electronics will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

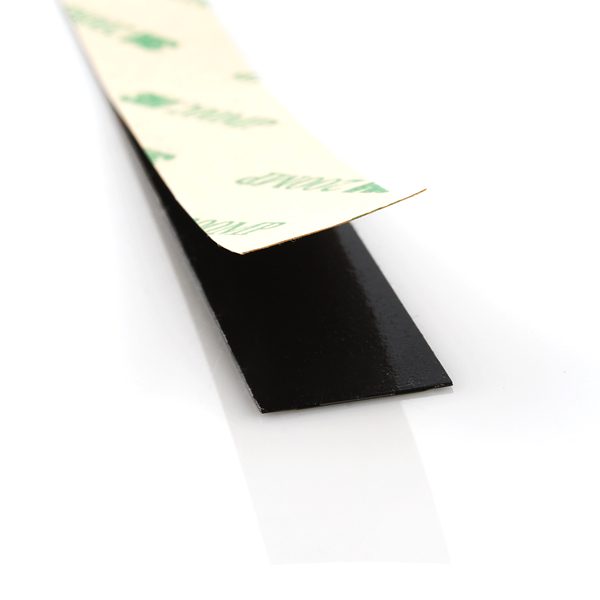

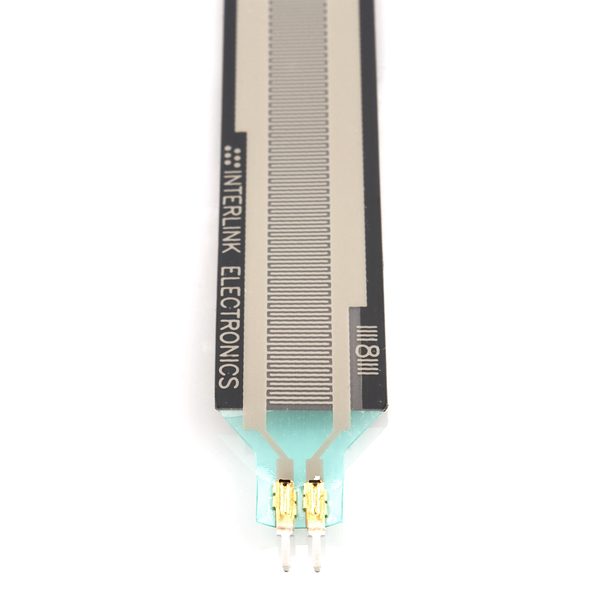

Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread board friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.

These sensors are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale.

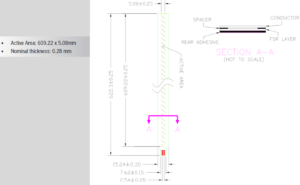

  • Sensing area: 0.2×23.985″
