FlexiForce 壓力感測器 – 100磅 SparkFun原廠

NT$810 NT$743 未稅

尚有庫存

貨號： SEN-08685(C4-15) 分類： , , , 標籤： , , , ,
  • 商品說明

商品說明

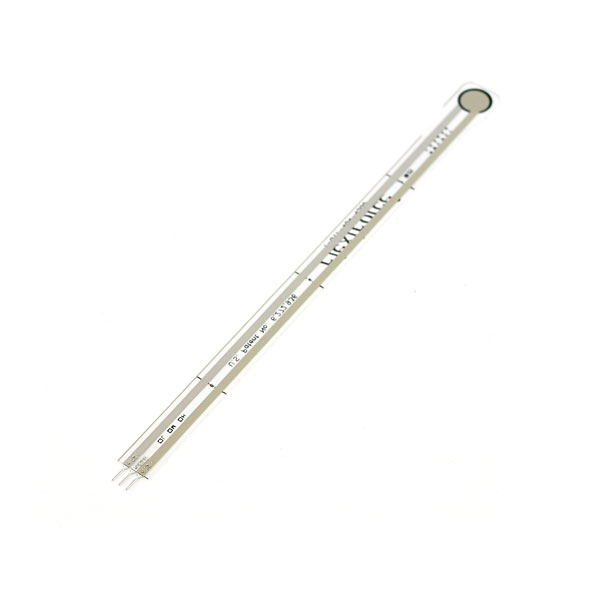

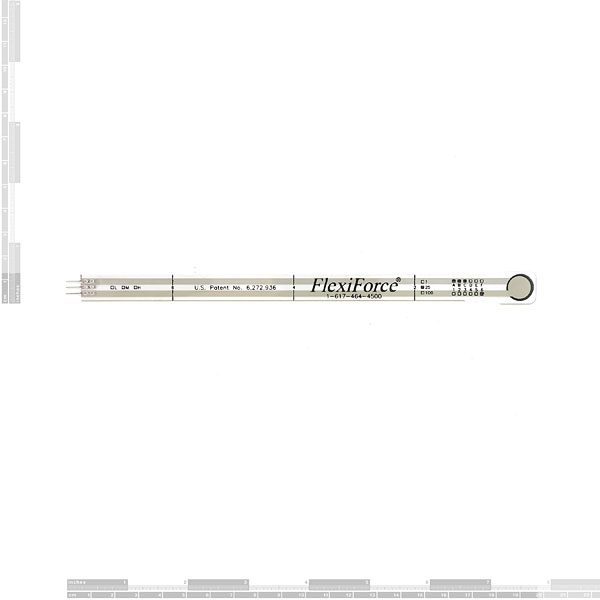

FlexiForce 壓力感測器 – 100磅

這是Tekscan的壓阻力感測器。 你按下的越硬，感測器的阻力就越低。 用力按壓，電阻從無限變到〜300k。 感測器本身薄且靈活，但彎曲時阻力不會改變。 只有當壓力施加到感測器末端的圓形區域時，電阻才會改變。 用作存在感測器（有人站立），重量感測器，壓力感測器（衝擊測試）等

整體長度約為8.5英寸，傳感器配有0.1英寸，加強型，麵包板友好型連接器。

這種傳感器有三種規格。 該傳感器的範圍為兆歐範圍內的0到100磅的壓力。

FlexiForce Pressure Sensor - 100lbs.



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

The overall length is about 8.5″. Sensor comes with 0.1″ spaced, reinforced, breadboard friendly connector.

This sensor comes in three flavors. This sensor ranges from 0 to 100lbs of pressure in the mega-ohm range.
